Simple Thematic Mapping

Previous pageReturn to chapter overviewNext page

If the Simple Thematic Mapping element was configured correctly on the appropriate ArcGIS layer, the function can be used via the table of contents in the project center of the WebOffice core client. Therefor, open the respective WebOffice 10.8 SP2 project within the WebOffice core client. If the configuration of this functionality was successful, an appropriate symbol for the Simple Thematic Mapping functionality should be visible in front of the name of the respective ArcGIS layer in the table of contents:

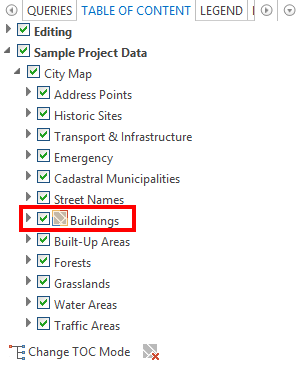

Symbol for the "Simple Thematic Mapping" functionality within the table of contents

Symbol for the "Simple Thematic Mapping" functionality within the table of contents





By clicking on the appropriate symbol, a context menu with the following possibilities of interactions opens:

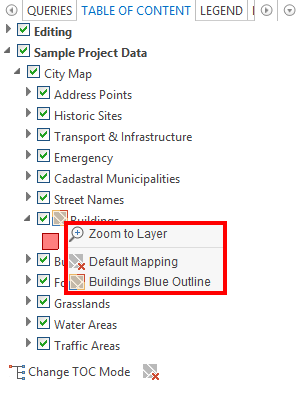

Context menu of the "Simple Thematic Mapping" functionality within the table of contents

Context menu of the "Simple Thematic Mapping" functionality within the table of contents





Buttons

Description

core_simple_thematic_mapping3

Zoom to the full extent of the layer.

core_simple_thematic_mapping4

Switch to default mapping.

Note: Please consider the instructions of chapter Simple Thematic Mapping for more details about the configuration of this function.

core_simple_thematic_mapping5

Switch to a configured mapping.

Note: Please consider the instructions of chapter Simple Thematic Mapping for more details about the configuration of this function.

Context menu of the "Simple thematic mapping" functionality





Example
Initially, the default mapping is used after opening the appropriate WebOffice 10.8 SP2 project in the WebOffice core client. The respective symbology of this default mapping is also visible within the table of contents:


Example: Default mapping within the WebOffice core client

Example: Default mapping within the WebOffice core client





After choosing another configured mapping within the context menu of the Simple Thematic Mapping functionality, the map window will be updated immediately. You can also see the respective symbology and the name of this configured mapping within the table of contents:

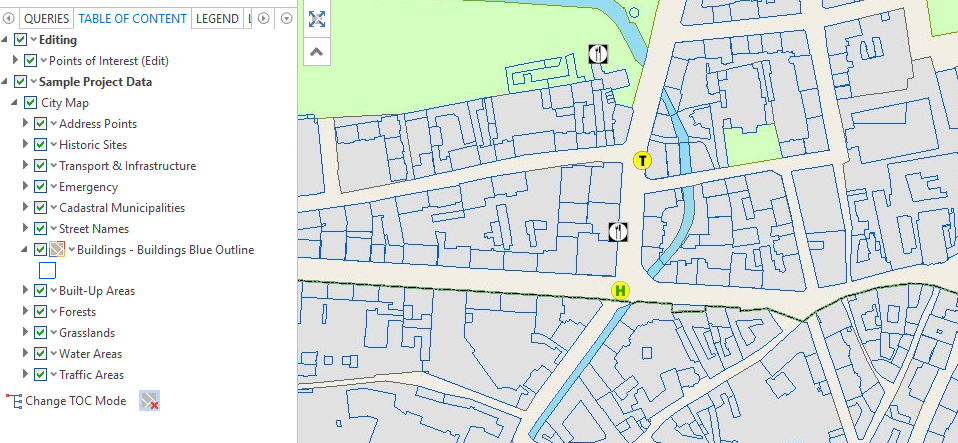

Example: Configured mapping within the WebOffice core client

Example: Configured mapping within the WebOffice core client





If you are now choosing Default Mapping within the context menu of the Simple Thematic Mapping functionality, the original symbology will be presented.



Note: Please have a look at chapter Simple Thematic Mapping for more details about the preconditions and the configuration of the Simple Thematic Mapping functionality within the WebOffice author.
