GeoOffice ePaper designer > Dictionary - Features > Description of the Actions > New Element > New Connection & New Data Source

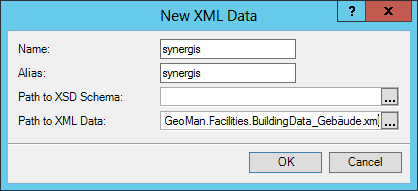

The XML Data connection is used to import XML data and XML schemes. Define a name for the connection and specify the path to the desired .xml or .xsd file.

insert XML data

After establishing the connection, the tables are not displayed. It is first necessary to synchronize the data. This is done in the menu Actions -> Synchronize.

Actions - Synchronize

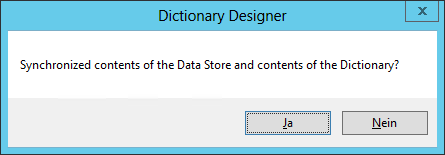

Confirm the synchronization.

xml connection3

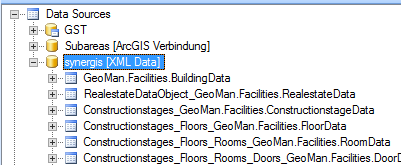

The data are synchronized. The tables are listed correctly and are now available for the design process.

xml connection4
