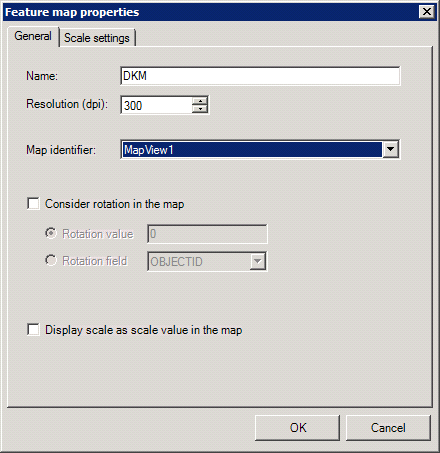

Feature Map Properties – General
Resolution |
Defines the resolution for the output map. The default value is set to 300 dpi. |
Map identifier |
For the feature map DKM the map view MapView1 is chosen. |
Map Rotation |
Defines the rotation of the map. Supported range: 0 to 360 degrees. |
Add Scale value |
The scale can be inserted as text into the map. It is displayed in the bottom right corner of the map. |
