Category Behavior

Can grow

A component can grow to display for instance a text too long.

Can shrink

A component can shrink to adjust it in size to the content.

Interaction

Hyperlink

Here a hyperlink (a file) can be assigned to a component. The assignment is done always for the active component of the page. Click the line hyperlink.

On the right side in the line, the text editor is opened with .

Text Editor

Here for instance a data column is selected that contains the path for an image file as value.

If you click on the component in the preview, the file is displayed.

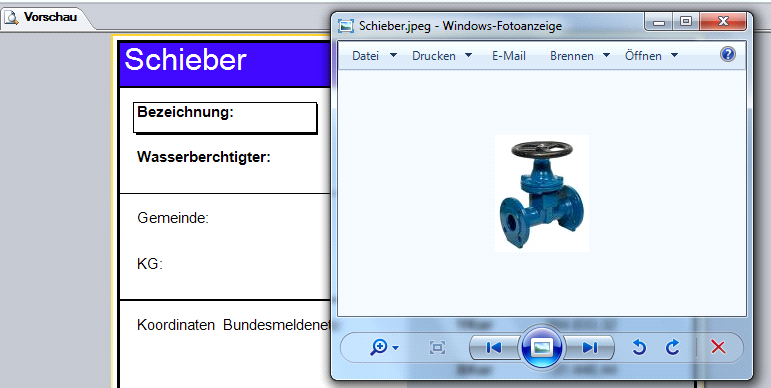

Component with hyperlink

Tool Tip:

Here a tool tip can be assigned to a component. The assignment is done always for the active component of the page.

On the right side in the line, the text editor is opened with .

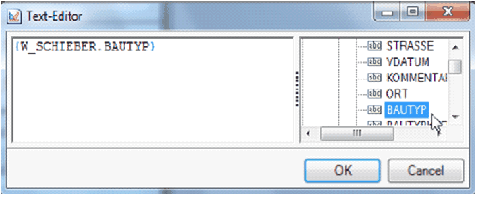

Text Editor

Here for instance a data column is selected that contains information as value. If you move the mouse cursor towards the component in the preview, the information is displayed.

Tool Type (Design type – Slider)

Print

Determines whether a component is printed.

Print on

Determines in what area of the report a component is printed. You can select from:
