Navigation:  Installation & General Information > Installation > WebOffice author standalone (Administrative Computer) >

WebOffice author standalone setup

 Previous pageReturn to chapter overviewNext page

The WebOffice author standalone installation files can be found here: https://resources.weboffice.vertigis.com/WebOffice107/. After the download, you have to unzip the folder and choose your language (german or english). Please be aware to click on "Install ArcMap Connector Extension" and "Install ArcGIS Pro Connector Add-In" during the installation. After the setup it is necessary to connect WebOffice author standalone with ArcMap and/or ArcGIS Pro. Finally you can configure the application configuration and work with the WebOffice author standalone. Furthermore it is possible to install the SynerGIS Printing Layout Designer via the provided checkbox.

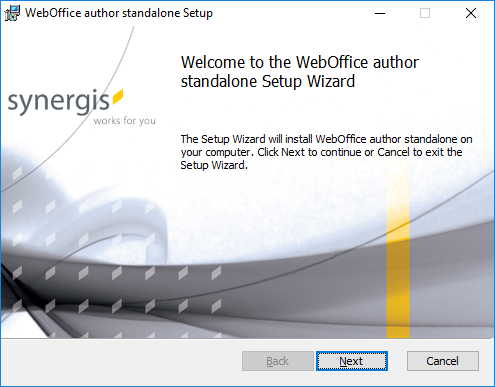

woas_setup_01

WebOffice author standalone Setup: step 1

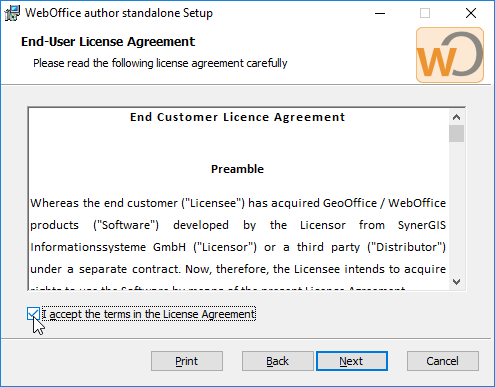

woas_setup_02

WebOffice author standalone Setup: step 2

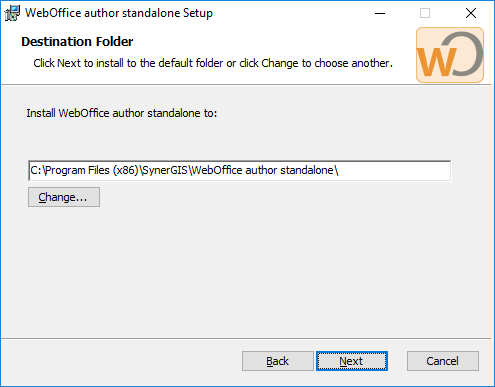

woas_setup_03

WebOffice author standalone Setup: step 3

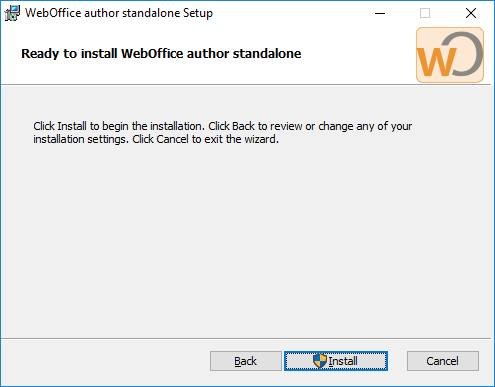

woas_setup_04

WebOffice author standalone Setup: step 4

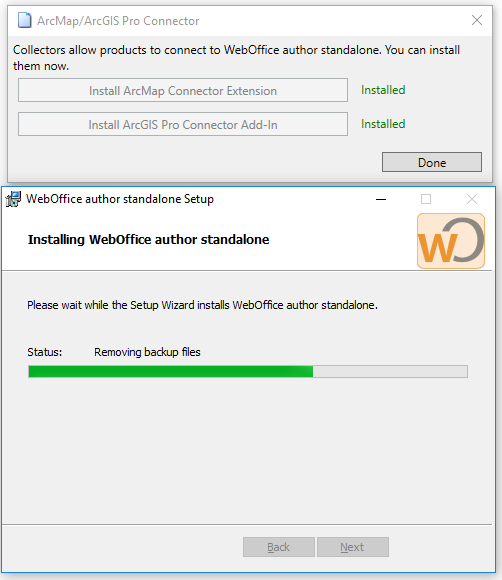

woas_setup_05

WebOffice author standalone Setup: step 5

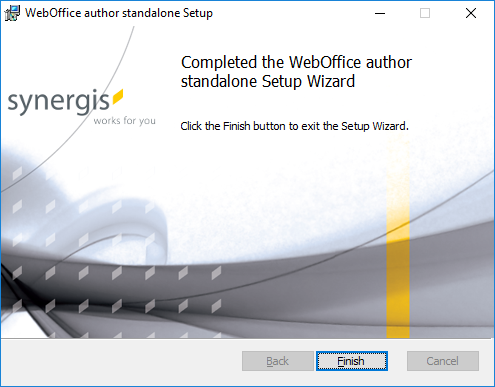

woas_setup_06

WebOffice author standalone Setup: step 6



Note: Don't forget to click "Install ArcMap Connector Extension" and "Install ArcGIS Pro Connector Add-In", so that WebOffice author standalone can be connected with ArcMap and ArcGIS Pro!

Note: The installation setup of WebOffice author standalone creates the rule "WebOffice author standalone UDP (Discovery)" in the Windows firewall. The UDP port 31658 for 239.255.255.250 is released for a service discovery.
