Raster Info |

|
Raster Info |
|
The Raster Info tool enables the user to query for raster values. It is possible to retrieve pixel values from 1 band raster layers by clicking into the map after having selected a specific raster layer. The Rasterinfo Tool must be configured in the Tool list.
Note: This tool supports the querying of raster information of external services. The query of external raster services is currently only supported for the tool Raster Info. The external raster service have to be a MapServer service.

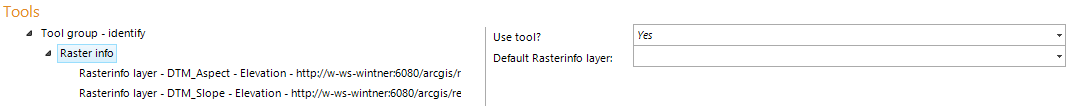

Raster info tool configuration
Property |
Description |
Use tool? |
Controls whether this tool is available in the WebOffice 10.7 SP1 clients or not. |
Default Rasterinfo layer |
Specifies the raster info layer that will be selected by default. |
Raster info tool properties

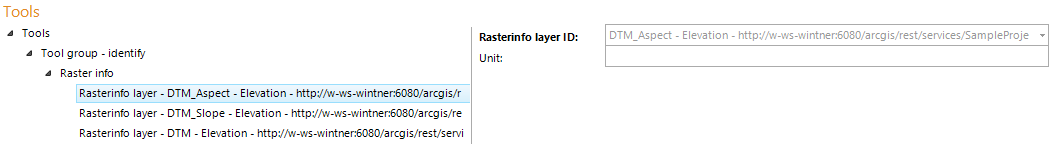

Raster info layer configuration
Property |
Description |
Rasterinfo Layer ID |
Unique ID of layer to be used for Rasterinfo tool Note: Specify a Layer Name in order to have an alias name displayed in the list of rasterinfo layers. |
Unit |
Specifies the unit of the retrieved pixel value. The unit is displayed in the user interface. |
Raster info layer properties
Note: Only layers of type raster will be considered for this tool.
Note: See chapter Raster Info for the tool appearance in the WebOffice html client.
Note: If you have problems with the tool see also chapter Rasterinfo.
