The Markup tool provides functionality to make map notes, which can be used for easy exchange of drawing sketches via E-Mail. Additionally, it is possible to configure Markup styles which will later be available in the WebOffice html client.

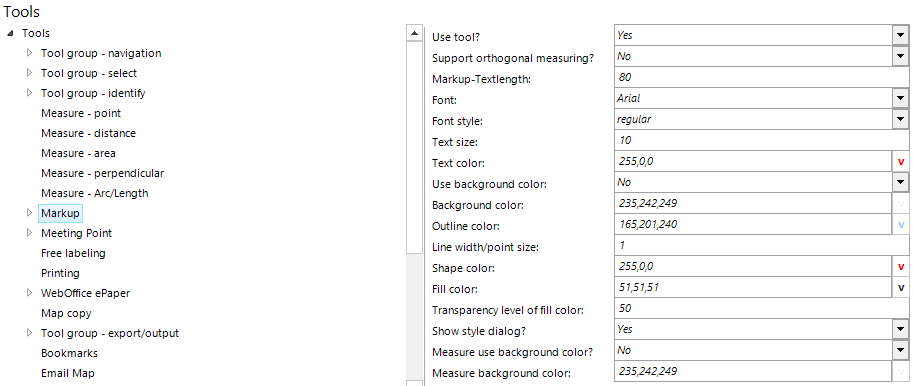

Markup tool configuration
Property |
Description |
Use tool? |
Specify whether this tool is available in the WebOffice 10.7 SP1 clients (Yes) or not (No). |
Support orthogonal measuring? |
Specify whether three points for orientation help and support of perpendicular measuring with the measure distance tool is used (Yes) or not (No). Note: See chapter Measure Distance for appearance in WebOffice html client. |
Markup text length |
Maximum markup text length. |
Font |
Font for markup text. |
Font style |
Font style for markup text. |
Text size |
Default text size (font size). |
Text color |
Color of markup text. |
Use background color? |
Use text background color as default (Yes) or not (No). |
Background color |
Text background color. |
Outline color |
Outline color of text background box. |
Line width/ point size |
Line width respectively point size in pixels. |
Shape color |
Color of point/line/area freehand shape. |
Fill color |
Fill color of area shape. |
Transparency level of fill color |
Transparency level of fill color [0..100%]. |
Show style dialog |
Specifies whether the style dialog is visible (Yes) in the tool form or not (No). |
Measure use background color? |
Use text background color for display of measured values (Yes/No) |
Measure background color |
Text background color for display of measured values |
Markup tool properties
Note: See chapter Markup Style for details about the configuration of markup styles.
Note: See chapters Measure/Markup and Markup for details about the tool appearance in the WebOffice html client.
Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.
Note: See chapter Draw for more details about the measure/drawing tools in the WebOffice core client.
