Export Profile Raster Data |

|
Export Profile Raster Data |
|
You may also configure an Export Profile Raster Data element to export files in output formats like GeoTIFF. Using this function you are able to export the current map extent with the default resolution (96dpi).
Note: Map rotation for GeoTIFF export is not supported yet.

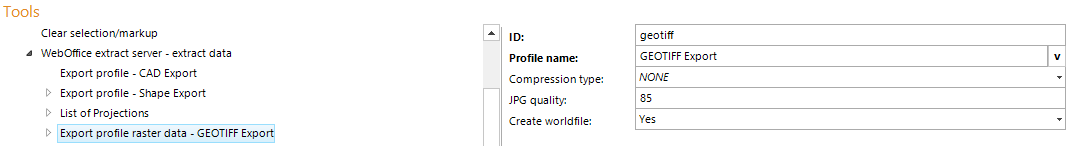

Export profile raster data configuration
Property |
Description |
ID |
Technical profile ID that can be defined here. |
Profile name |
Name of extraction profile shown in the GUI of the WebOffice 10.7 SP1 clients. |
Compression type |
Available compression types: •NONE: no data compression •JPG: lossy data compression •LZW: lossless data compression |
JPG quality |
JPG quality used for compression |
Create world file |
Create a plain text computer data file used by the GIS to georeference raster map images. Note: Set this parameter to "Yes" if you need a separated world file. Also when set to "No", GeoTIFF contains the geographical information needed to georeference the raster data. |
Export profile raster data properties
Also configure the specific Export file output format - GEOTIFF as a subelement of the export profile raster data.

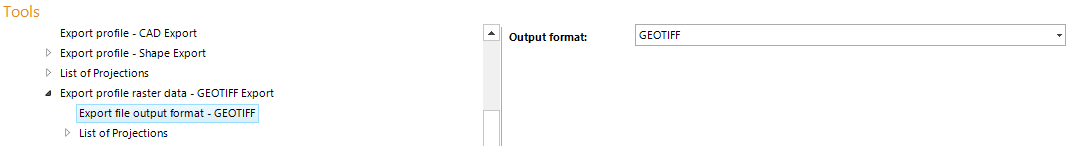

Export file output format configuration
It is also possible to configure a list of (target) projections for the GeoTIFF that will be available to select from in the WebOffice 10.7 SP1 clients.
Note: See chapter List of Projections for details.
Note: You need to activate the WebOffice extract server extension on your SynOutputService (or the specific ArcGIS Server Extract Service) as described in Activate SOE on a Map Service.
Note: In WebOffice usermanagement, be sure that you have configured an Application Profile that includes the WebOffice - Export (Standard) Application Role and assigned to a group.
Note: See chapter Export Data for information about the WebOffice extract server functionality in the WebOffice html client.
