Navigation:  WebOffice author (ArcMap extension) > Edit Menu > External Category > Geolocators > Search Extent

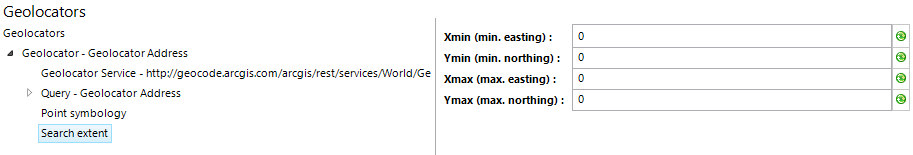

By defining a search extent the field of interest may be constrained. Therefore, use this element if the address you were searching for could not be found.

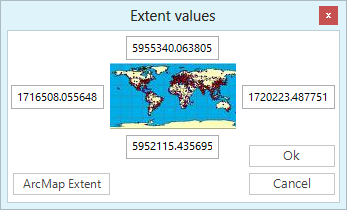

By clicking the button next to the text input fields, WebOffice author will open a dialog to simplify the configuration of the desired extent. Click the button ArcMap Extent to adopt the current map extent of the active dataframe of the ArcMap document. (The minimum value will be shown in geographic units and correlates to the left border of the map window.)

Caution: The extent information must be completely inside the full extent, otherwise it will be ignored.





Note: See chapter Geolocators for general information regarding geolocators.

Note: In order to provide a geolocator search in your WebOffice 10.7 SP1 project you need to configure a geolocator service. See chapter Geolocator Service for details.

Note: Define a geolocator query together with your desired result fields. See chapter Geolocator Query for details.

Note: Specify the selection display of the geolocator in Point Symbology.

Note: Please find more details about the geolocator query in the WebOffice html client in chapter Geolocator Query.
