Street |

|
Street |
|
Configure the function field Street if you want to display a street address on your print output.

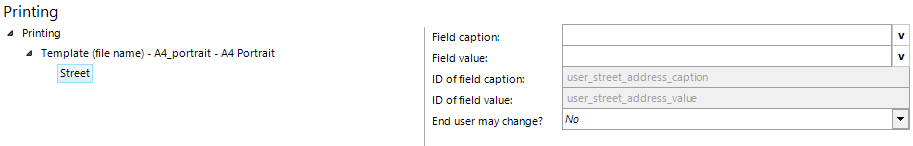

Street configuration
Property |
Description |
Field caption |
Caption in print template. Standard ratios are applied if there are no language-specific terms are specified. |
Field value |
Value in print template. Note: If "User may change?" is set to "Yes" you may also provide a list of possible values to the user. Use the "|" symbol as delimiter between the possible values, e.g. street 1|street 2. The first value will be the default value. If you want to provide several values but no default value start your listing with a "|" symbol, e.g. |street 1|street 2. |
ID of field caption |
The ID for this predefined function field is always user_street_address_caption. |
ID of field value |
The ID for this predefined function field is always user_street_address_value. |
End user may change? |
Specifies whether the user my change or set the value in the print tool form (Yes) or not (No). |
Street properties
Make sure that your print template (.layout file) contains the function fields user_street_address_caption and user_street_address_value. Only then, the configuration in WebOffice author will have an impact.
Note: See chapter Print for details about the tool configuration in WebOffice author.
Note: See chapter Template (File Name) for details about the configuration of print templates.
Note: See WebOffice107_plot_author_UserManual.pdf for details about working with WebOffice plot author.
Note: See chapter Print for the tool appearance in the WebOffice html client.
