List of Routing Restrictions |

|
List of Routing Restrictions |
|
Configure a List of Routing Restrictions to define any restrictions for the used network elements in order to privilege or penalize certain elements. Depending on the network you can model one-ways, forbidden crossovers, weight limitations, etc.

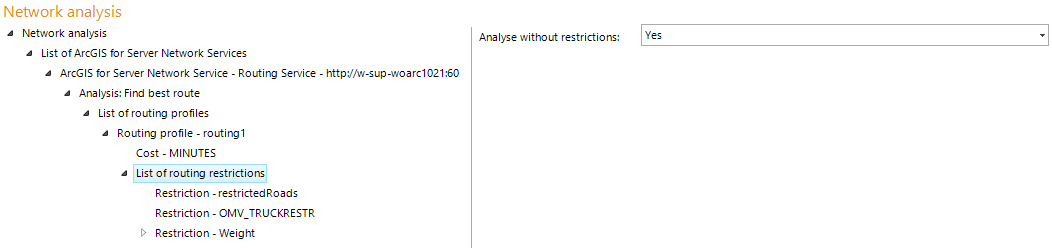

List of routing restrictions configuration
Property |
Description |
Analyse without restrictions |
"Yes" indicates that no network attributes should be used as restrictions. If set to "No" then only the default attributed configured in the network will be considered. |
List of routing restrictions properties
Define as many Restrictions as you want to be used in your route calculation. Consider that a large number of restrictions has negative effect on the performance of the route calculation.

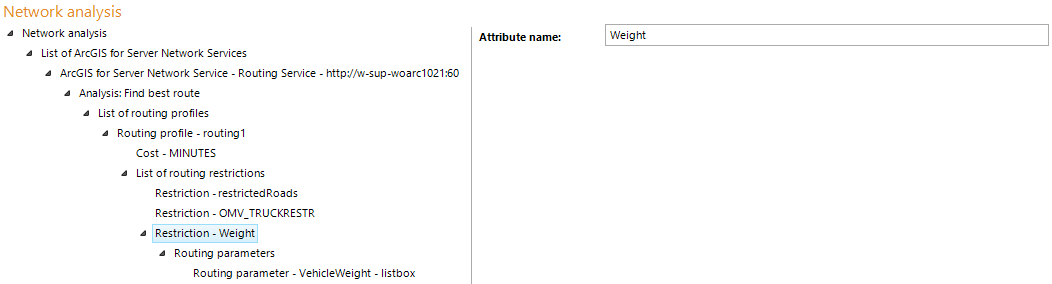

Restriction configuration
Property |
Description |
Attribute name |

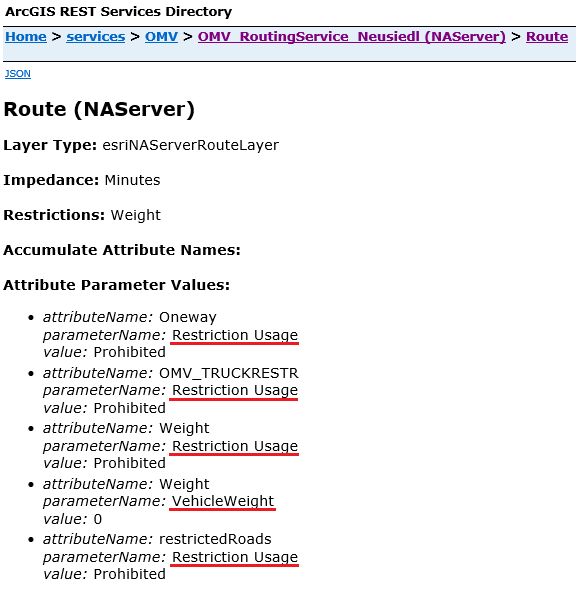

Attribute name that will get used as restriction. Note: For this parameter use the "attributeName" of the "Attribute Parameter Values" of the routing service.  Restrictions of a routing service |
Restriction properties
Use the option to configure Routing Parameters in case you want to give users the option to specify a restriction before calculating (e.g. the user enters a certain weight, so the route will be optimized for vehicles of this weight).

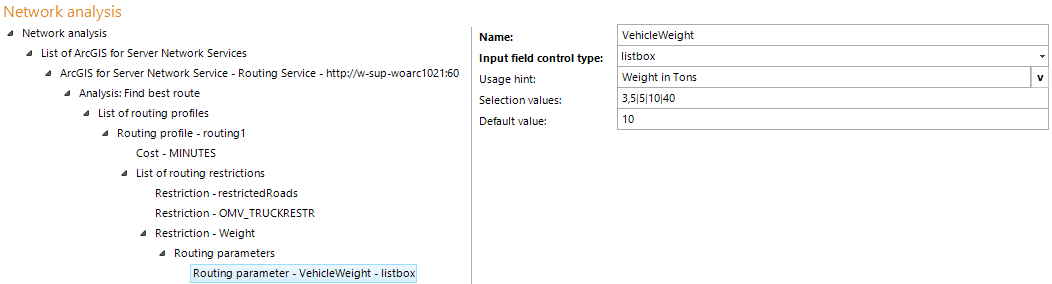

Routing parameter configuration
Property |
Description |
Name |
Name of the parameter, as defined in the network. Note: For this parameter use the "parameterName" of the "Attribute Parameter Values" of the routing service.  Parameter in the routing service |
Input field control type |
Specifies the type of the input field: •none - using default value, not displaying any control in the GUI •textbox - for strings and fields of type text (can also be used for numbers) •listbox - for lists |
Usage hint |
Usage hint displayed in the client user interface (GUI). |
Selection values |
Provide a list of allowed values using the "|" symbol for separating values e.g. '18|26|32' (tons). |
Default value |
Default value. |
Routing parameter properties
Note: See chapter Routing for details about the use of routing in the WebOffice html client.
