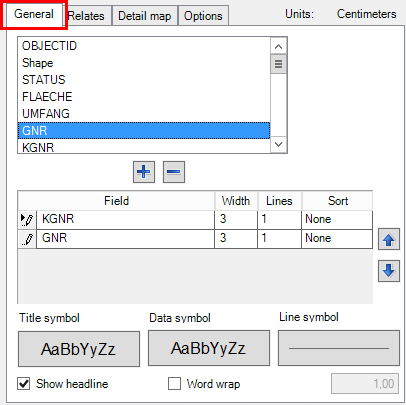

The list field displays all attribute fields of the selected layer.
Choose an attribute and add it with a click on the plus icon
or by double-clicking to the target list. To remove an attribute of the target list, click at the minus icon
or press the Del key.
Every attribute of the target list represents a column of the table. The order of the columns is given by the order of the lines. It is possible to change the order of selected lines with the up
and down
icons.
Menu Item |
Description |
Field |
The field list displays all available attributes (fields) of the selected layer. Choose the attribute you want to insert as column in the layout attribute table. |
Width |
It is possible to set different widths for each column. |
Rows |
Sets the number of lines that are used for each attribute. |
Sort |
Set the order of each attribute, either descending or ascending. Attention: Sorting does not work for fields from shapefiles. Apply the sorting therefore exclusively on data from a Personal Geodatabase, Filebased Geodatabase or SDE! |
Title symbol |
Here you can define the properties for the representation of the title, like e.g. font type, font size, font color.
|
Data symbol |
Here you can define the properties for the representation of the data, like e.g. font type, font size, font color.
|
Line symbol |
Here you can define the properties for the representation of the horizontal line, like e.g. font type, font size, font color.
|
Show headline |
This option enables or disables the headline (attribute name). |

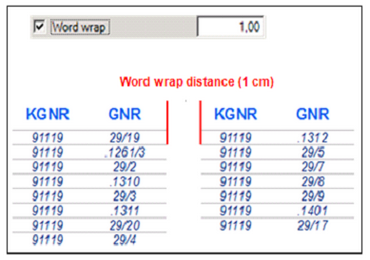

Word wrap |
Inserts a word wrap (table break), by defining the distance between the word wrap.
|
