WebOffice author > Edit Menu > WebOffice Category > Tools > Upload Local Geodata

Configure one or multiple Styles to manage the symbology of uploaded layers.

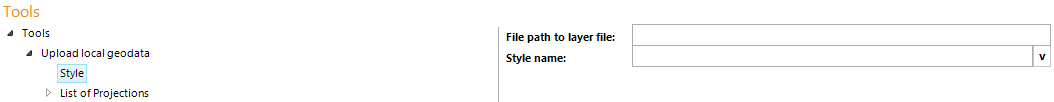

Style configuration

Property

Description

File path to layer file

Specify the path where the layer file (.lyr) is located.

Note: It is recommended to save the layer file under C:\arcgisserver\directories\WebOfficeLayerFiles.

Style name

Define a style name.

Style properties

Configured layer files will be used with the upload of local geodata if the layer file geometry type and renderer (e.g. UniqueValueRenderer) matches with the uploaded file. The uploaded file may contain its own style already (e.g. layer packages). In this case, WebOffice 10.5 SP2 will provide both styles for the uploaded layer with its own style as the default thematic mapping and the configured style as second thematic mapping.

In case the uploaded file does not have its own style, the matching configured style will become the default thematic mapping and any additional configured style will be available as second, third, etc., thematic mapping.

Note: Please note that WebOffice 10.5 SP2 does not support all symbols available in ArcMap. The supported symbols are listed in the chapter Simple Thematic Mapping.

Note: See chapter Upload Local Geodata for details about the tool configuration in WebOffice author.

Note: See chapter Add Local Geodata for details about uploading local geodata in the WebOffice html client.

Note: See chapter Add Local Geodata for details about uploading local geodata in the WebOffice core client.
