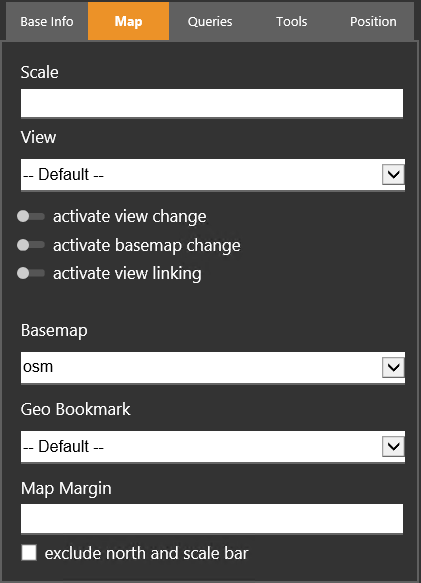

Map Content

Input parameter

Description

Scale

Insert the desired scale of the map content.

View

Select the desired map view (use the external ID of the map view in the project configuration)

activate view change

Activates the tool for changing the map view directly in the WebOffice map widget.

Note: The tool shows the external ID of the map view in the drop down list.

activate basemap change

Activates the tool for changing the basemapview directly in the WebOffice map widget.

Note: The tool shows the external ID of the map view in the drop down list.

activate view linking

Enables the display of specific map views for a special search result. If activated, the appropriate map view, which is configured within WebOffice author, is used for queries, identify and selection operations, as well as for the full-text-search, the Add/Remove tool and Edit/Create operations.
If not configured, the search result gets displayed using the current map view, i.e. the current map view is not changed at all.

Note: Please have a look at Layer Queries for more information about the configuration of map views for search results within WebOffice author.

Basemap

Select the desired basemap (use the external ID of the basemap in the project configuration)

Geo Bookmark

Select the geo bookmark, that defines the spatial extent for calling the project (the external ID has to be configured in the project).

Map Margin

Defines the number of tiles to get preloaded in the area outside the currently visible map (default is 1.0, note that a change of the value is only useful when using cached services).

exclude north and scale bar

By using this option the north arrow, scale bar and copyright information will be suppressed.
