The K5 Labeling tool supports labeling of features similar to K5 labeling in GeoOffice.



Note: Currently no multi-labeling is supported. Only single features can be labeled.

Note: Currently only the interactive selection is supported for K5 labeling but not the linking from a search result.



After activating the K5 Labeling tool there are several options to be set in the tool dialog. As soon as you have defined the appropriate parameters, you can add the K5 labels to the map by clicking on the respective labeling features.





•Result Set

In a first step you have to choose an appropriate Result Set, which contains the respective labeling features.

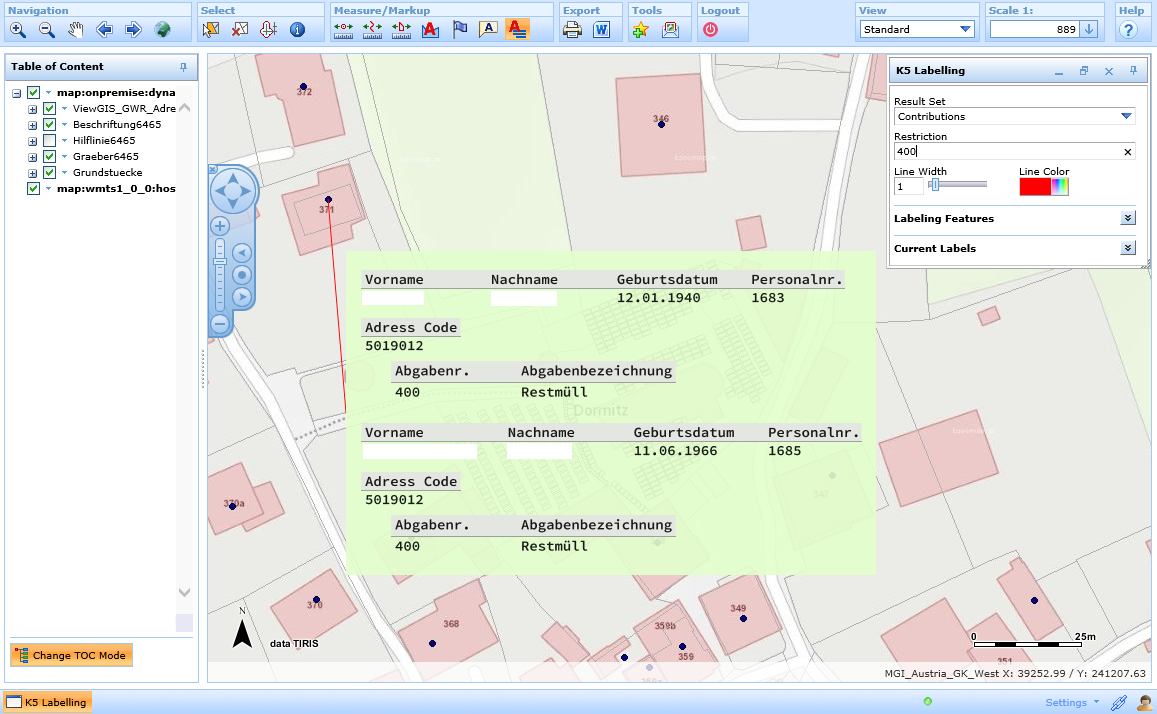

•Restriction

Only available for Contributions.







Note: The parameters Result Set and Restriction are the basic parameters which have to be set. As soon as you have defined the required Result Set and Restriction (only available for the Result Set 'Contributions'), you can add the K5 labels to the map by clicking on the respective labeling features.



•Style Settings

It is possible to define the style settings of the label line (line width and line color).

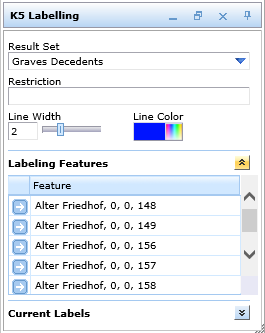

•Labeling Features

If there are more than one features found on the appropriate clickpoint, you can pick the required feature from the labeling features list.

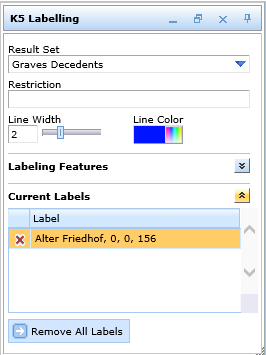

•Current Labels

In this section it is possible to remove either all labels or only single labels.







Note: See chapter K5 labeling for details about the tool configuration in WebOffice author.
