With WebOffice 10.5 SP2 there exist two options when snapping is needed for editing. The administrator can decide whether to provide snapping by

•snap grid

•snap profile or snap layer

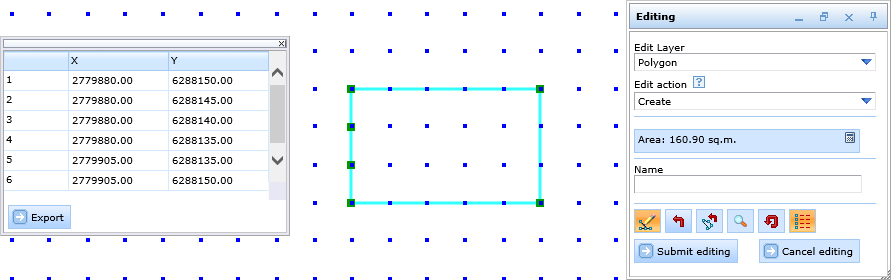

Snap Grid

With a Snap Grid, vertices can only be set to grid points with the specified distance, e.g. 5 meters.

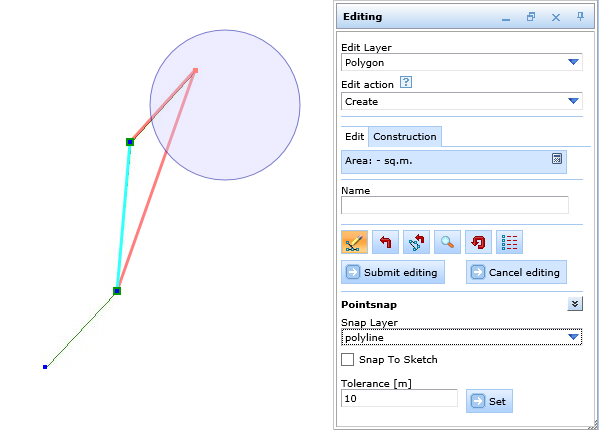

Snap Profile or Snap Layer

Another way of snapping is to use configured Snap Profiles or Layers. This way, the user can snap on existing objects of any available snap layer. Snap tolerance can be set directly in the edit tool form.





Note: See chapter Editing for details about the tool configuration in WebOffice author.

Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.
