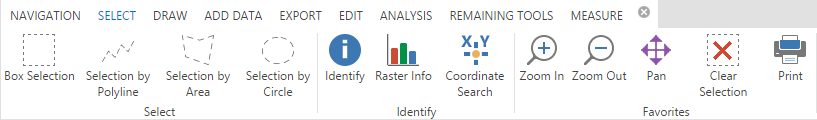

The selection tools of the WebOffice core client can be usually found in the ribbon SELECT and contain the following tools:

•Group Select

oBox Selection

oSelection by Polyline

oSelection by Area

oSelection by Circle

oClear Selection

•Group Identify

oIdentify

oRaster Info

oCoordinate Search



In case one of the four selection tools (box selection, selection by polyline, selection by area or selection by circle) has been activated, some configuration settings for spatial selection will be displayed. The following parameters can be set:





Selection Layer

Select from various selection layers depending on your WebOffice 10.5 SP2 project configuration. You can select a specific layer by opening the selection list or - if configured - by entering the first letter(s) of a layer. When executing the last action the selection list is shown with all the layers and their categories, which apply to the filtering.





Note: To activate Layer selection with filter in WebOffice author see chapters Selection by Polyline, Box Selection, Selection by Circle, Selection by Area and Identify.



Selection Mode

The selection mode defines whether a new result will be created, or objects will be added or removed to/from an existing result.





Additionally, other tools (e.g. selection by circle) may provide further configuration settings.



Note: The selection mode cannot be changed whenever the selection layer is set to Visible Layers. Multiple selections from various layers cannot be displayed in the Result List. Instead you will find them in the Feature Summary.

Note: By using the shortcut SHIFT + left mouse button in course of an active selection tool, it is possible to add objects to a current selection. For further information see Navigation Elements.

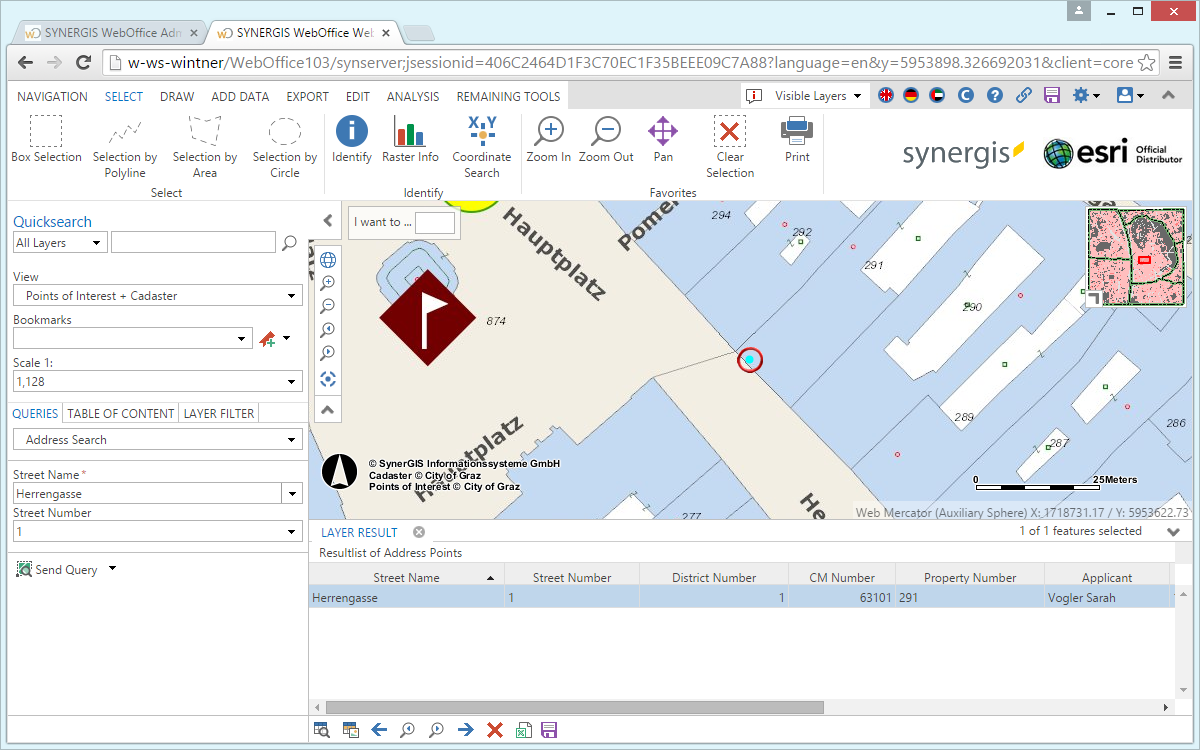

Dynamic Selection

Depending on the configuration, animated graphics (animated GIF files) can be used for object selection. This way, the user can identify the currently selected object in the map more easily.





Note: See chapter Dynamic Selection for details about the configuration.
