WebOffice author > Edit Menu > WebOffice Category > Tools > Tool Group Select > Select

The Select - Periphery tool enables the user to select by defining a circle.

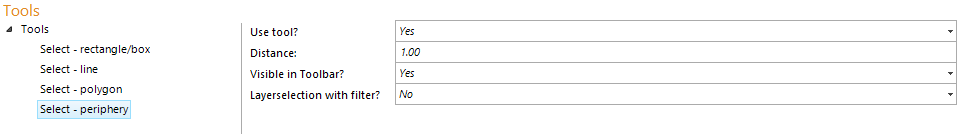

Select - Periphery tool configuration

Property	Description
Use tool?	Defines whether the tool will be used (Yes) or not (No).
Distance [Geodata units]	Define the default distance in geodata units (units of the coordinate system of the map service) entered into the tool form.
Visible in Toolbar?	Specifies whether the tool will be available in the toolbar (Yes, default) or not (No). Choose the latter option if you do not want to show the tool in the toolbar but use it in combination with the scriptAPI.setTool method.
Layerselection with filter?	Specifies if a layer filter should be active for the identify tool. 'No' (default) deactivates the layer filtering in the selection box. 'Yes" enables the layer filtering in the selection box.

Select - Periphery tool properties

Note: In order to make this tool available in the WebOffice 10.5 SP2 clients, at least one layer has to be selectable. See chapter Layer Queries or use the WebOffice author wizard Define Selectable/Identifiable Layers.

Note: See chapter Selection by Circle for the tool appearance in the WebOffice html client.
