Navigation:  WebOffice Administration Page > Statistics Tab

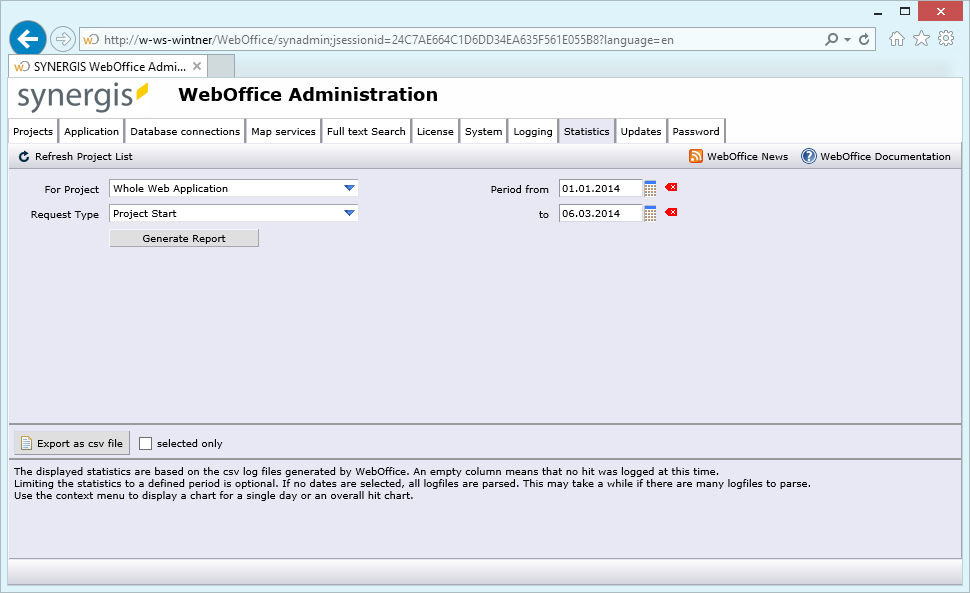

In the Statistics tab you can quickly get an impression on the count of WebOffice 10.5 SP2 client sessions (a session gets established if a user opens a WebOffice 10.5 SP2 client in its browser and works with it. Therefore, the count of WebOffice 10.5 SP2 sessions is a good basis for getting information on WebOffice 10.5 SP2 usage). Within one session hundreds of requests/transactions may get processed (i.e. the sessions count is totally different from transaction, page hit or page impression count).





You can focus on a specific project configuration or get an analysis for all projects of the whole web application. Choose a specific request type from the following options:

•Project Start

•Map Display

•Print Outputs

•Result Display

•Map Widget Start

•Clients ranked by Starts

•Projects ranked by Starts

•User ranked by Starts (only when WebOffice usermanagement is activated)

•All current sessions

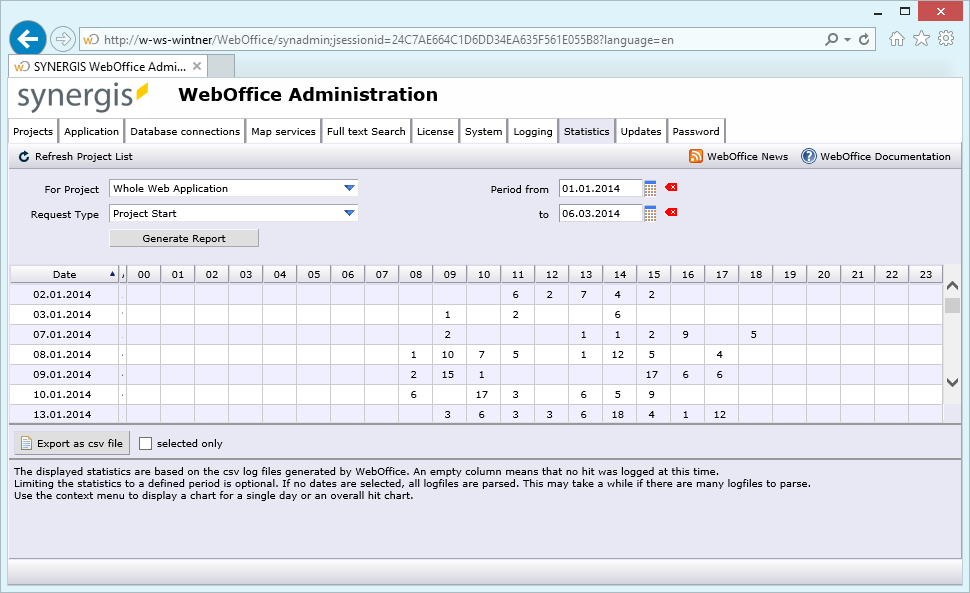

Define the period you want to search for by selecting the desired dates with the calendar function. Then click Generate Report button for generating a numeric report.





By opening the context menu with a right mouse click inside the statistics window, SynAdmin offers you various options to create statistic charts:

•chart for a this day

•chart for selected days

•chart for all days

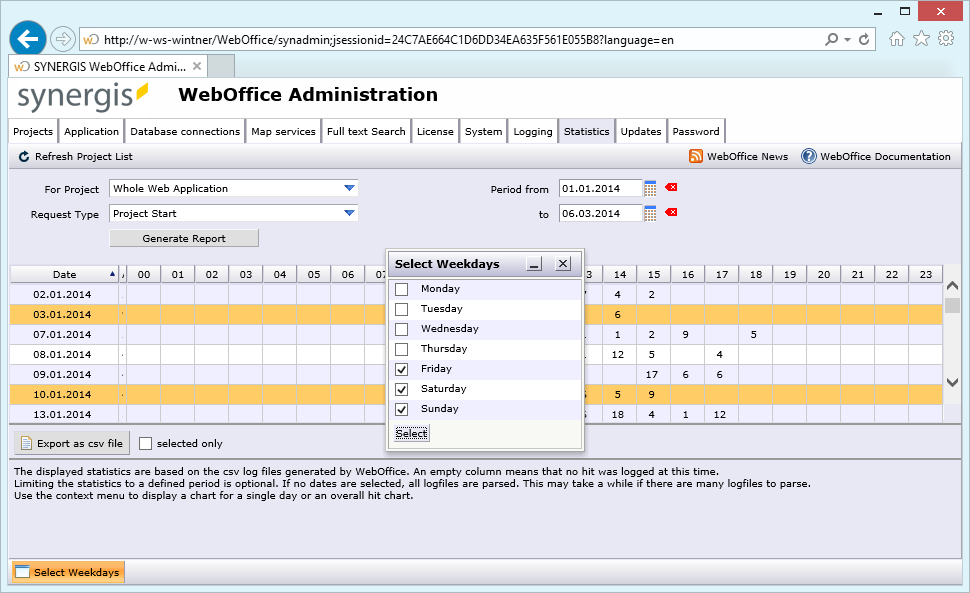

It is possible to mark multiple days by holding Ctrl while selecting a row. Click Select by Weekday to get a pop window allowing you to gather information concerning specific weekdays. In an additional window you can select the days you want to include in the chart creation.

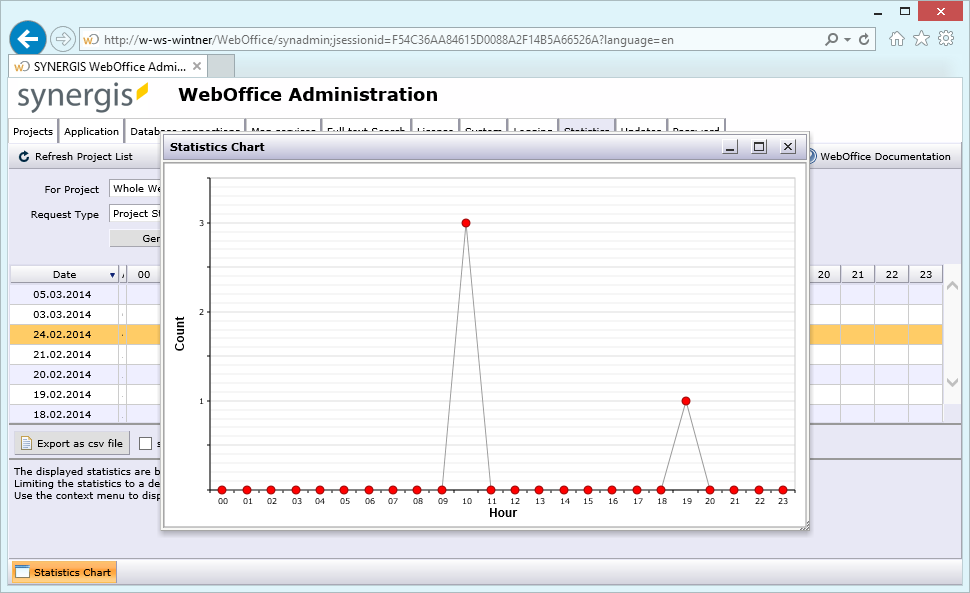

Chart for this day

If you want to display the chart for one day only, click this option.

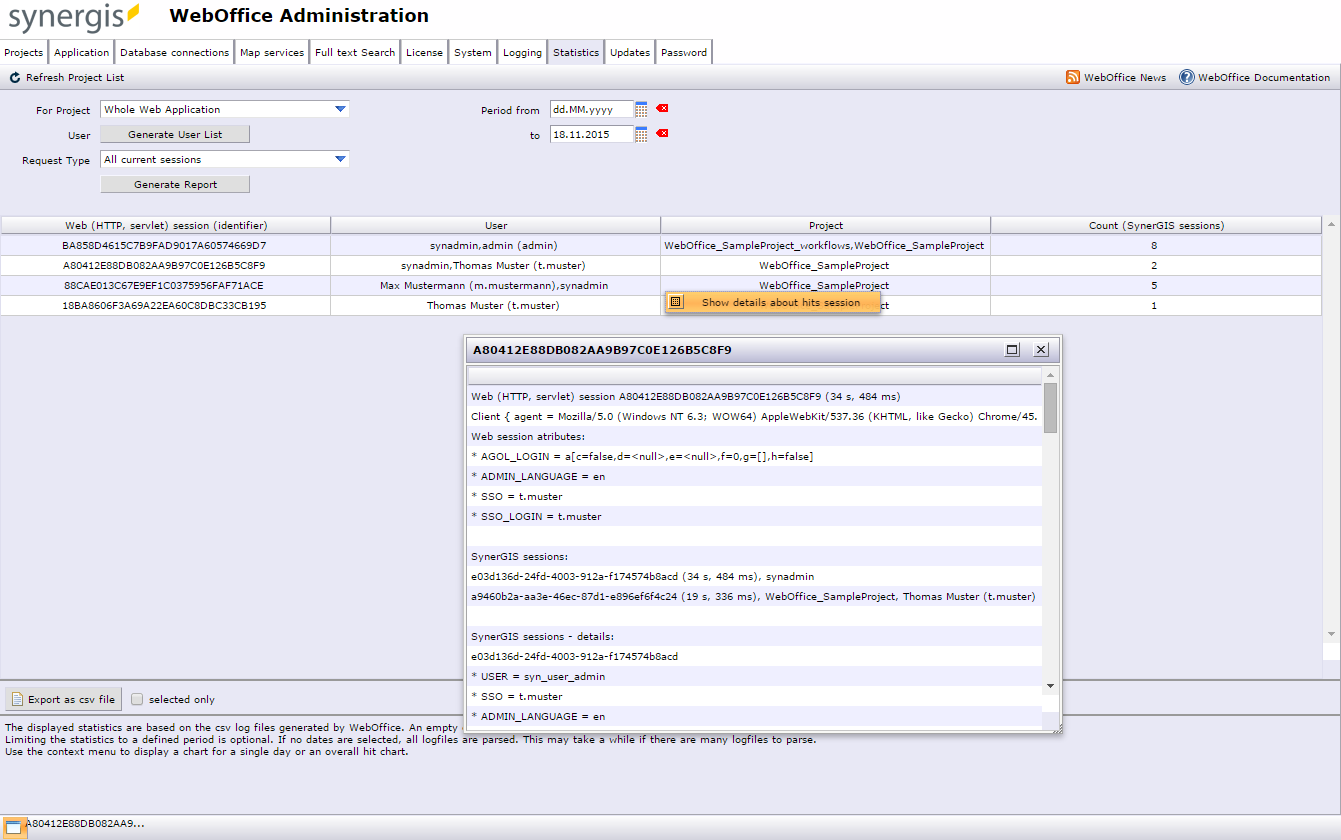

All current sessions

By requesting all current sessions, the Statistics Tab lists the session id, user (if available), project (if available) and the count of active SynerGIS sessions. By using a right mouse click it is possible to show detailed information about each single session id. The user can list the statistic based on a specific timeframe over single projects or the whole WebOffice 10.5 SP2 web application. Additionally the user has the possibility to sort the different columns.







Optionally, it is possible to export the statistics as a CSV file. Click the button Export as csv file and check selected only if necessary.

Note: See chapter WEB-INF Directory for information where the WebOffice statistic files are saved and can be accessed directly.

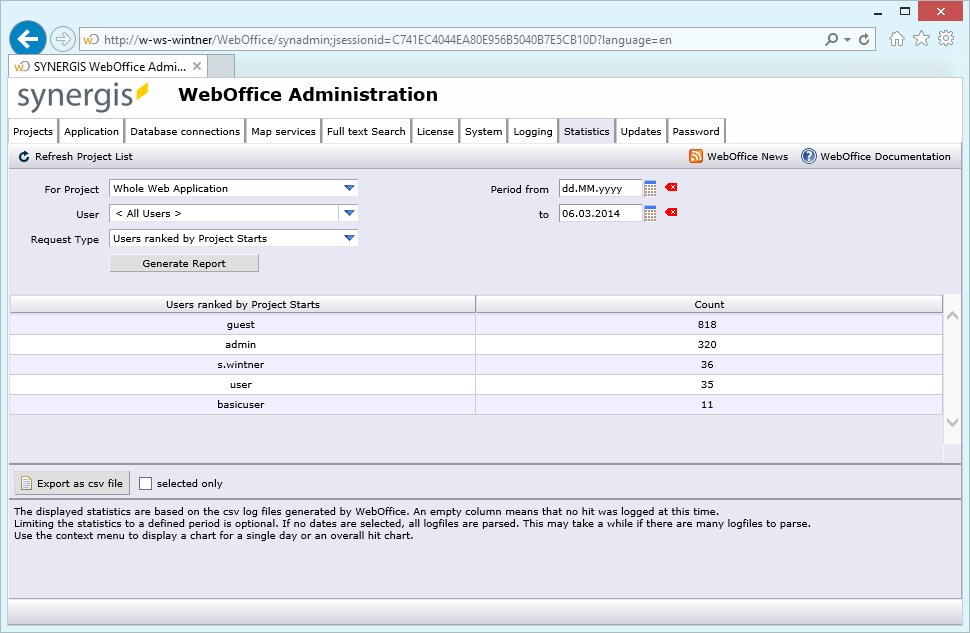

Statistics with activated WebOffice usermanagement

If you have activated WebOffice usermanagement in your application configuration the additional category User can be used to filter WebOffice 10.5 SP2 statistics.
