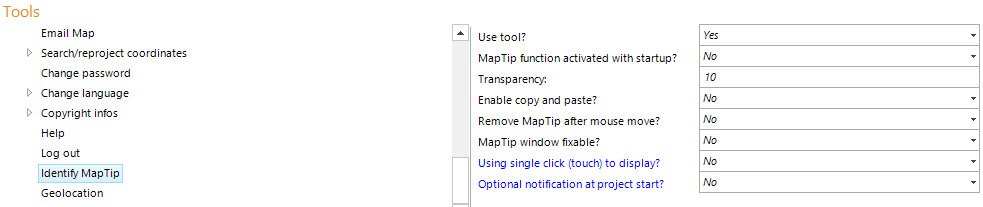

Identify MapTip

Property

Description

Use tool?

Specify whether this tool is available in the WebOffice 10.4 SP2 clients (Yes) or not (No).

MapTip function activated with startup?

Specifies whether to provide MapTip functionality from beginning on in WebOffice 10.4 SP2 clients.

Set it to "Yes" if you want the user to be able to simply identify objects in the map by just moving the mouse over the map from beginning on.

Note: MapTip functionality has to be activated on an identifiable layer. See chapter MapTip in layer queries section for detail.

Transparency

Defines the transparency for the MapTip display above the map.

Enable copy and paste?

Enable copy and paste in MapTip window?

Remove MapTip after mouse move?

Removes the current MapTip result if the next MapTip query returns no result (Yes), or only if a new MapTip result is to be shown (No/Default).

MapTip window fixable?

Specifies if click in the map fixes the MapTip window (Yes) or not (No/Default). Use "No" for optimized map navigation.

Note: Specifying "No" and configuring a MapTip Display Time [ms] on a layer to "0" (i.e., a click is necessary to close MapTip window) may cause unexpected behavior and is not recommended!

Using single click (touch) to display?

Specifies whether a single click event (Yes) or a continuous request (No) is to be used for displaying MapTip results in the WebOffice flex client.

Note: This parameter is WebOffice flex specific!

Optional notification at project start?

Optional configurable notification that should be displayed, when using single click (or touch) event to display the MapTip result in WebOffice flex client.

Note: This parameter is WebOffice flex specific!

Note: To change the notification text in the language resources, please see chapter WebOffice Messages for details.
