Search Result View |

|
Search Result View |
|
Open the context menu with a right-mouse click and add as many Search Result View elements as desired.
A Search result specifies:
•Result Field List: Specify which attribute fields are to be displayed
•Integration of External Application: 1 or multiple web applications to be called
•Neighbor Search: Creates a selection of features of a specified layer inside a specified distance, sorted ascending by distance)
•JOIN 1:1: A 1:1 relation with another database table
•RELATE 1:n: A 1:n relation with another database table
•Print Templates with Attribute Data: enable the user to immediately print from his search result including simple reporting (attributive data of one or multiple selected objects)
•Integrator Client Configuration: Key field to be used for SynerGIS Integrator (System integration with desktop applications)
Note: If only a search result view is configured without any sub elements then all attribute fields of the respective layer will be displayed in the WebOffice 10.4 SP2 clients.

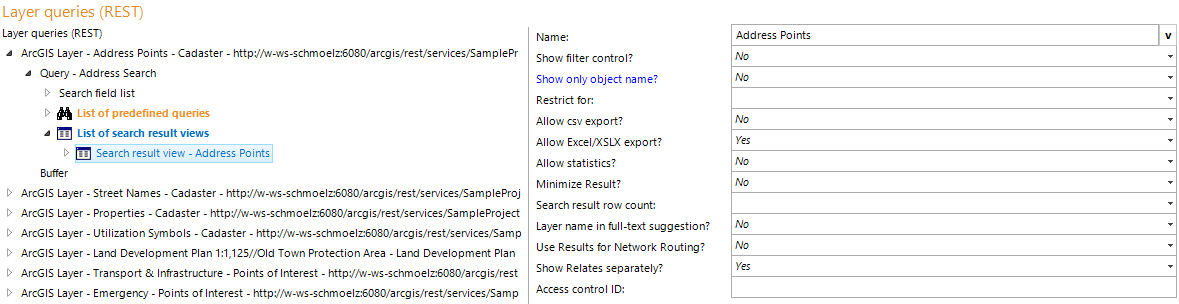

Search result view configuration
Property |
Description |
Name |
Name of the search result displayed in WebOffice 10.4 SP2 clients (search result window title). |
Show filter control? |
Specifies whether the filter control gets displayed in the search result by default or not. Using the filter control it gets very easy for the user to filter data in the search result using attributive filter criteria. |
Show only object name? |
Specifies whether only the object name (Yes) or each field value separately (No) of the WebOffice flex Client gets displayed by default. Note: This parameter is WebOffice flex specific. |
Specifies if the search result is restricted for - MapTip: search result is available for Identify MapTip tool only - Free labeling: search result is available for Free Labeling tool only |
|
Allow csv export? |
Defines if the user can export the query result as a CSV file. |
Allow Excel/XSLX export? |
Defines if the user can export the query result as an spreadsheet file. Note: Use this option if exporting with Microsoft Excel 2007 or Microsoft Excel 2010 (both *.xlsx). If exporting with Microsoft Excel 2003 or an older version, formatting properties (e.g. comma) can be lost. Use the CSV export. |
Defines if the result allows statistic functions for the selected features. |
|
Minimize Result? |
Defines if the result list should be displayed minimized (Yes) or opened (No). |
Search result row count |
Search result row count |
Layer name in full-text suggestion |
Defines whether the layer name is to be appended in brackets to the object name when a feature of this Layer is displayed as a suggestion for the full-text search. Default: No, i.e. the layer name is not shown. |
Use Results for Routing? |
Defines whether the results of this search result view may be used as stops when the Routing functionality is configured. |
Show Relates separately? |
Defines if multiple relates on a result are displayed as single relate buttons (Yes, Default) or get displayed as a single button (No). |
Access control ID needed for access control based on WebOffice usermanagement. If both an ID is configured here (eg 'SEARCH_RESULT_CITIES') and WebOffice usermanagement is used, the user role is checked whether it provides the necessary application right or not (according to the example the application right would be SEARCH_RESULT_CITIES). If the necessary application right is not available, the search result view will not be available in WebOffice. Note: Use this function, if you want to restrict certain fields for certain groups. In that case, configure different search result views and assign them via Access control ID to certain groups in WebOffice usermanagement. |
Search result view properties
Note: See chapter Search Result and subsequent chapters for the search result appearance in the WebOffice html client.
