Data Sources |

|
Data Sources |
|
Use the Data Sources wizard to create, modify or delete data source references. Use this wizard especially then, if you want to remove a data source from your WebOffice usermanagement database that is outdated. Data sources usually are created automatically in the UMDB when synchronizing the base data via WebOffice author.
Note: A data source that you want to delete must not be referenced in any Feature Classes in the WebOffice usermanagement database.
When modifying an existing data source, first select one.

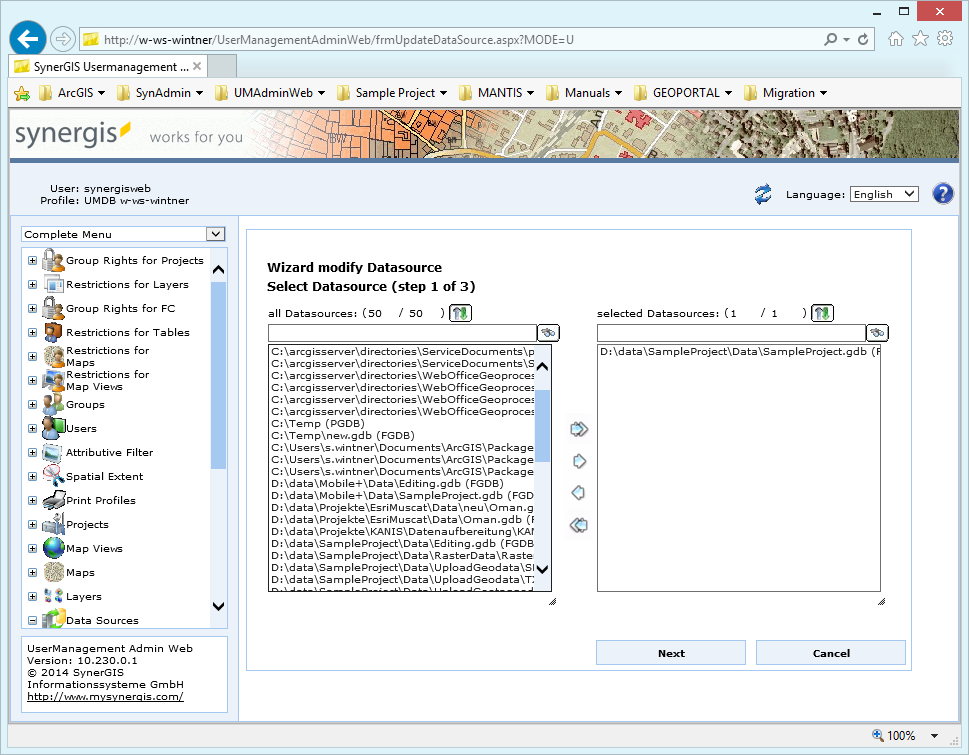

Modify a data source - step 1
In the next step you will get details about the type, name and file path of the selected data source.

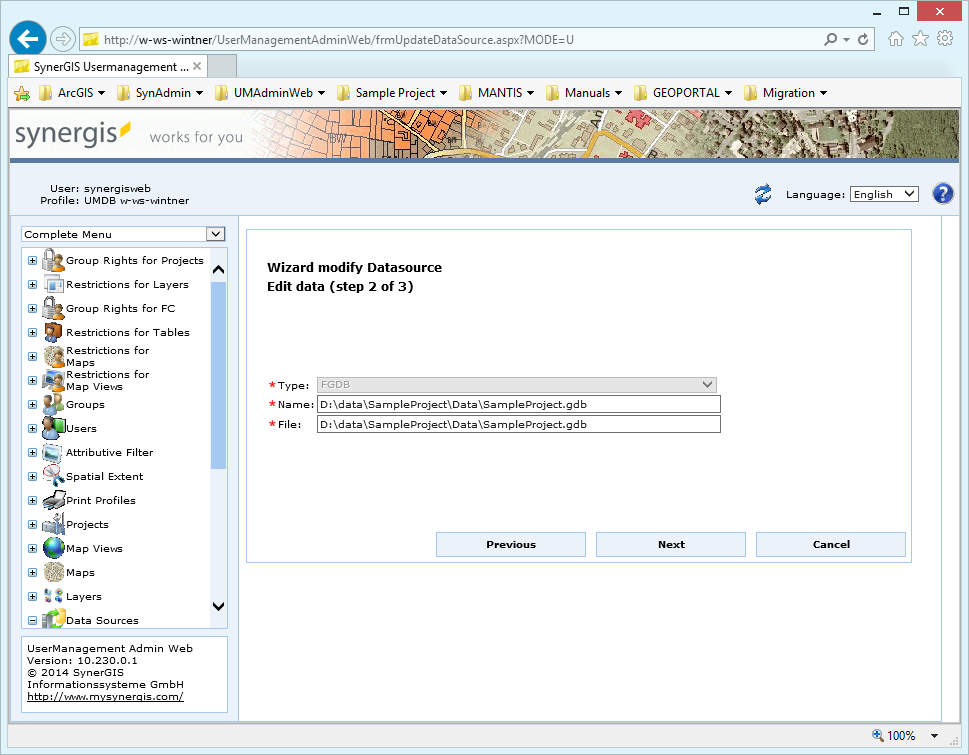

Modify a data source - step 2
Property |
Description |
Type |
When creating a new data source manually, the data source type has to be specified. Select one of the following: •FGDB •JDBC •PGDB •SDE •Shape Note: This field is mandatory. |
Name |
Name of the data source. Note: When created automatically during base data synchronization, the data source name refers to the file path. Note: This field is mandatory. |
File |
Provide the file path to the data. Note: This field is mandatory. |
Data source properties
In the final step you get a resume. Click the Finish button to store your edits.

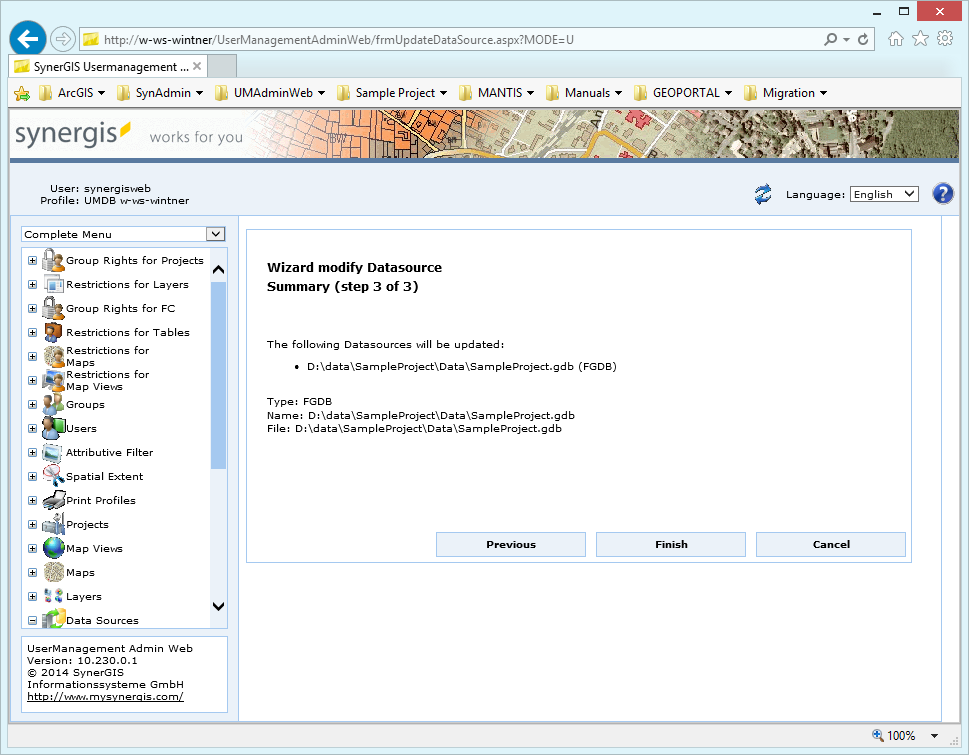

Modify a data source - step 3
