WebOffice > Upgrade > Upgrade WebOffice

After downloading a current patch for your WebOffice application, extract the files into a temporary directory on your server. In this directory you will find the following files:

•	ArcGIS for Server Object Extensions Current SOE for the SynOutputService.

•	WebOffice System SynerGIS files, that will be served in the ArcGIS 10.2 for Server.

•	Readme_Patch_en.txt resp. Readme_Patch_de.txt A step-by-step description how to install the current patch as well as a list of all included bugfixes with their according numbers from the bug-tracking system.

•	WO102_patch_yyyymmdd.exe The current WebOffice patch.

Data content of a WebOffice patch

Note: Consider the preconditions in the Readme file before installing a patch.

Upgrade WebOffice

The following steps must be followed when installing the latest patch:

1) Backup your entire WebOffice web-application (e.g. C:\Tomcat\webapps\<WebOffice web-application>) to a save place

2) Stop Apache Tomcat (Start/Programs/Administrative Tools/Services)

3) Delete the working directory of Apache Tomcat at e.g. C:\Tomcat\work\Catalina\localhost\<WebOffice web-application>

4) Update the ArcGIS for Server Object Extension for WebOffice as described:

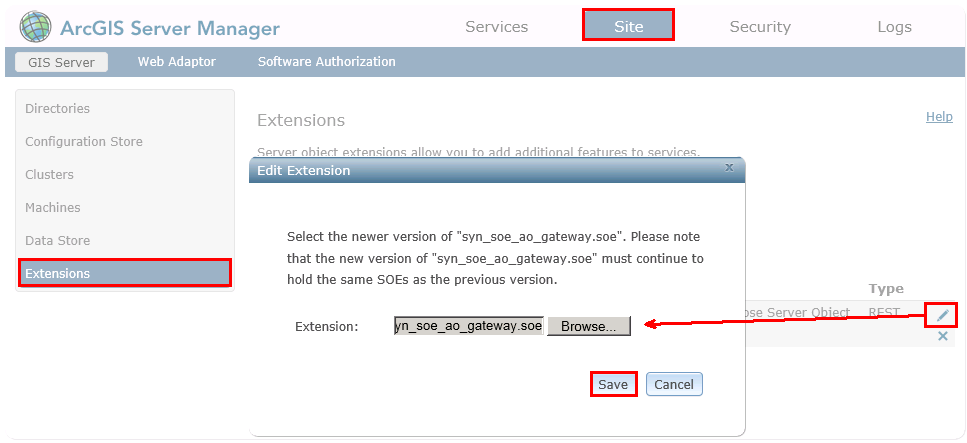

a) In ArcGIS Server Manager under Site/Extensions choose to edit SynerGIS Server Object Extension and select <Patch>\ArcGIS for Server Object Extension\syn_soe_ao_gateway.soe to upload.

Note: Don't use uninstall and install the extension, because else you have to set the properties for "SynerGIS Server Object Extension" again!

Update SOE in ArcGISServer Manager

Note: After replacing the SOE file, SynOutputService is stopped. This service must remain stopped, otherwise the next step can not be performed.

b) Copy the content of <Patch>\WebOfficeSystem to C:\arcgisserver\directories\WebOfficeSystem.

c) Start the map service SynOutputService (or all services, where "SynerGIS Server Object Extension" is activated).

5) Copy the patch (WO102_patch_yyyymmdd.exe) to the directory of your WebOffice web-application (e.g. C:\Tomcat\webapps\<WebOffice web-application>)

6) Run the patch and choose to overwrite all existing files

7) Delete the patch (WO102_patch_yyyymmdd.exe)

8) Start Apache Tomcat (Start/Programs/Administrative Tools/Services)

9) In case of problems: Clear Browser- and Proxy-Cache and delete the file <WebOffice web-application>\client_workspace\JSXAPPS\weboffice\js\core_wo.js
