Navigation:  WebOffice > Installation > WebOffice Extensions (GIS Server/Administrative Computer) > Install WebOffice Extensions

Note: Prerequisite for the WebOffice extensions 10.2 is the installation of Microsoft .NET 4. For more information go to http://www.microsoft.com/en-US/download/details.aspx?id=17718.

Note: If you experience troubles installing the setup you can log the installation steps using the msiexec -i installation functionality. See chapter Install/Uninstall Problems during Setup Process for details how to log the setup process.

Note: Dependent on your server machine the installation process of the WebOffice extensions 10.2 might use more time (about 20 minutes) as usual. We recommend to wait for a successful end of the installation and not to cancel the installation at an early stage.

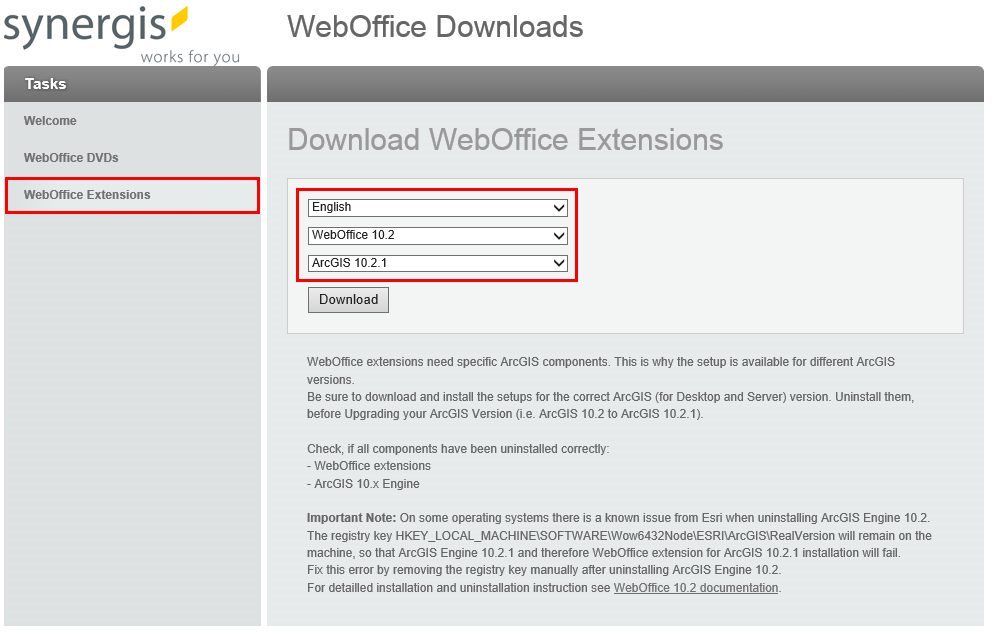

In the first step download the corresponding WebOffice extensions 10.2 installation file here. Please use for entering the download page the same login data as used for the download of the WebOffice10.2-DVD. On the download page navigate to WebOffice extensions and select the installation file corresponding to your system:





Note: If you don't have any or only a bad connection to the internet, download the installation file in advance.

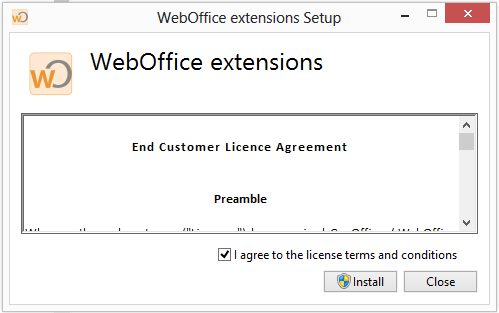

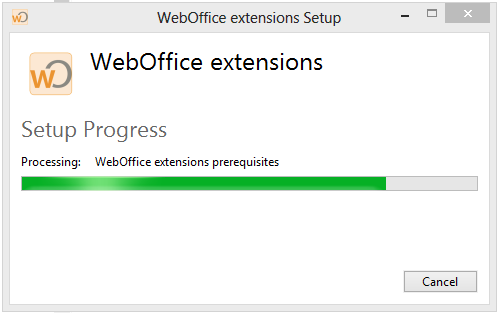

In the next step execute the downloaded WebOfficeExtensions.exe and agree the license terms and conditions.









Note: All components of WebOffice extensions 10.2 will be installed to C:\ProgramFiles(x86)\SynerGIS\GeoOffice, by default.

If the components of the WebOffice extensions 10.2 will be installed to another directory than the default, keep in mind that you also have to install possible GeoOffice moduls to this directory.

Note: If the settings of the com+ component IP within the ribbon General (section SynerGIS Object Extensions) of the ArcGIS 10.2 for Server manager is not specified with a local IP (127.0.0.1), additionally for the correct connection to the Extensions the configurationfile of the WebOffice extensions 10.2 has to be prepared according to the ArcGIS 10.2 for Server manager. Die configuration file SynerGIS.WebOffice.Extensions.exe.config can be found via the following path C:\Program Files (x86)\SynerGIS\GeoOffice\Bin. Within this configuration you can specify the IP address , the port, the maximum number of threads, and the maximum waiting connections of the extension.
