WebOffice extract server |

|
WebOffice extract server |
|
The WebOffice extract server - extract data tool is the geodata extraction module which provides powerful export functionality for the WebOffice html client:
| • | Geodata extraction profiles for grouping together sets of data layers to be exported |
| • | Multiple different GIS output formats |
| • | Multiple different CAD output formats |
| • | Raster output formats |
| • | Export into various projections |
In order to use WebOffice extract server you have to purchase the following licenses:
| • | WebOffice 10.2 SP3 standard |
| • | WebOffice extract server |
| • | WebOffice usermanagement |
Be sure that the following software components are installed:
| • | WebOffice 10.2 SP3 |
| • | WebOffice extensions 10.2 |
| • | WebOffice author |
| • | UserManagement Admin Web |
In order to provide WebOffice extract server functionality in WebOffice 10.2 SP3, you need to specify the WebOffice extract server - extract data tool in WebOffice author:

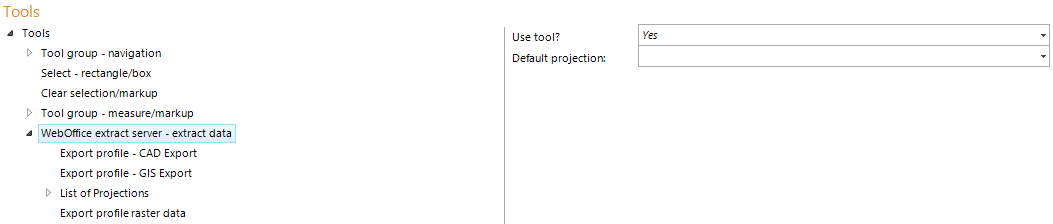

WebOffice extract server - extract data tool configuration
Property |
Description |
Use tool? |
Control if this tool is available in the WebOffice 10.2 SP3 Client or not. |
Default projection |
Specify a specific default projection. If the field is left empty, the projection of the main map service will be taken as default projection. Note: See chapter List of Projections for details about configuring specific projections. |
WebOffice extract server - extract data tool properties
As subelements it is possible to configure
| • | Export Profile for exporting vector data (GIS & CAD formats) |
| • | Export Profile Raster Data for exporting raster data (GeoTIFF) |
| • | List of Projections for defining the projections that should be available for the user |
| • | ArcGIS Server Extract Service as an optional output service especially for WebOffice extract server |
Note: You need to activate the WebOffice extract server extension on your SynOutputService (or the specific ArcGIS Server Extract Service) as described in Activate SOE on a Map Service.
Note: In WebOffice usermanagement, be sure that you have configured an Application Profile that includes the WebOffice - Export (Standard) Application Role and assigned to a group.
Note: See WebOffice extract server User Manual for details about working with WebOffice extract server author.
Note: See chapter Data Export for information about the WebOffice extract server functionality in the WebOffice html client.
Note: See HowTo chapter Export Profiles Supporting Various Projections for a detailed description how to handle different projections when using WebOffice extract server functionality.
