WebOffice author > Edit Menu > WebOffice Category > Tools > Tool Group Measure/Markup

The Meeting Point tool provides functionality to make map notes which can be used for easy exchange of symbols place in the map via E-Mail.

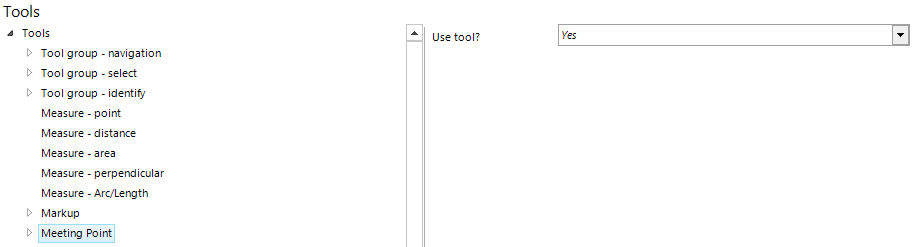

Meeting Point tool configuration

Configure different Meeting Point Symbols that are to be available in the WebOffice 10.2 SP3 clients.

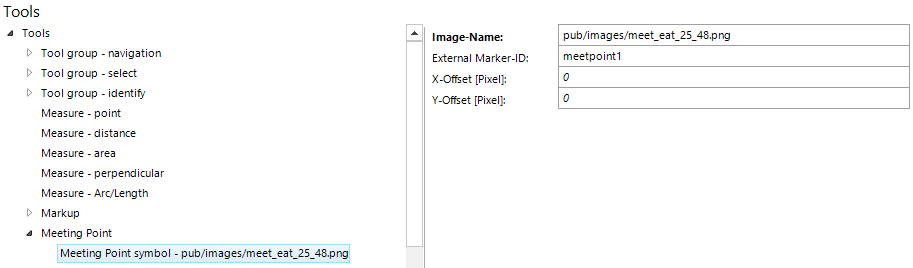

Meeting point symbol configuration

Property

Description

Image URL

URL of the image for the Meeting Point symbol including file extension (.gif or .jpg), e.g.: pub/images/meet_x_20_20.png

By default the following images are available in the folder pub/images (the first number in the file name is the X- and the second number is the Y-offset):

•	meet_x_20_20.png,

•	meet_magnifier_16_16.png,

•	meet_bubble_24_45.png,

•	meet_star_18_21.png,

•	meet_flag_blue_8_32.png,

•	meet_pin_blue_3_38.png.

Note: The image has to be located inside the web application and referenced via a relative path or a valid HTTP URL has to be used. To reference images outside your web application directory, create a virtual directory and refer to via HTTP URL.

External Marker-ID

Marker-ID used to relate external calls to the marker symbol.

X Offset [Pixel]

X-Offset [Pixel] for insert point of the graphics symbol.

Y Offset [Pixel]

Y-Offset [Pixel] for insert point of the graphics symbol.

Meeting point symbol properties

Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.

Note: See chapters Measure/Markup and Place Symbol for details about the tool appearance in the WebOffice html client.

Note: See chapter Add Drawing for details about the tool appearance in the WebOffice mobile client.

Note: See chapter Meeting Point for details about the tool appearance in the WebOffice flex client.
