Display Mode |

|
Display Mode |
|
It is possible to specify the Display Mode that will be used to open the hyperlink/integration. Choose between:
| • | Display mode IFrame: External web pages then get embedded in a WebOffice 10.2 SP3 client window. It does not matter whether a pop up blocker is active or not |
| • | Display mode pop up: External web pages will be opened in a browser pop-up window. Pop-ups must then be allowed for WebOffice 10.2 SP3 client web page in order to correctly display contents of the integrated web page. You may use this option if e.g. the layout of the integrated web page does not fit to WebOffice 10.2 SP3 client. |
Note: The way how a browser pop-up opens (i.e. in a new window or in a new tab) depends on browser settings and/or security settings of the website to be opened.

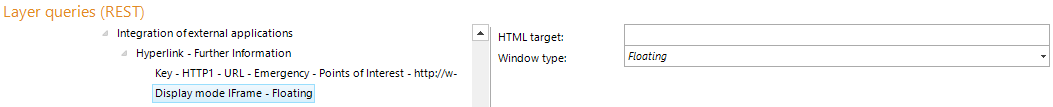

Display mode IFrame configuration
Property |
Description |
||||||||||||
HTML target |
Specifies the HTML target to be used. This is useful for accelerating calls (especially repeated calls) to other applications and for controlling in which window a specific web application gets (re)opened. |
||||||||||||
Window type |
The window type attribute enables you to control the way the external web page is displayed. You may choose either
|
Display mode IFrame properties

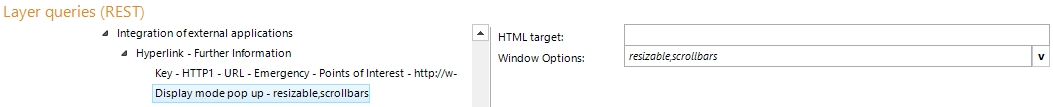

Display mode pop up configuration
Property |
Description |
HTML target |
Specifies the HTML target to be used. This is useful for accelerating calls (especially repeated calls) to other applications and for controlling in which window a specific web application gets (re)opened. With this attribute, it is possible to alternately display various coupled applications in a single browser window or display each application in a single window, so that a number of various application windows are displayed at the same time. Note: For example, use the HTML target "to_weboffice" if you want to replace the WebOffice 10.2 SP3 client with the external application/hyperlink. Note: If no value is specified, the given name in the configuration of the coupled application is used as identifier. |
Window Options |
Defines the options (GUI elements) for the popup window. Press the arrow symbol on the right hand side of the input field to get a list of options to choose from.

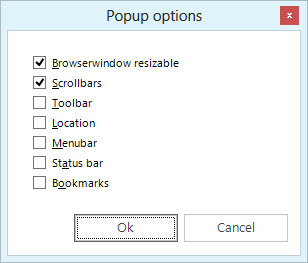

 Window options
|
Display mode pop up properties
Note: See chapter Hyperlink for details about the configuration of hyperlinks in WebOffice author.
Note: See chapter Integration (Call FROM WebOffice) for details about the configuration of Integtration (Call FROM WebOffice) in WebOffice author.
Note: See chapter Hyperlinks for details about hyperlinks in the WebOffice html client.
