The Main Map Display contains five optional functional elements:
| • | Scale Bar |
| • | North Arrow |
| • | Copyright |
The main map display of the WebOffice html client
Scale Bar
Depending of your configuration a scale bar of various size and color that is using different measure units will be displayed in the right bottom corner of the main map.
Note: See chapter Scale Bar for details about the scale bar configuration in WebOffice author.
Small scale bar displaying meters

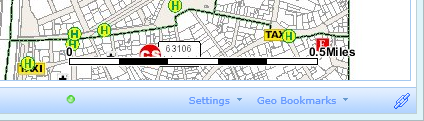

Large scale bar displaying miles
Copyright & North Arrow
Copyright and north arrow are both displayed in the left bottom corner of the main map in case they are configured. Regarding the copyright text, there are two types to be displayed:
| • | project specific copyright information |
| • | layer specific copyright information |
Note: See chapter Copyright for details about the project specific copyright configuration in WebOffice author.
Note: See chapter ArcGIS Server Map Service for details about layer specific copyright information.
Note: See chapter North Arrow for details about the north arrow configuration in WebOffice author.
