ArcGIS Server Map Service |

|
ArcGIS Server Map Service |
|
With an ArcGIS Server Map Service local ArcGIS 10.2 for Server map services (on premise) can be embedded into the project. Configure Map Service Properties for the service to manage several properties specifically for a certain service.
Whenever a new ArcGIS Server Map Service is added to the WebOffice 10.2 SP3 project configuration
| • | configure the corresponding Reference to Map Service of Map Collection in the table of content (mandatory) |
| • | configure the corresponding reference to map service of map collection in the Map View (optionally) |

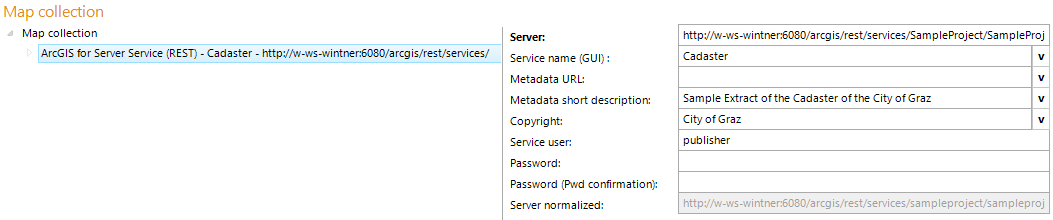

ArcGIS Server Map Service configuration
Property |
Description |
Server |
Specifies URL of ArcGIS Server map service (on premise). Example: |
Service name (GUI) |
Service name of the map service displayed in the GUI. |
Metadata URL |
Configure a reference to a metadata document (must be available via HTTP) as URL. Note: You may configure the unique Metadata document identifier (UUID) of a Catalog Service (CSW 2.0) here. In this case you must configure the SOAP interface of the Catalog Services in Metadata Display. |
Metadata short description |
Provide a short description for the metadata (line breaks with "\n"). |
Service specific copyright text to be added to the configured project copyright if the map service contributes to the map. Note: The service specific copyright will only be displayed if the map element Copyright is configured. Note: Detailed information about the use of these attributes can be found in chapters Template (File Name) and WebOffice ePaper Template (File Name). |
|
Service user |
User login for accessing the ArcGIS 10.2 for Server service (ArcGIS service user). |
Password |
Password of user accessing ArcGIS 10.2 for Server service |
Password (Pwd confirmation) |
Password confirmation |
Server normalized |
Normalized server URL |
ArcGIS Server Map Service properties
Note: An easy way to configure an ArcGIS Server Map Service is by using the wizard Add Service.
Note: An ArcGIS Server Map Service can also be preconfigured for the tool Add ArcGIS Online/Server Service in the list of ArcGIS Online/Server Services.
Note: The indication of the MapServer Endpoint URL has to be provided. The operations Map, Query and Data must be activated.
Note: See chapter Map Service Properties for details about the configuration of map service properties.
