Since version WebOffice 10.6 R2 SP2 webOffice allows you to enter property, region and deposit figures via GeoOffice online to query. For this purpose SOAP query Values such as property number or deposit number to GeoOffice online by means of a SOAP query. For these plots of land or deposit numbers, extracts can subsequently be created in the GeoOffice online can be purchased. GeoOffice online is used for this purpose as a tool in the WebOffice author or WebOffice author standalone integrated.



icon_comment

At GeoOffice online you need WebOffice usermanagement and an associated login is required. To get an associated login, contact your K5 service administrator! Your K5 service administrator will be happy to help you with this! This associated login is entered at the respective user.

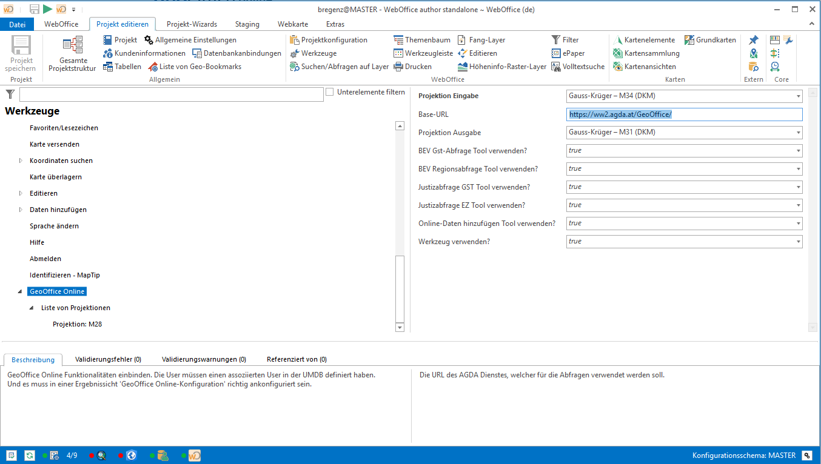

woas_tool_geoofficeonline_1

Configuration in WebOffice author standalone





Property

Label

Projection input

Projection of the coordinates when a region query is executed.

Base URL

The URL of the AGDA service, which should be used for the queries.

Projection output

Projection of output data for dxf or shape

BEV Gst query tool use?

Should the BEV Gst query tool be made available to the user?



The BEV Gst query tool transfers selected plots to GeoOffice online. These can be purchased and viewed there.

Use BEV region query tool?

Should the BEV region query tool be made available to the user?



With the BEV region query tool, coordinates are GeoOffice online and data from the property and owner directory as well as DXF or SHP can subsequently be transferred for this rectangle in GeoOffice online can be purchased.

Justice query GST tool use?

Should the justice query GST tool be made available to the user?



The judicial query GST tool allows to purchase cadastral data including owners of selected properties online in GeoOffice.

Use Justice Query EZ Tool?

Should the justice query EZ tool be made available to the user?



This tool allows to query the deposit numbers of selected plots. In GeoOffice online multiple sheets (sheet selection, A2 sheet, A2+B sheet, C sheet and owner) can be selected.

Online data add tool use?

Should the online data add tool be made available to the user?



Already in GeoOffice online purchased data can be integrated with the help of this tool. Here the respective folder is queried and available data in WebOffice integrated.



icon_comment

If you want to give a style to the uploaded data, you have to select the tool Add data tool, a style must be defined. More information can be found here.

It is possible to define for each type in GeoOffice online (plots, usable area, plot number) to define its own style.

Use Tool?

Specifies whether the tool or function is to be used in WebOffice client or not.



icon_comment

So that the queries can be sent to GeoOffice online it is necessary to configure the GeoOffice online configuration at the node View result view to be configured. Only then will the tool also be displayed.

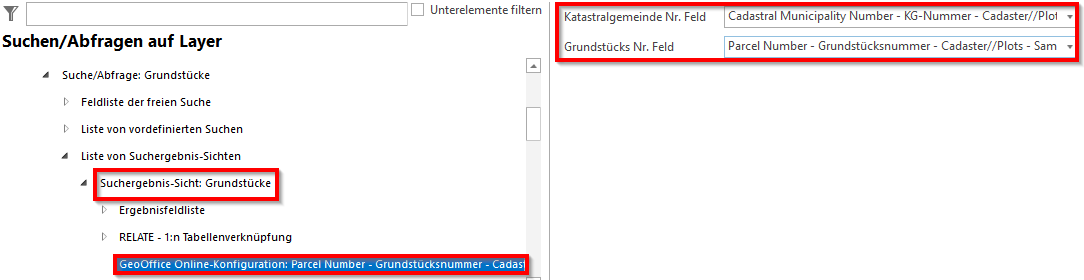

Click on the respective search result view on the right! Enter the name of the field of the respective cadastral municipality number for Cadastral municipality no. field and the name of the field of the respective property number for Property no. field.

Click on the respective search result view on the right! Enter the name of the field of the respective cadastral municipality number for Cadastral municipality no. field and the name of the field of the respective property number for Property no. field.

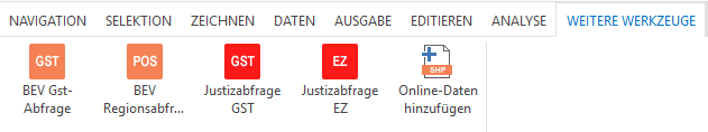

woas_tool_geoofficeonline_2

GeoOffice online tools in WebOffice core client

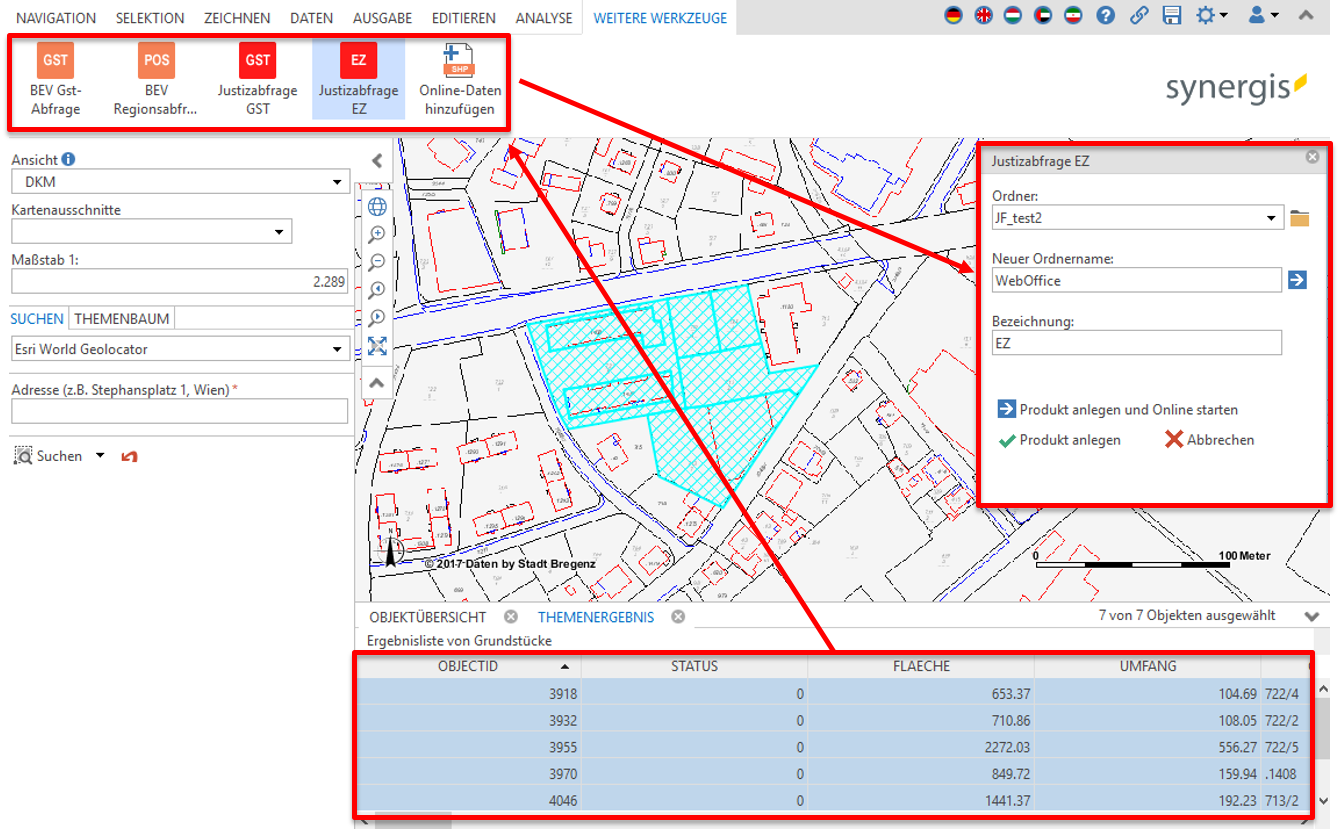

woas_tool_geoofficeonline_3

After the selection of properties in the WebOffice core - Client, a folder can be selected in GeoOffice online. The product is created in this. No costs are incurred here yet.



After the product has been created in the WebOffice core - Client, the following opens GeoOffice online. The first thing displayed here is how high the costs are for the respective product. With the help of a SOAP query, the values of the selected properties (such as cadastral municipality number, insertion number or property number) are sent to GeoOffice online transferred. If the object is purchased, the status changes and the information can be displayed directly in GeoOffice online.

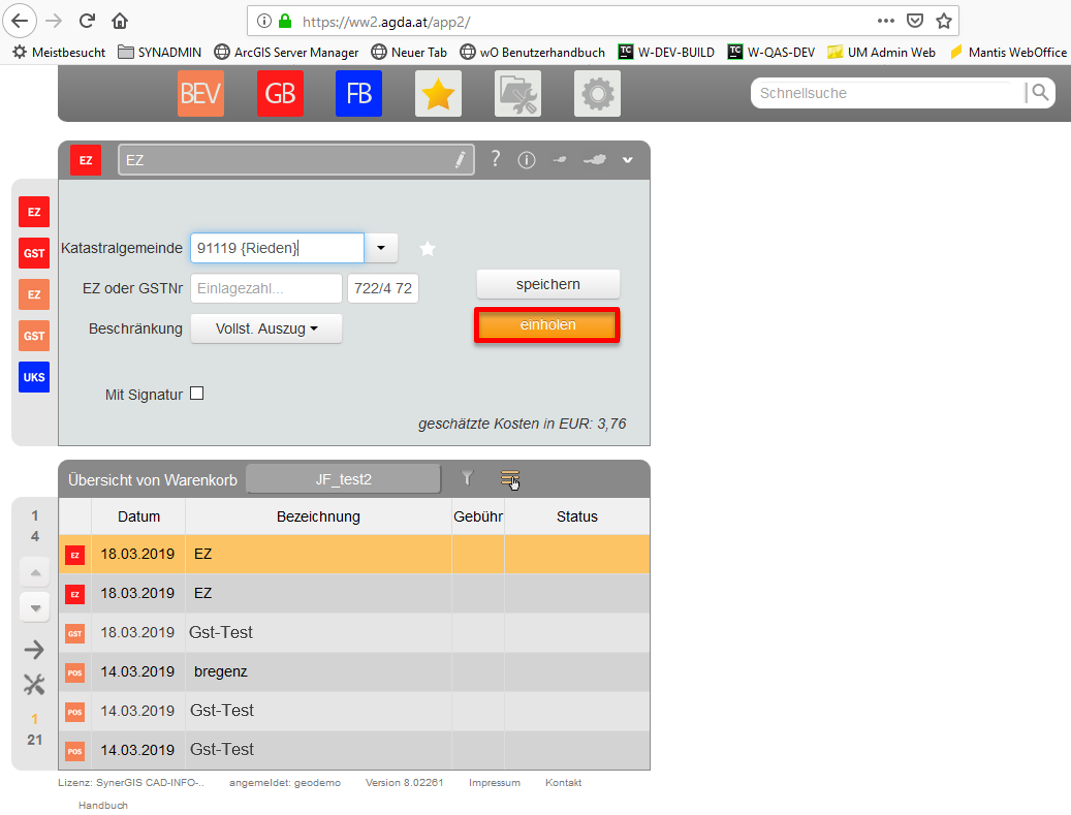

woas_tool_geoofficeonline_4

GeoOffice online view
