By configuring Export profiles in WebOffice author standalone a specific link will be established to the WebOffice extract server configuration files.



There are two supported configuration scenarios:

You may either configure no export profiles in WebOffice author standalone at all. Then WebOffice 10.9 SP1 will provide all extract profiles that are saved in the export configuration directory (default path C:\arcgisserver\directories\WebOfficeExport\configuration)

You can explicitly configure export profiles in WebOffice author standalone. Then WebOffice 10.9 SP1 will only provide the extract profiles that have been configured explicitly in the WebOffice 10.9 SP1 project configuration, although there might be more available in the configuration directory.



icon_cross-reference

To configure an export profile for raster data (GeoTIFF), see chapter Export Profile Raster Data for details.

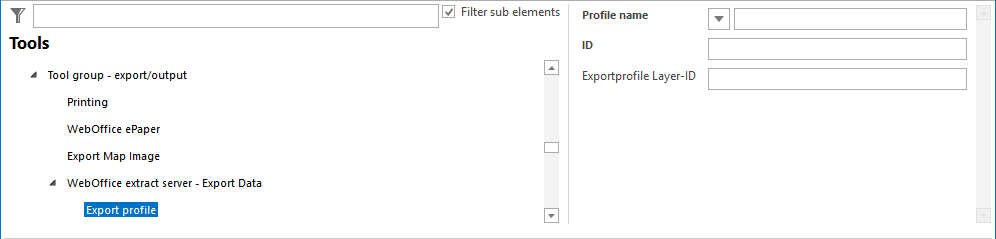

Export profiles configuration

Export profiles configuration

Property

Description

Profile name

Name of extraction profile when using WebOffice extract server (display)

ID

Profile ID from export configuration files

Exportprofile Layer-ID

If the export profile contains a Layer-ID different to the default Layer-ID (TopLevelGroup//Layernam

Export profiles properties



In general, all possible export file output formats are available for the respective export profile. By configuring Export File Output Formats it is possible to restrict these formats to some specific ones which are then available for selection in the WebOffice 10.9 SP1 client.



icon_cross-reference

See chapter WebOffice extract server for details about the tool configuration in WebOffice author standalone.
