Configure the function field e-mail if you want to display an e-mail address on your print output.

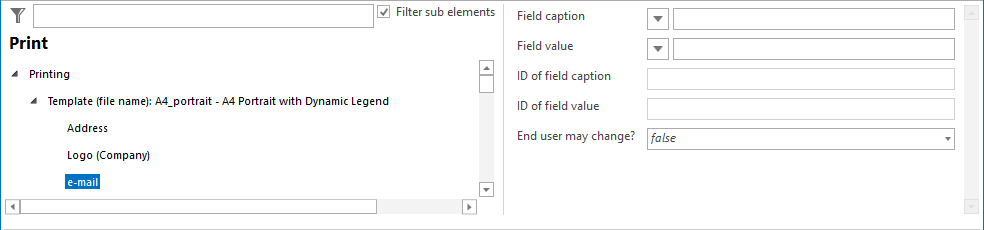

E-Mail configuration

E-Mail configuration



Property

Description

Field caption

Caption in print template. Standard ratios are applied if there are no language-specific terms are specified.

Field value

Value in print template.

icon_comment

If User may change? is set to Yes you may also provide a list of possible values to the user. Use the | symbol as delimiter between the possible values, e.g. e-mail 1|e-mail 2. The first value will be the default value. If you want to provide several values but no default value start your listing with a | symbol, e.g. |e-mail 1|e-mail 2.

ID of field caption

The ID for this predefined function field is always email_caption.

ID of field value

The ID for this predefined function field is always email_value.

End user may change?

Specifies whether the user my change or set the value in the print tool form (Yes) or not (No).

E-Mail properties



Make sure that your print template (.layout file) contains the function fields email_caption and email_value. Only then, the configuration in WebOffice author standalone will have an impact.



icon_cross-reference

•See chapter Printing (Legacy) for details about the tool configuration in WebOffice author standalone.

•See chapter Template (File Name) for details about the configuration of print templates.

•See https://resources.weboffice.vertigis.com/Documentation/WebOffice/WPA/en/index.html for details about working with WebOffice plot author.

•See chapter Printing (Legacy) for the tool appearance in the WebOffice core client.
