Configure the function field Division if you want to display information about the company division on your print output.

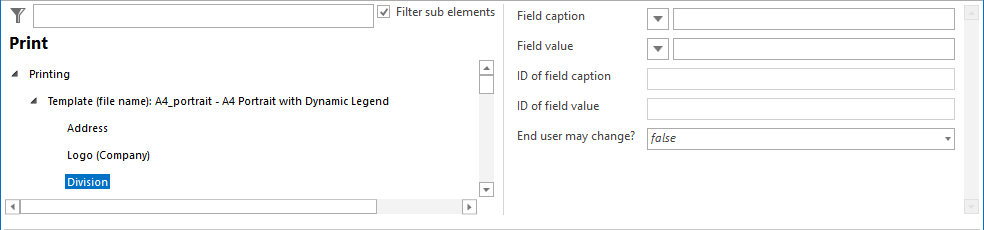

Division configuration

Division configuration



Property

Description

Field caption

Caption in print template. Standard ratios are applied if there are no language-specific terms are specified.

Field value

Value in print template.

icon_comment

If User may change? is set to Yes you may also provide a list of possible values to the user. Use the | symbol as delimiter between the possible values, e.g. division 1|division 2. The first value will be the default value. If you want to provide several values but no default value start your listing with a | symbol, e.g. |division 1|division 2.

ID of field caption

The ID for this predefined function field is always user_division_caption.

ID of field value

The ID for this predefined function field is always user_division_value.

End user may change?

Specifies whether the user my change or set the value in the print tool form (Yes) or not (No).

Division properties



Make sure that your print template (.layout file) contains the function fields user_division_caption and user_division_value. Only then, the configuration in WebOffice author standalone will have an impact.



icon_cross-reference

See chapter Printing (Legacy) for details about the tool configuration in WebOffice author standalone.

See chapter Template (File Name) for details about the configuration of print templates.

See https://resources.weboffice.vertigis.com/Documentation/WebOffice/WPA/DE/index.html for details about working with WebOffice plot author.

See chapter Printing (Legacy) for the tool appearance in the WebOffice core client.
