This configuration assistant helps you to integrate an external application or website in the WebOffice 10.9 SP1 project configuration.

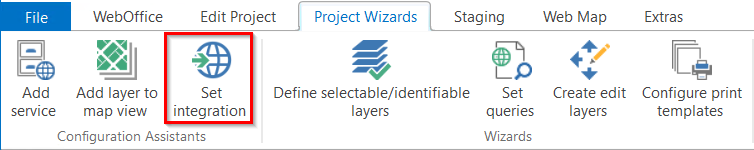

"Set integration"- configuration assistant in the menu of the WebOffice author standalone

"Set integration"- configuration assistant in the menu of the WebOffice author standalone



Step 1: Select search result

Select the search result from which you want to link to the external application or website.

First, a source containing the desired search result is selected in the first drop down. The following sources can be selected:

Layer

Table(ArcGIS Server)

Table (JDBC)



In the second step, all configured search results of the selected source are listed in the second dropdown. Select the search result for which you want to configure the linkage.



After you have made your selection, click Next.

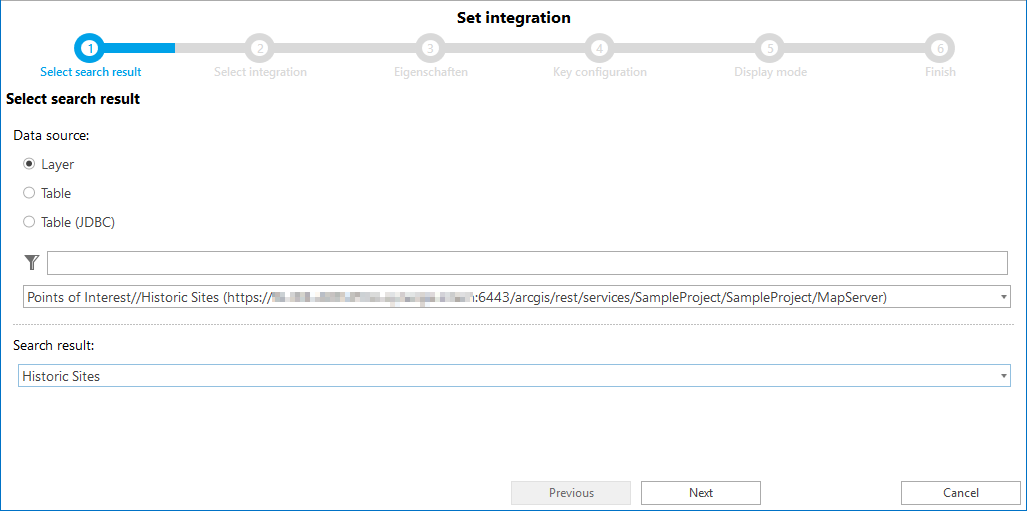

Selection of the search result for which the integration is to be created.

Selection of the search result for which the integration is to be created.



Step 2: Select integration

In this step, you select which type of integration you want to create. The following types are available:

Hyperlink

External application

VertiGIS FM

In addition, an existing or a new integration can be selected. If an existing integration is selected, the parameters of this integration are used for the next step.



icon_comment

The VertiGIS FM option is a special case of the external application option, in which certain options are predefined VertiGIS FM-specifically. In particular, the HTTP parameter name is predefined with values, the identification of the target window with to_geoman and the icons for the application call are also VertiGIS FM-specific.

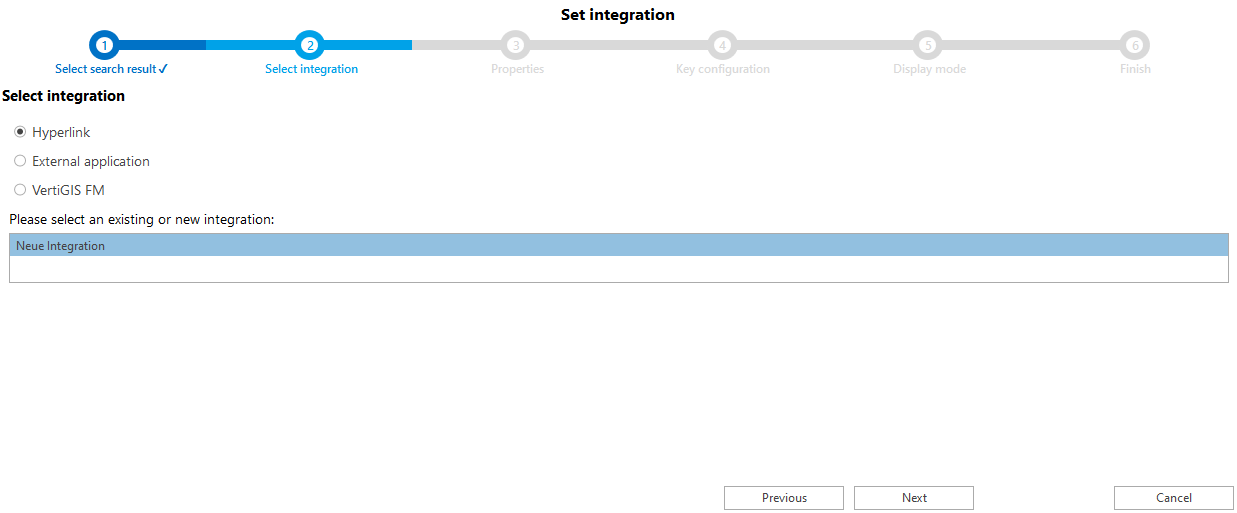

Select integration

Select integration



Step 3: Properties

Fill in all the necessary properties for your integration. The parameter application name is mandatory and therefore has to be entered.



icon_cross-reference

For detailed description of the single parameters, see chapter Hyperlink or Integration (Call FROM WebOffice)

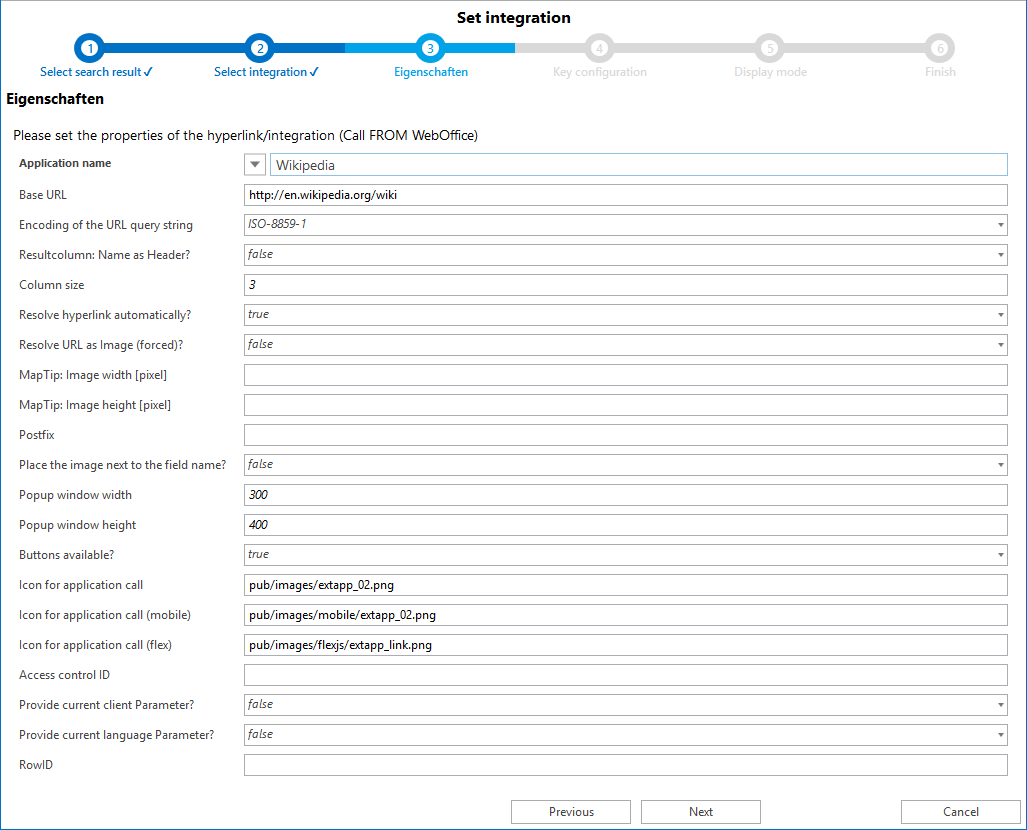

Properties

Properties



Step 4: Key configuration

This step varies depending on the type of integration you chose to create.

If you chose Hyperlink in step 2 you may select the result field that should serve as the key field. Additionally, you can decide whether the field name should be shown or not.



icon_cross-reference

For detailed description of parameters, see chapter Hyperlink.

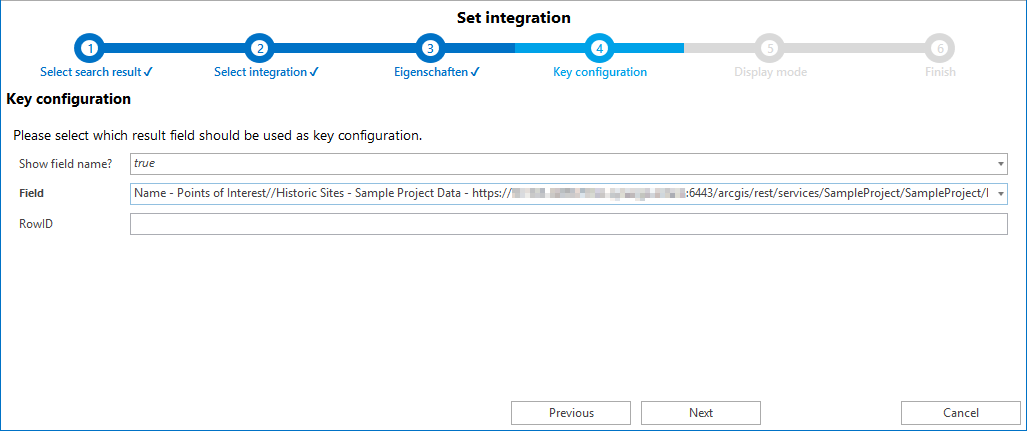

Key configuration

Key configuration



If you chose to configure an external application you will first have to decide whether to use concatenated or separated parameters.



icon_cross-reference

For detailed description of parameters, see chapter Integration (Call FROM WebOffice).

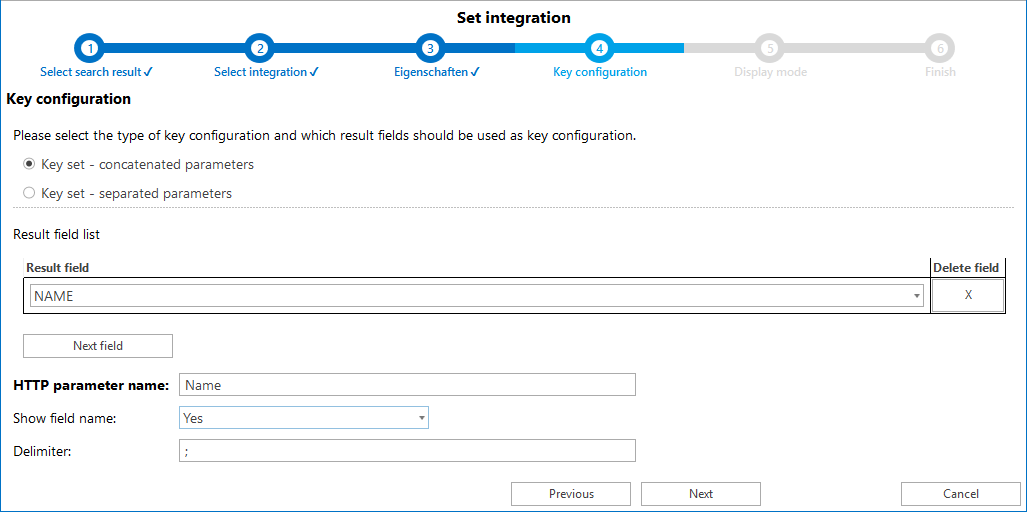

Key configuration for concatenated parameters

Key configuration for concatenated parameters

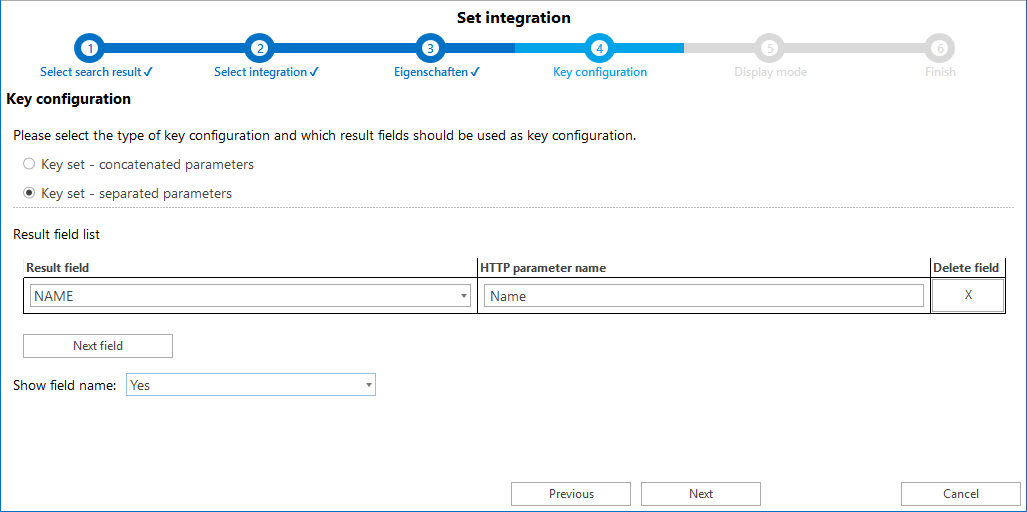

Key configuration for separated parameters

Key configuration for separated parameters



Step 5: Display Mode

Decide whether the display mode should be either iFrame or Pop Up. If necessary configure a HTML target and change the window type/options.



icon_cross-reference

For detailed description of the display modes, see chapter Display Mode.

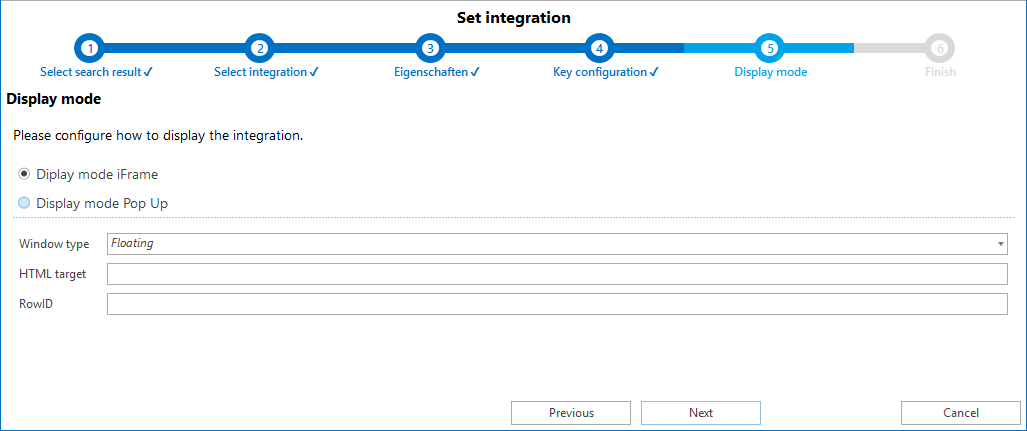

Display Mode

Display Mode



Step 6: Finish

Within the last step of the wizard you will see a summary of your configuration.

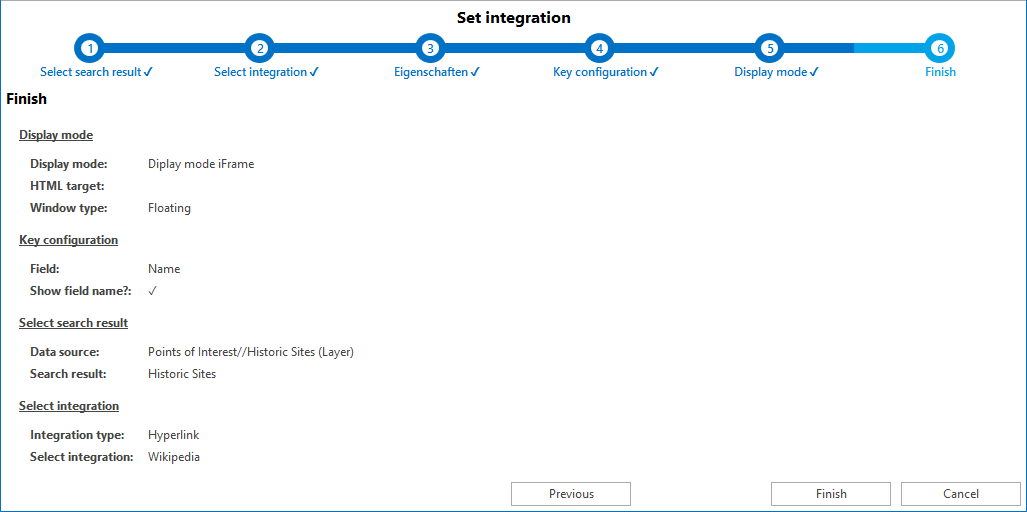

Summary

Summary



icon_cross-reference

See chapter Integration of External Application for details about the configuration in WebOffice author standalone.
