The Filter Definition defines dynamic filtering of data displayed both in the map and the search result views.

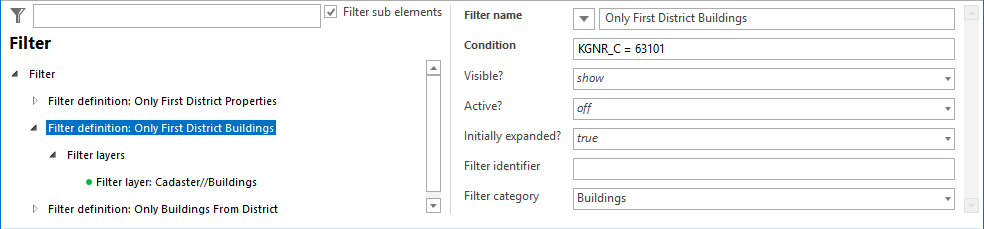

Filter definition configuration

Filter definition configuration



Property

Description

Filter name

Name of the filter displayed in the stack menu

Condition

Filter condition (WHERE clause)

If the field uses an Esri Domain or Esri Subtype, no condition is necessary but only the definition of the field name. The user will get the list of values defined by the domain or subtype.



If the field is a common attribute field then the condition has to contain a field name, an operator and an expression. (e.g. STREET = Bahnhofsplatz).



icon_comment

- The field name is case sensitive

- If the expression is a string (Text) use single quotation marks (e.g. Bahnhofsplatz)

- Every layer of the List of filter layers has to contain this field



Standard SQL operators can be used, e.g.

- STREET = My condition

- STREET LIKE My condition%

- STREET IN (My condition, my 2nd condition)

- NUMBER = 1

- NUMBER > 1 AND < 10

- NUMBER IN (1,2,3,4,5,6,7,8)

- STREET = My condition OR STREET = My 2nd condition



icon_cross-reference

It is possible to specify a parameter instead of a field value. Valid parameters are <param1>, <param2>, <param3>, <param4>. For details on how to specify these parameters see chapter Filter Parameters.

Visible?

Used to define the visibility of the parametrized (only) filter.

- show: The filter will be shown (visible) in the GUI.

- hide: The filter will be hidden, and the user could manipulate the filter using the scriptAPI only.

Active?

Specifies whether the parametrized (only) filter is active right from the start.

- on: filter is activated

- off: filter is deactivated (default)

Initially expanded?

Defines whether the filter parameters shall be expanded at project start (true) or not (false).

icon_comment

This setting can only be used for the WebOffice core client.

Filter identifier

Specifies the unique ID used in the scriptAPI.

icon_comment

Filter identifier may not contain spaces or special characters. Only combinations of the following letters and numbers are permitted or are intended to be used:

▪A to Z (uppercase letters)

▪A to z (lowercase letters)

▪0 to 9 (numeric characters)

Filter category

Category for displaying filters.

icon_cross-reference

See chapter List of Filter Categories for details about configuring filter categories.

Filter definition properties
