It is possible to specify the Display Mode that will be used to open the hyperlink / integration.

Choose between:

•Display mode IFrame: External web pages then get embedded in a WebOffice 10.9 R4 client window. It does not matter whether a pop up blocker is active or not.

•Display mode pop up: External web pages will be opened in a browser pop up window. Pop ups must then be allowed for WebOffice 10.9 R4 client web page in order to correctly display contents of the integrated web page. You may use this option if e.g. the layout of the integrated web page does not fit to WebOffice 10.9 R4 client.



icon_comment

The way how a browser pop up opens (i.e. in a new window or in a new tab) depends on browser settings and / or security settings of the website to be opened.

Display Mode IFrame

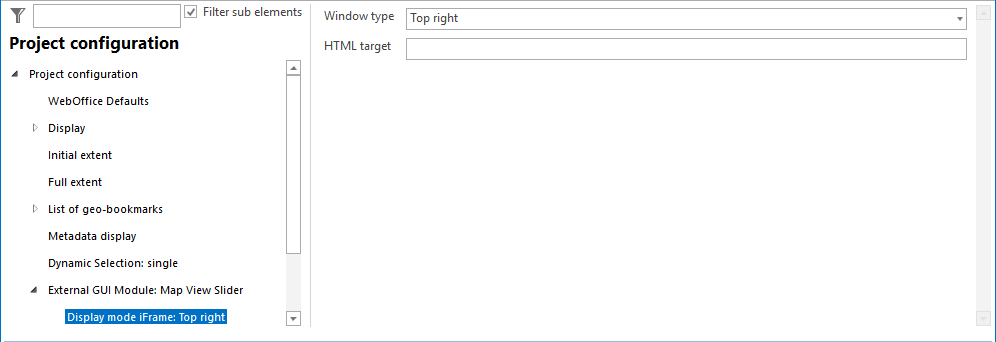

Display mode IFrame configuration

Display mode IFrame configuration



Property

Description

Window type

The window type attribute enables you to control the way the external web page is displayed. You may choose either

•top left

•bottom left

•top right

•bottom right

icon_comment

In WebOffice core client these four types are always docked in the Project Center.

•floating

•Hidden (the content of the integrated web page will not be displayed at all in the WebOffice 10.9 R4 client)

icon_comment

Use this option for VertiGIS URL Integrator calls.

HTML target

Specifies the HTML target to be used. This is useful for accelerating calls (especially repeated calls) to other applications and for controlling in which window a specific web application gets (re)opened.

icon_comment

•For example, use the HTML target to_weboffice if you want to replace the WebOffice 10.9 R4 client with the external application / hyperlink.

•If no value is specified the given name in the configuration of the coupled application is used as identifier.

Display mode IFrame properties



icon_comment

Please consider, that floating is the only relevant window type for the WebOffice core client. If you choose any other option for the window type, your IFrame window will be integrated within the project center on the left side of the WebOffice core client.

Display Mode Pop Up

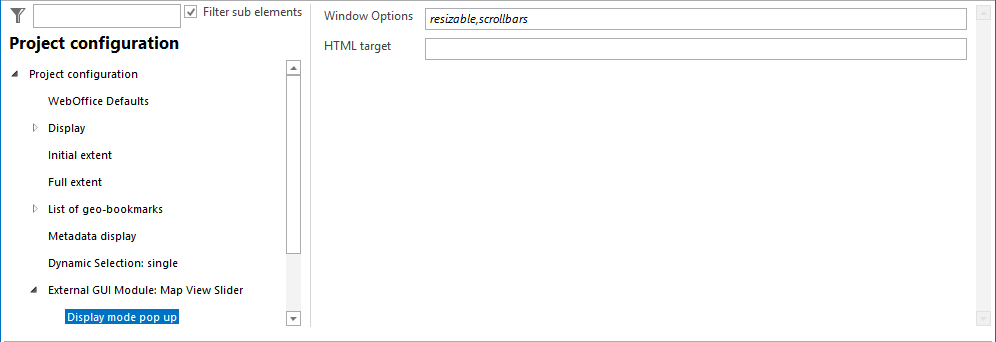

Display mode pop up configuration

Display mode pop up configuration



Property

Description

Window Options

Defines the options (GUI elements) for the popup window.

Press the arrow symbol on the right hand side of the input field to get a list of options to choose from.



Window options

Window options

HTML target

Specifies the HTML target to be used. This is useful for accelerating calls (especially repeated calls) to other applications and for controlling in which window a specific web application gets (re)opened.

With this attribute, it is possible to alternately display various coupled applications in a single browser window or display each application in a single window, so that a number of various application windows are displayed at the same time.

icon_comment

•For example, use the HTML target to_weboffice if you want to replace the WebOffice 10.9 R4 client with the external application/hyperlink.

•If no value is specified, the given name in the configuration of the coupled application is used as identifier.

Display mode pop up properties
