Group of Edit fields

WebOffice 10.9 SP1 also offers the possibility to group editing fields in the editing form. This is useful, for example, if a large number of edit fields are configured for the editing table. By configuring groups of editing fields, a better overview can be created in the editing form of WebOffice 10.9 SP1 Client.

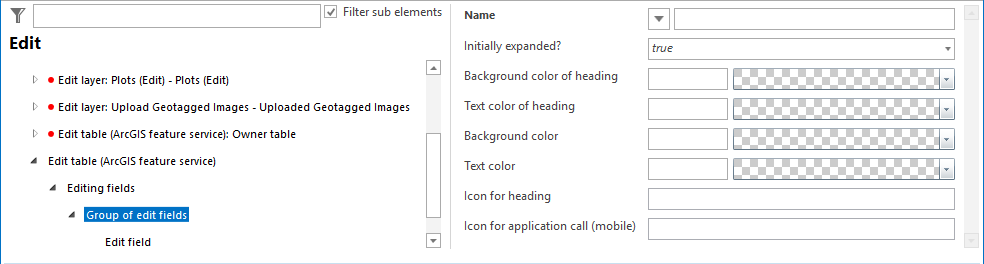

Group of edit fields - configuration

Group of edit fields - configuration



Property

Description

Name

Name of the editing field group

Initially expandes?

Determines whether the categorized group of edit fields should be displayed initially expanded (only WebOffice core Client)

Background color of heading

Background color of the header of the edit filed group

Text color of heading

Color of the header of the editing field group

Background color

Backgroud color of the edit field group

Text color

Text color of the edit field group

Icon for heading

URL of the image to be displayed as a pictogram in the title of the edit field group.

Relative paths within the WebOffice web application (e.g. pub/images/example16x16. png) and valid HTTP URLs are allowed.

The extension (e. g. .gif or .jpg etc.) must be specified.

The icon must have a size of 16x16 pixels.

Icon for application call (mobile)

In WebOffice, ten different templates are available in the directory pub/images/mobile (extapp_01. png to extapp_10. png)

Properties - Setting for group of edit fields



The following screenshots show an exemplary configuration of grouped editing fields in the editing form of WebOffice core Client. The display of the color scheme and the use of icons per group can be adjusted individually.

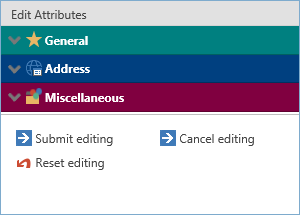

Group of edit fields - collapsed

Group of edit fields - collapsed

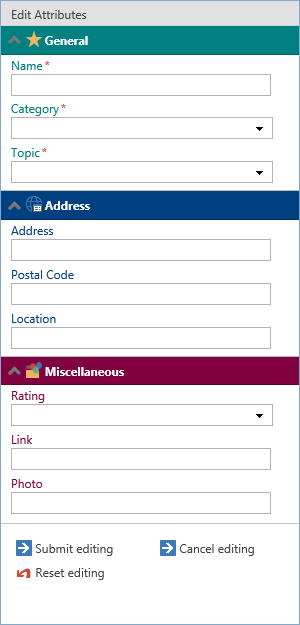

Group of edit fields - expanded

Group of edit fields - expanded



icon_cross-reference

See Chapter Edit field for detailed configuration of the individual editing fields within the group of Editfields.

See Chapter Edit Table for information on configuring edit tables.

See Chapter Edit table (ArcGIS Feature Service) for details to edit tables in WebOffice core client
