Configure ArcGIS Server Publisher User Account

WebOffice 10.9 R3 must connect via an ArcGIS Server Publisher user to the ArcGIS Server to read out various important configuration settings of the ArcGIS Server.

Procedure

To set the ArcGIS Server Publisher user account, perform the following steps:

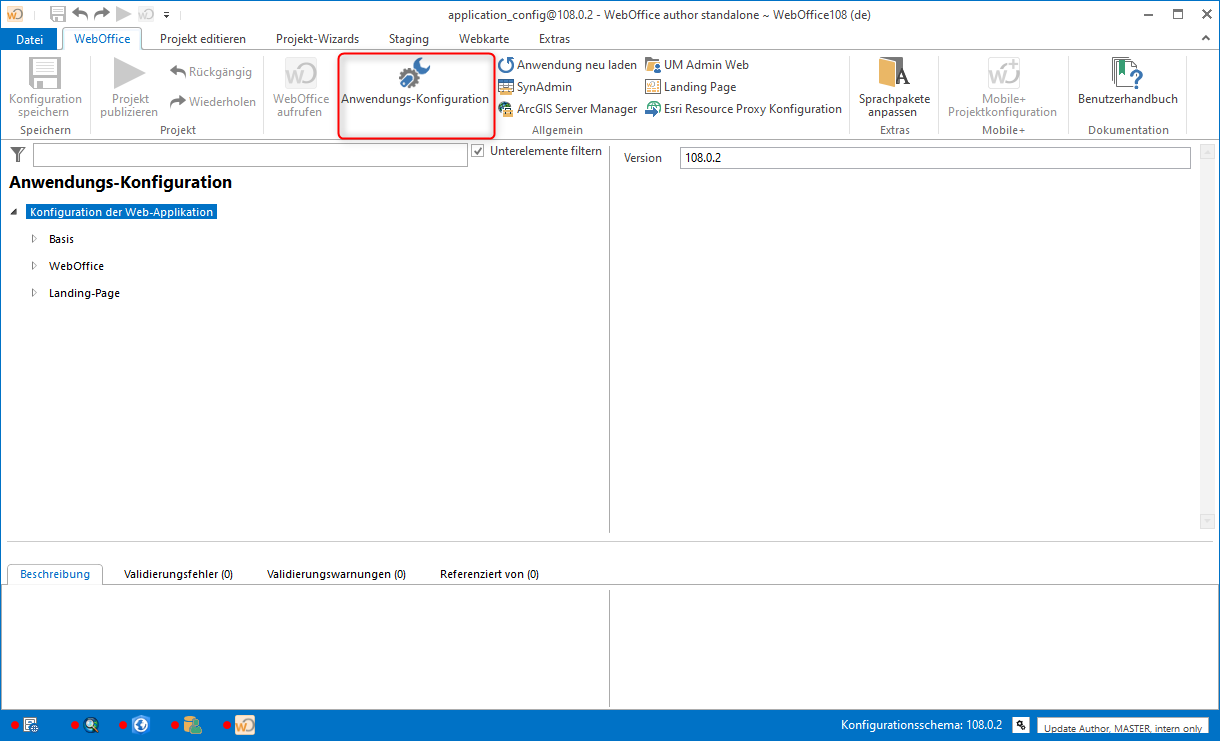

1.Open Application Configuration


Open the application configuration

Open the application configuration

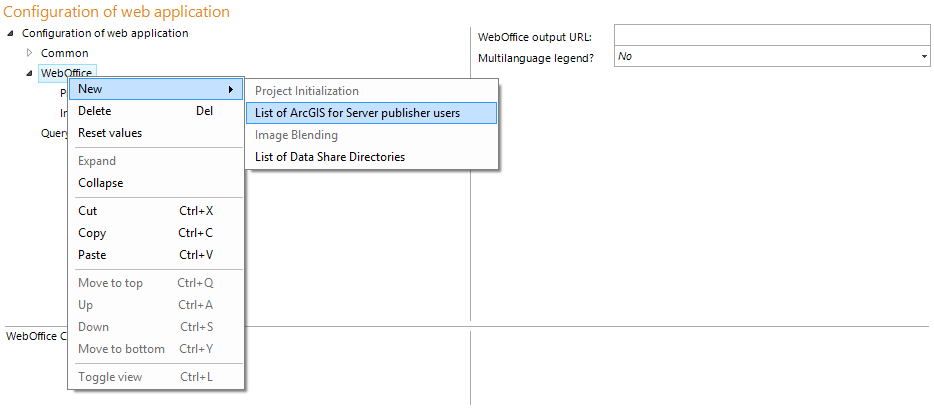

2.Add element List of ArcGIS Server Publisher Users


Add "List of ArcGIS Server publisher users"

Add "List of ArcGIS Server publisher users"

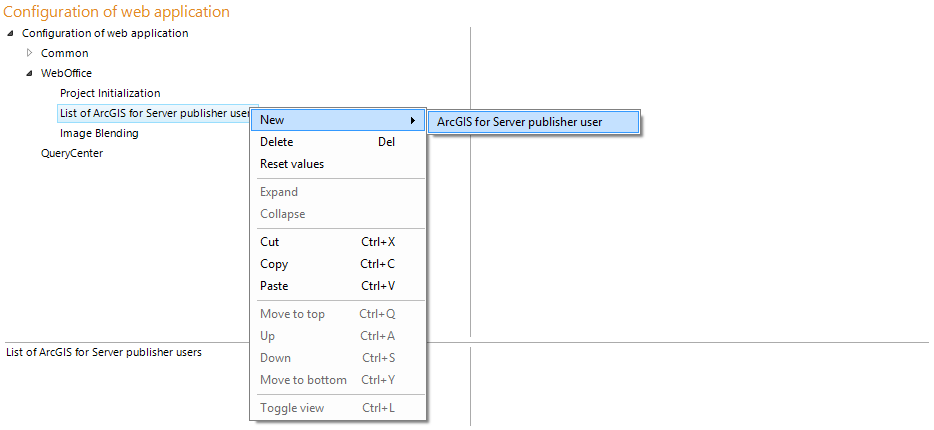

3.Add element ArcGIS Server Publisher User


Add "ArcGIS Server publisher user"

Add "ArcGIS Server publisher user"

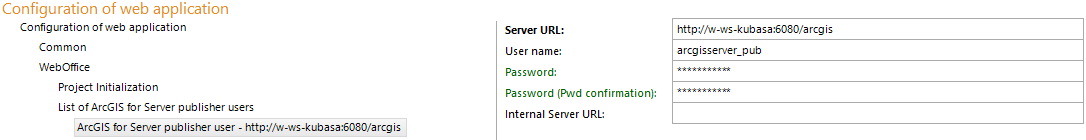

4.Enter required parameters


Configure "ArcGIS Server Publisher User"

Configure "ArcGIS Server Publisher User"



Parameter

Description

Server

Host name of ArcGIS Server: https://<server name>[:<port>]/arcgis/

(usually http://myserver:6080/arcgis)

icon_comment

The URL will be http://<Server:Port>/<Instancename[arcgis]>

User

User name of the ArcGIS Server Publisher User that was created at the first login to ArcGIS Server Manager.

icon_comment

The specified user is at least a member of an ArcGIS Server Publisher role.

Password

ArcGIS Server Publisher password.

Internal Server URL

Connection Information used from WebOffice for administrative Read Access for the ArcGIS Server. This Configuration is necessary if the GIS Server Access is protected through a Web Adaptor.
http://<Server:Port>/<Instancename[arcgis]>

ArcGIS Server Publisher user properties

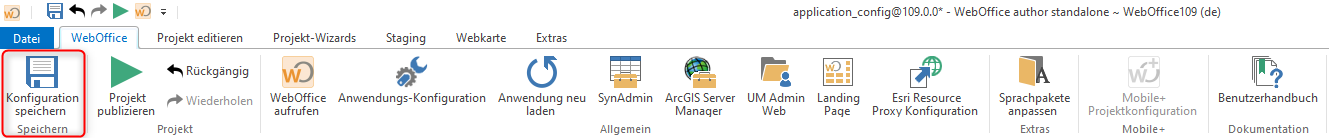

5.Save application configuration


Save the application configuration

Save the application configuration

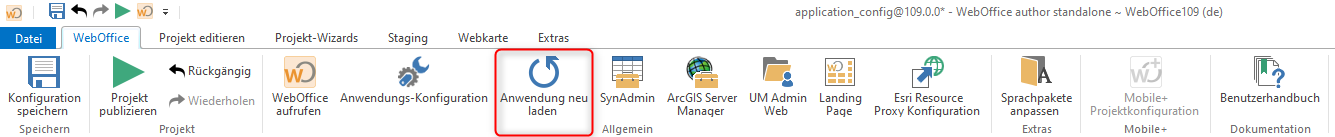

6.Reload application configuration


Reload application

Reload application



icon_cross-reference

For more information on how to configure an ArcGIS Server Publisher user account in WebOffice author: List of ArcGIS Server Publisher users.
