a) Publish to an ArcGIS Enterprise Portal

This chapter describes the publishing process (sharing) against a Portal for ArcGIS in ArcGIS Pro.

icon_comment

Directly on the GIS server (where VertiGIS Studio Printing Engine is published) no ArcGIS Pro installation is mandatory. The administration of layouts and publishing of Web Tools can be done from an administration computer.

icon_cross-reference

If you want so publish against a ArcGIS Server Standalone please see chapter b) Publishing against an ArcGIS Server Standalone for further instructions.

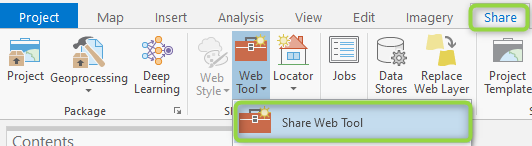

The first task VertiGIS Print Task is published in ArcGIS Pro via ribbon Share and Web Tool > Share Web Tool.

wox_install10_2

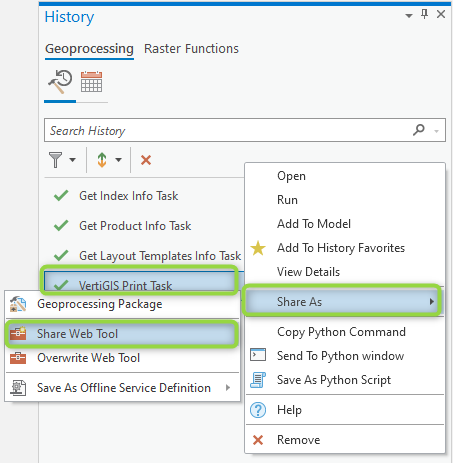

Alternatively, the first task VertiGIS Print Task can also be published with Share as Web Tool by right clicking on the result.

wox_install10_1

icon_comment

•Please enter the following name for the geoprocessing service: VertiGIS_Printing_Tools.

•The other two tasks Get Layout Templates Info Task and GetIndexInfo are NOT published separately - but instead added as content when publishing the first Tasks! (see illustration - Tab Content).

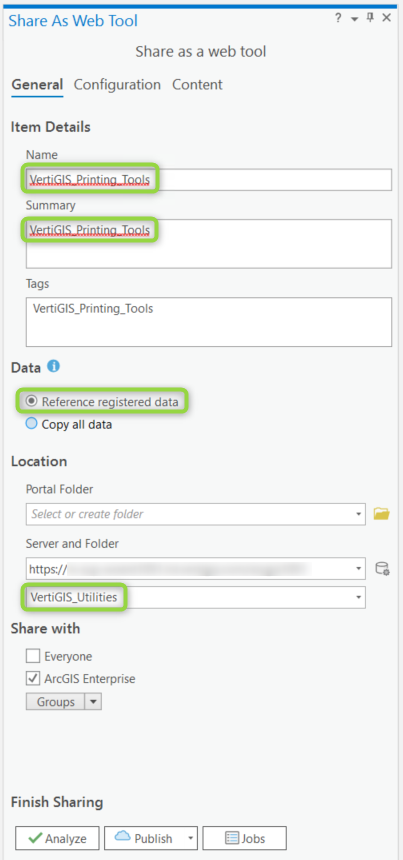

Please note the following settings:

•ALL mandatory fields assigned (also all description fields).

•Activate Reference registered data

•For the ArcGIS Enterprise Connection, also select the VertiGIS_Utilities subfolder.

•Under the tab Configuration you can set the asynchronous (recommended) or synchronous execution of the tool. The Message Level can be set from ERROR to INFO for the purpose of error analysis if necessary.

•Under the tab Content all three tasks have to be added!



wox_install10



Tab Content

Tab Content

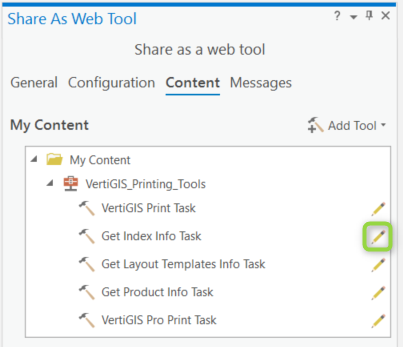

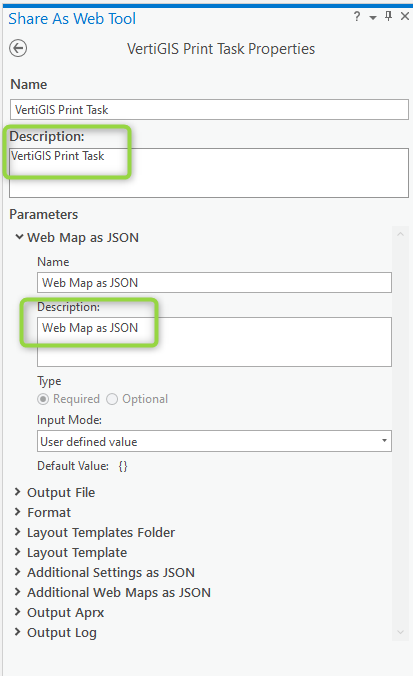

The descriptions can be entered for each task via the editing pen (tool properties). The pen should also be used in case pre-filled information needs to be rewritten.



wox_install11c



wox_install11d



Then click on Analyze. Correct any errors that may have occurred or complete the tool descriptions. Then click on Publish.



After successful publishing, the structure of the GP service VertiGIS_Printing_Tools together with the GP tasks should look as follows:



wox_install13



The installation and setup of the GP service is completed. Continue with the chapter Configuration as a Tool in WebOffice.
