Restrictions for Layers

Specifying Restrictions for Layers, you can implement access rights for one or multiple specific layers.



icon_cross-reference

With WebOffice 10.9 R4 layer restrictions are also supported for the Overview Map.

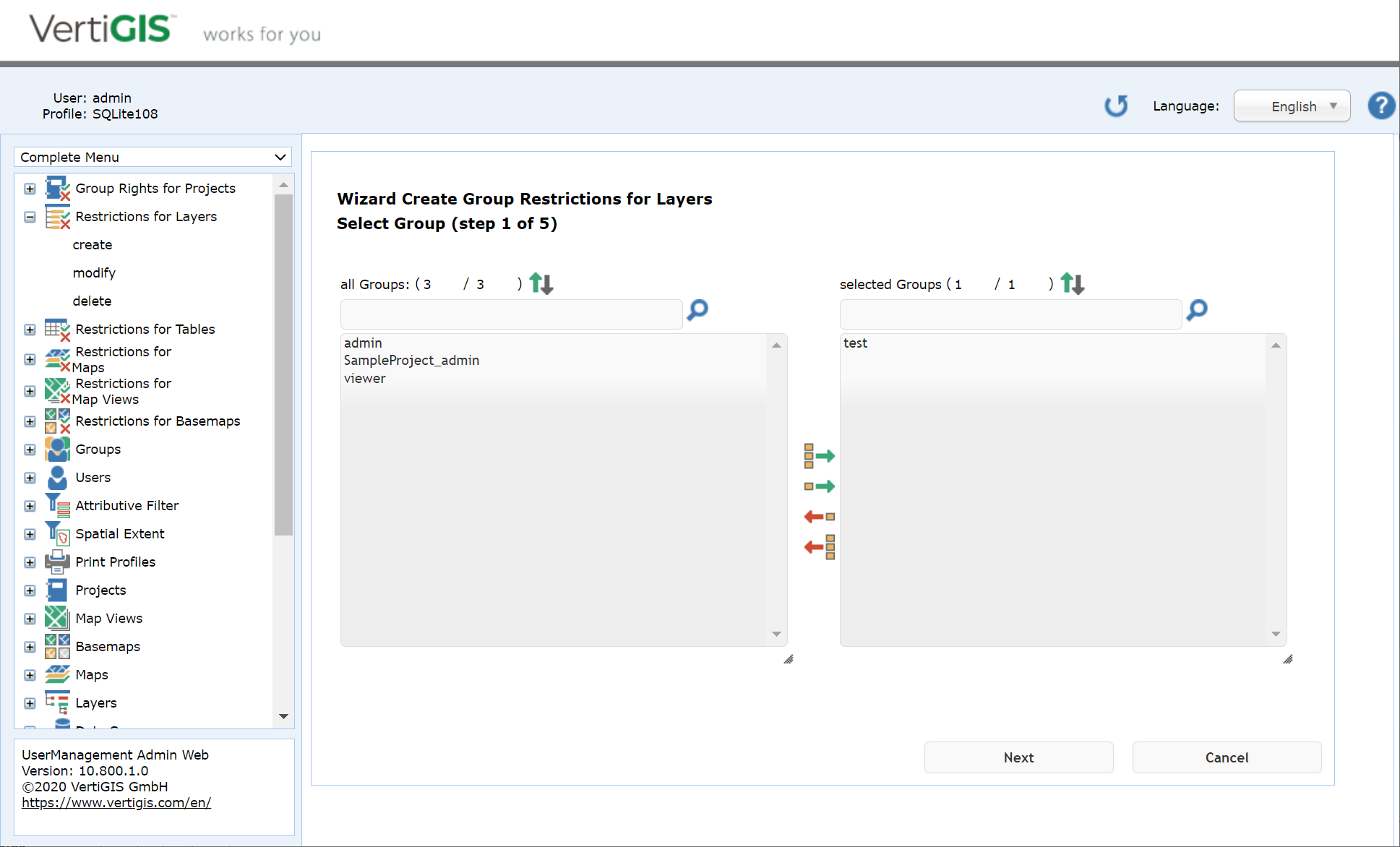

Create group restrictions for layers - step 1 select group

Create group restrictions for layers - step 1 select group



In the next step you need to select the map service that contains the layer(s) you want to restrict.

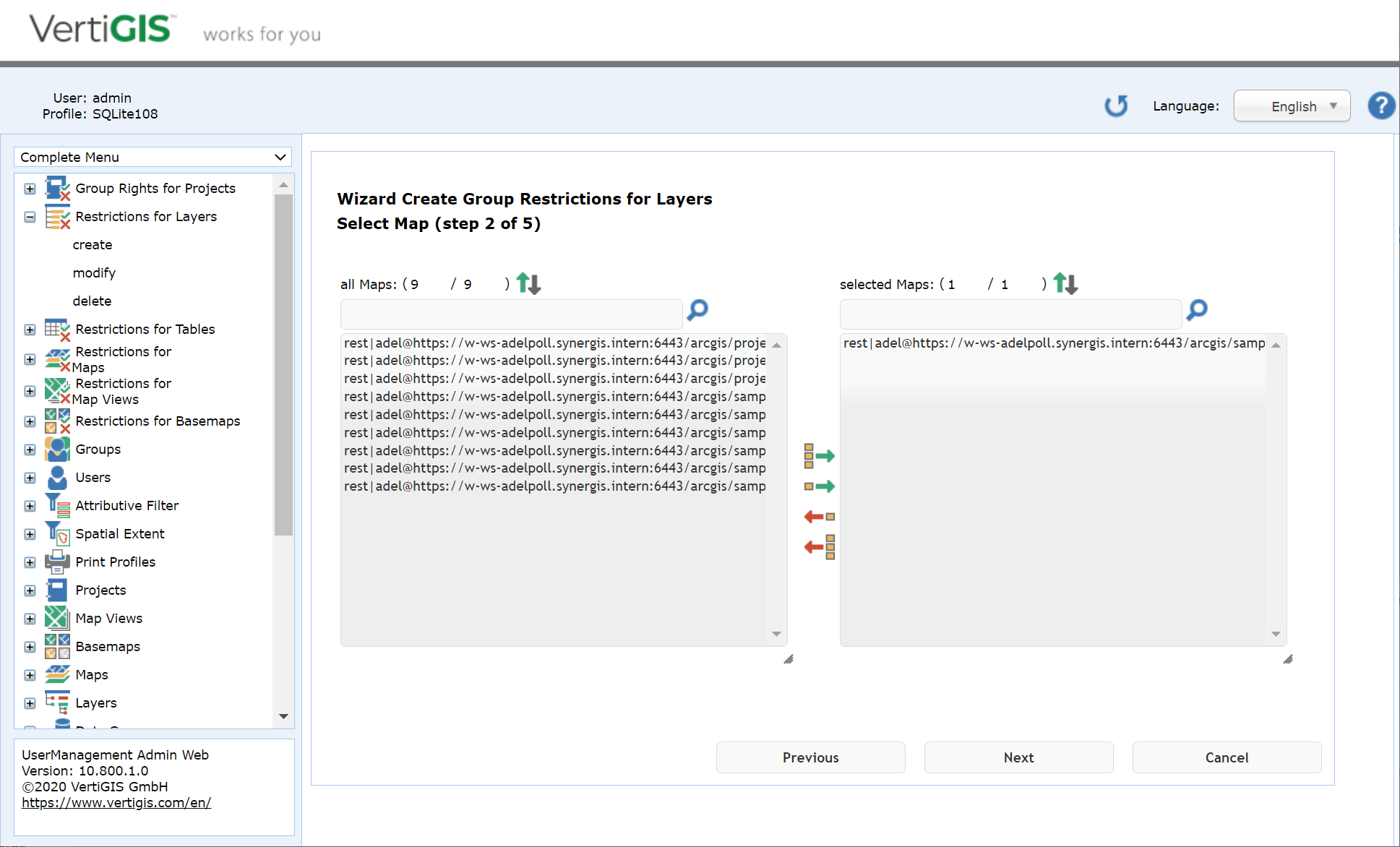

Create group restrictions for layers - step 2 select map

Create group restrictions for layers - step 2 select map



In the next step all layers of the map get listed. Select all layers for which you want to configure a layer restriction.

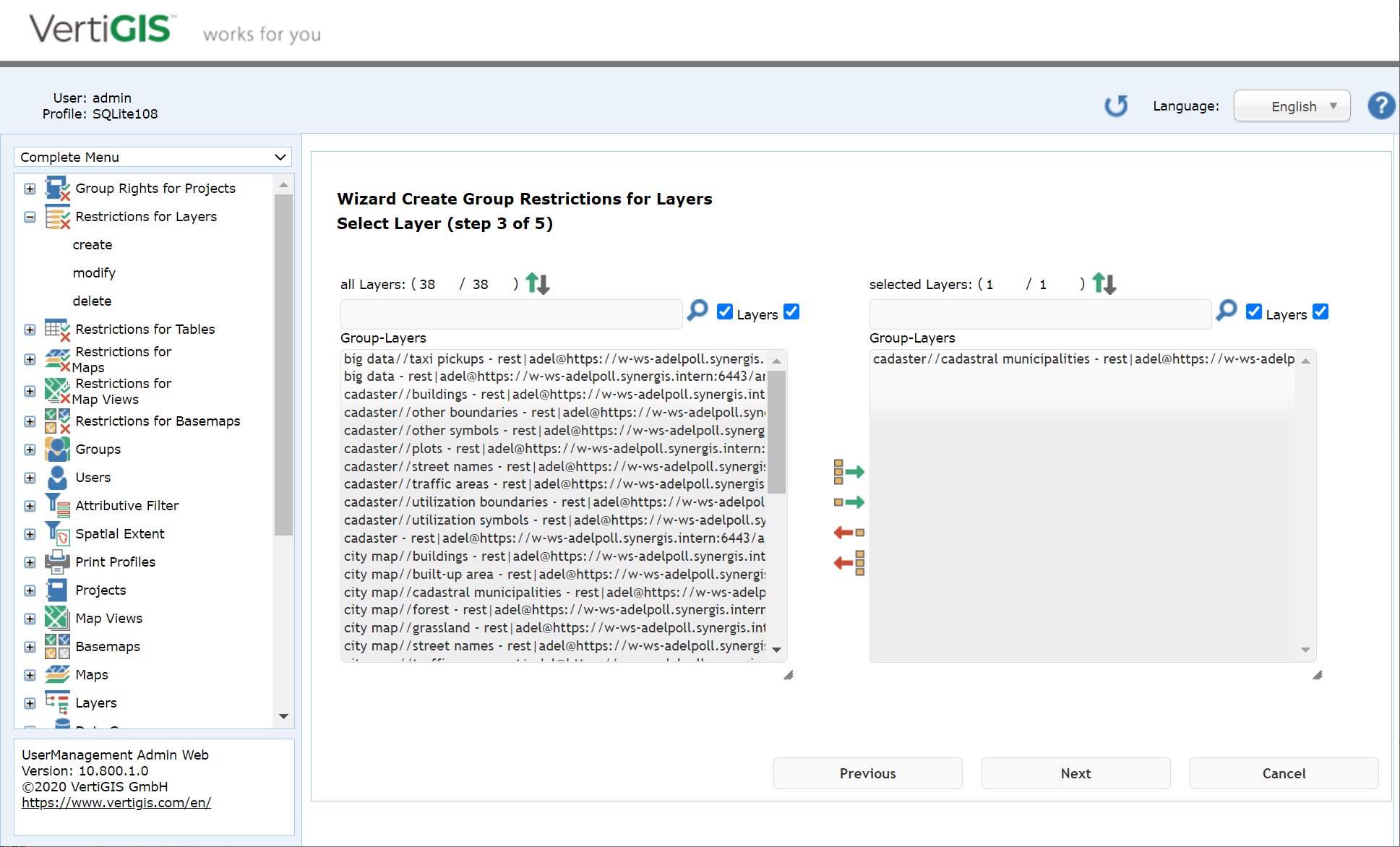

Create group restrictions for layers - step 3 select layer

Create group restrictions for layers - step 3 select layer



icon_comment

Restrictions for layers only refer to layer level and can not be inherited (e.g. from a group layer).



In the next step, the detailed group rights get specified.

In the top part of the wizard page, you may assign an existing filter object or create a new filter. The example below shows a filter that will restrict the layer Cadastral Municipalities" to objects with value 63101 in the field KGNR.

In the bottom part of the wizard page, you can configure the general access rights for the layer. The example below allows the users of the specified group to see the layer, use queries and spatial selections/identifies for the layer but they are not allowed to edit this layer in any way.



icon_comment

•Regarding editing restrictions you can differ between "Edit Attributes" and "Edit Geometry".

•If you want to be able to search or spatially select on a layer then the "Display" option must be always set as a prerequisite.

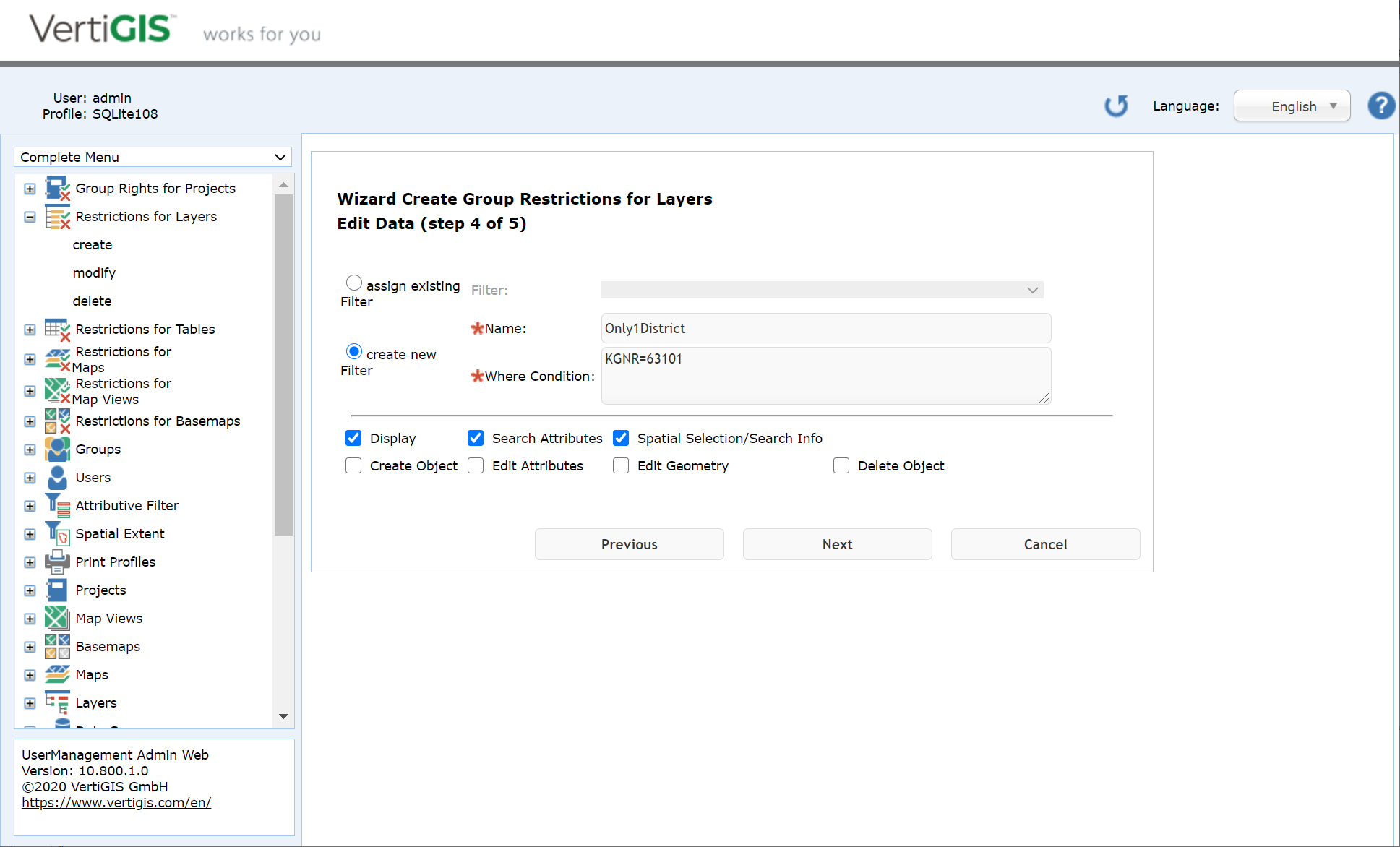

Create group restrictions for layers  - step 4 edit data

Create group restrictions for layers  - step 4 edit data



In the final step you get a resume. Click the Finish button for storing your edits.

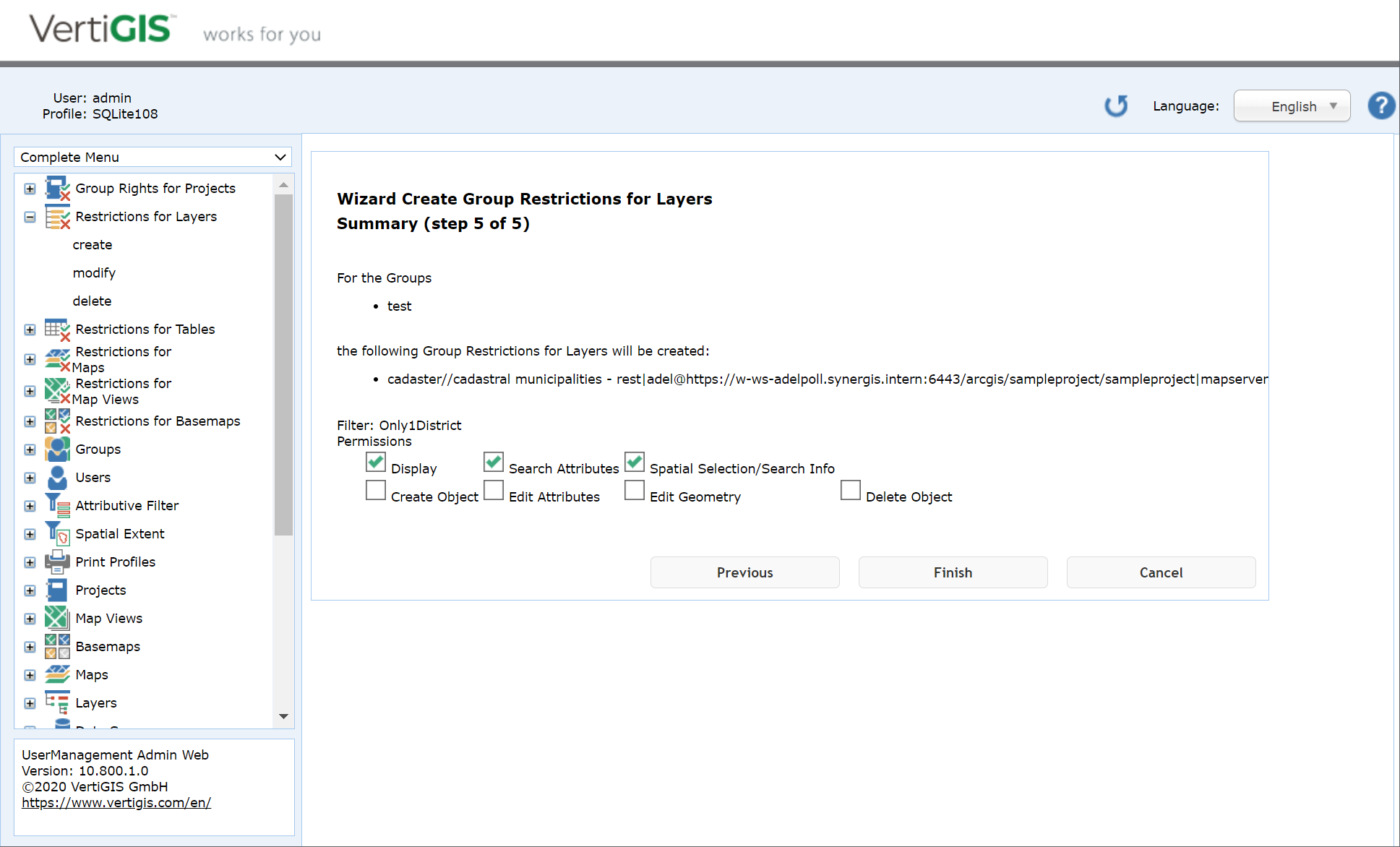

Create group restrictions for layers  - step 5 summary

Create group restrictions for layers  - step 5 summary



icon_cross-reference

•See chapter Groups for details about the creation of groups in UserManagement Admin Web.

•See chapter Attributive Filter for details about the configuration of attributive filters in UserManagement Admin Web.

•See chapter Reports for details about the available reports in UserManagement Admin Web in order to get an overview about configured restrictions.
