Overview map configuration

Overview map configuration

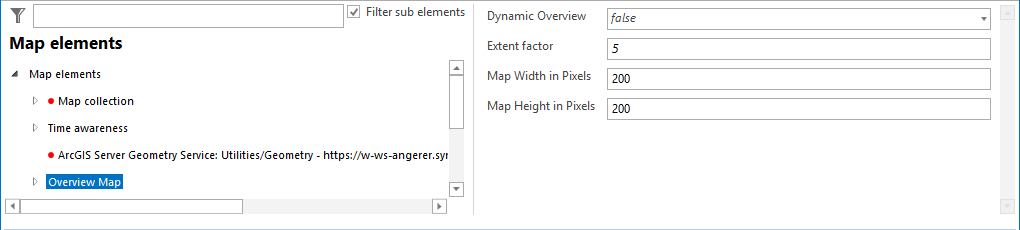

Property

Description

Dynamic Overview

It is possible to configure a dynamic overview map meaning that the overview map will be displayed using the main map extent with a specified extent factor. Therefore, if you zoom into the map the overview map will also zoom in.

Extent factor

Defines the extent factor. The value 5 is set as default.

Map Width in Pixels

Defines the width of the overview map in pixels. The value 100 is set as default.

Map Height in Pixels

Defines the height of the overview map in pixels. The value 100 is set as default.

Overview map properties



icon_comment

If the scale ranges of the layers of the map service are configured, only those layers are displayed in the overview map that are visible in the scale of the overview maps.

Settings for the overview map (Extent etc.) at the printout can also be made directly in the SynPlotService.mxd at the data frame overview.

icon_cross-reference

See chapter Main Map Display for the appearance of the overview map in the WebOffice core client.
