Print, Report and Export Templates

Create a new Print, Report or Export Template or modify an existing one. Use this function if you want to define Restrictions for Print, Report and Export.

First a name and the type of template has to be chosen.

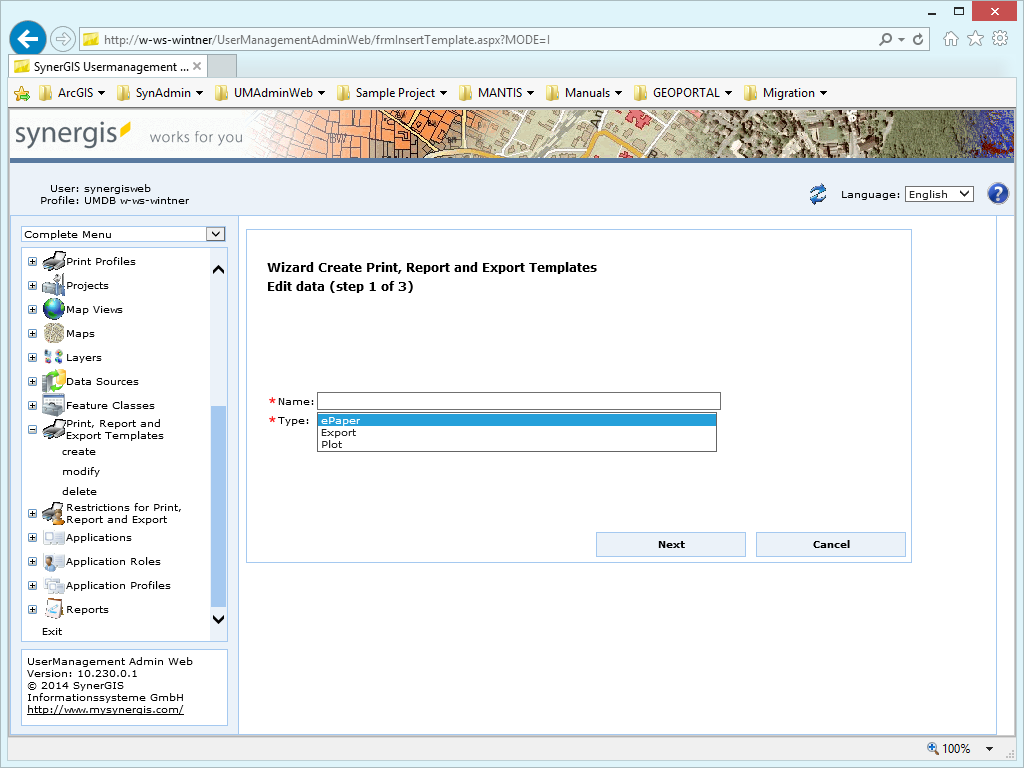

Create print, report and export templates - step 1

Create print, report and export templates - step 1



Property

Description

Name

Specify a name for the template

icon_comment

This field is mandatory.

The name of the template in WebOffice usermanagement has to be the same (without file extension) as the templates/configurations residing in the following directories:

- Plot: <ArcGIS Server location>\directories\WebOfficePlotTemplates

- ePaper: <ArcGIS Server location>\directories\WebOfficeePaperTemplates

- Extract: <ArcGIS Server location>\directories\WebOfficeExport\Configuration

icon_cross-reference

If there do not exist templates in the directories mentioned above, it is necessary to create them first

See plot author User Manual for details about plot templates

See ePaper author User Manual for details about ePaper templates

See extract server User Manual for details about extract configurations

Type

Select the type of template you want to create in UserManagement Admin Web

ePaper

Export

Plot

icon_comment

This field is mandatory.

Create print, report, export templates properties



The second step offers the option to choose a print, export, or ePaper map service. It is optional and in the case of having none selected the template will work with any map service.

icon_comment

It is recommended not to select any map service.

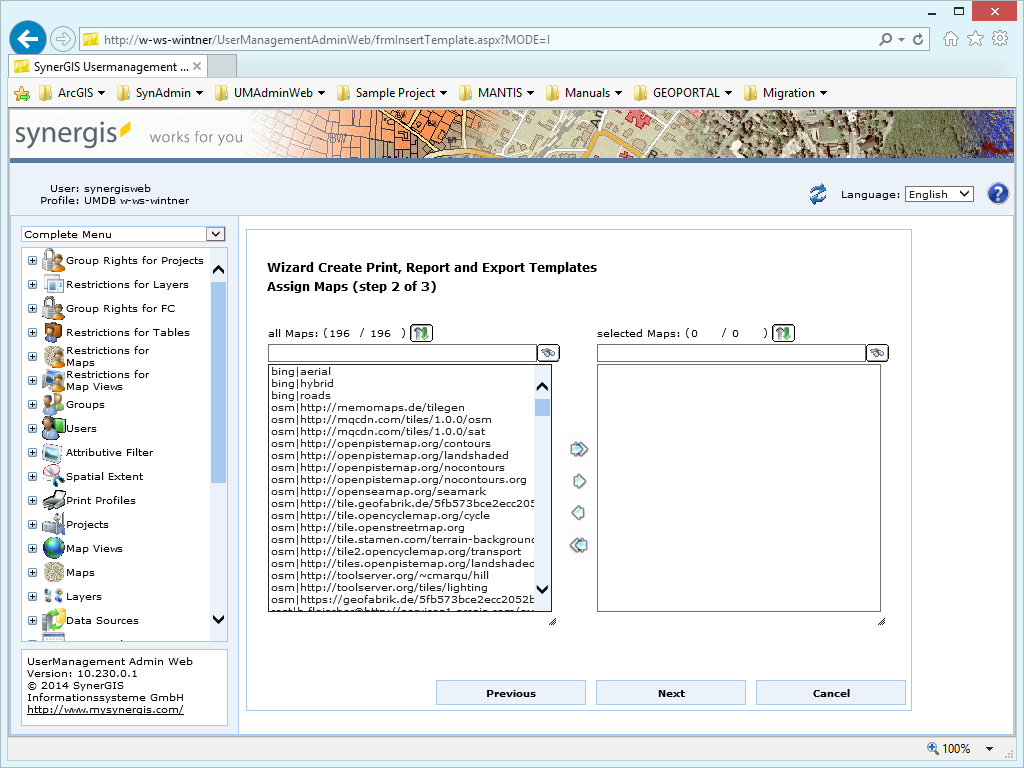

Create print, report and export templates - step 2

Create print, report and export templates - step 2



Finally, a summary provides an overview of the created template for WebOffice usermanagement.

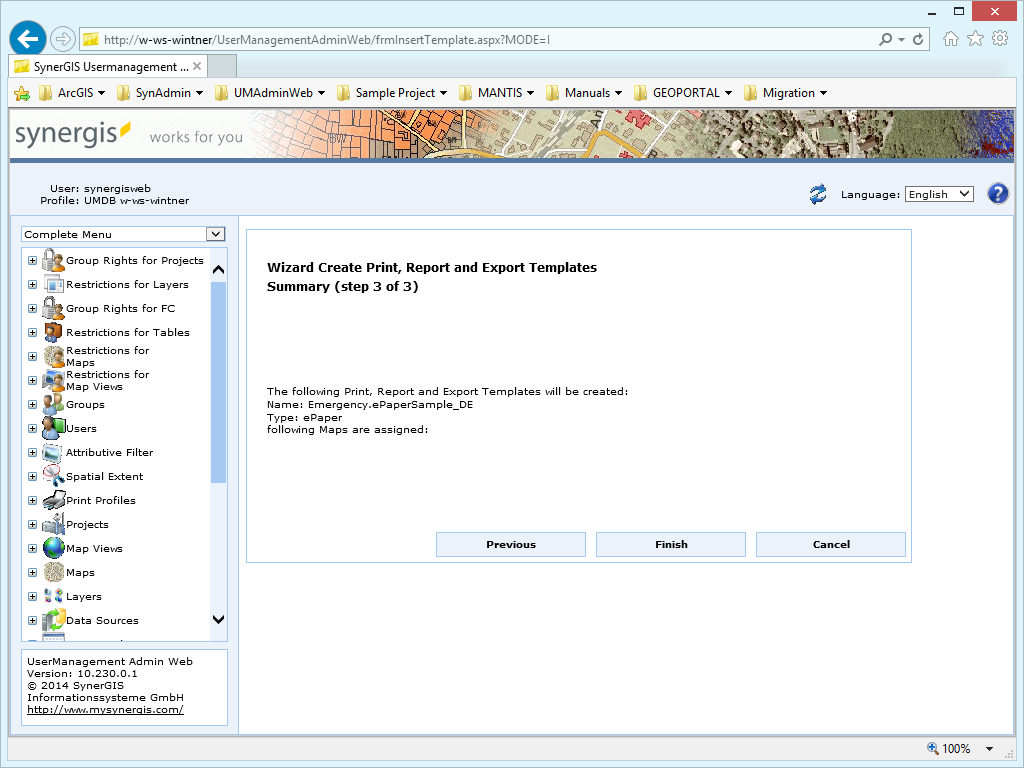

Create print, report and export templates - step 3

Create print, report and export templates - step 3



icon_cross-reference

See chapter Restrictions for Print, Report and Export for details about restricting access for specific templates/configurations.
