In order to select objects by drawing a line please activate the tool Select Line.



Input parameters

Description

Query

External layer ID on the WebOffice 10.9 SP1 query layer.

icon_comment

The layer must be identifiable/selectable.

Return Key

Specifies the field to be returned in the response.

icon_comment

It is possible to select more return keys by using the Ctrl key on the keyboard.

Callback

Specifies the JavaScript callback function.

icon_comment

The callback functions in the Callback.js are reserved for the WebOffice map widget testcontainer. Please ensure to use different notations for your own callback functions in order to avoid complications when calling the JavaScript functions.

set as startmode

By activating the parameter, the tool will be activated initially after the Map Widget update.

show query list

By activating the parameter, a layer selection of all available searches in spatial selection tools (IDENTIFY (Identify)SELECT AREA, SELECT LINE) is displayed.

icon_comment

The prerequisite is that the topics are marked with an external layer ID.

The desired topics for the layer selection must be entered in the selection list Query ID (in the case of the testcontainer) or specified as URL parameters.

The selection in the test container can be achieved by holding down the <SHIFT> or <CTRL> key + selecting with the left mouse button (multiple selection).

All configured search result fields of a search layer are returned (mandatory RETURNKEY is not required for tools in combination with layer selection).

Input parameter - Select Line in WebOffice map widget testcontainer

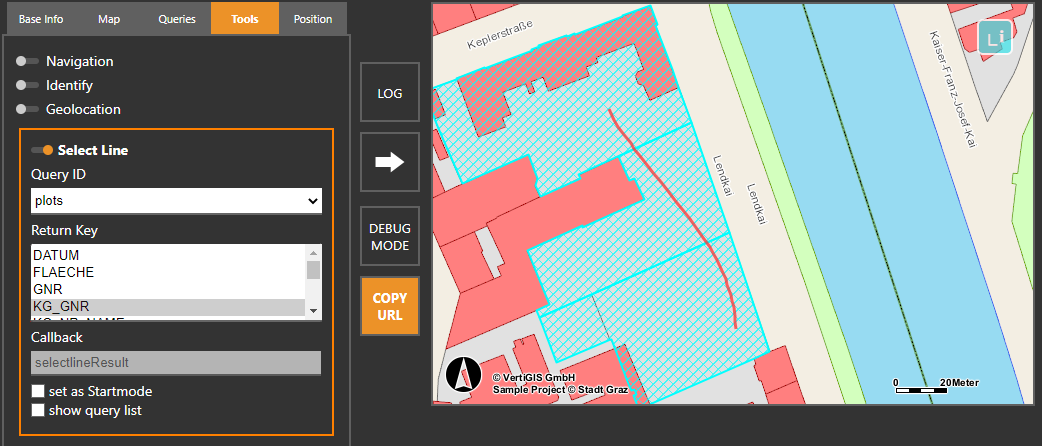

WebOffice map widget testcontainer - Select Line

WebOffice map widget testcontainer - Select Line

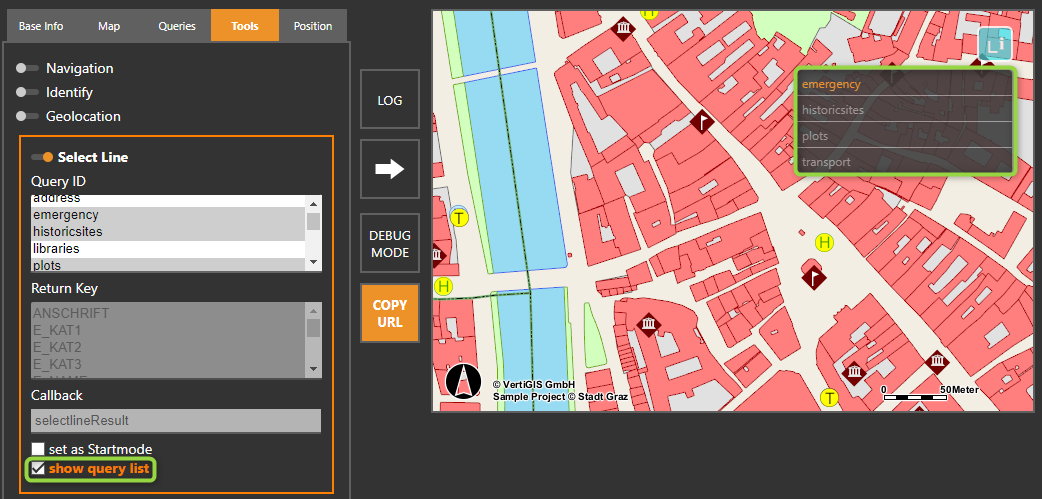

WebOffice map widget testcontainer - Identify with enabled layer list

WebOffice map widget testcontainer - Identify with enabled layer list



icon_cross-reference

Please find more details about the configuration of the selection tool in WebOffice author standalone in the chapter Select Line.
