The WebOffice map widget supports creating point, line and polygon features. In general the WebOffice map widget supports two different kinds of creating features:

•Create via cross hair

•Create via clickmode



Note: For editing existing objects within the WebOffice map widget, please use the tool Edit: Update.



Create via cross hair

By activating the create tool, an edit toolbar will appear in the WebOffice map widget. By panning the map underneath the cross hair and using the Plus button, base points for the features can be set. By using the check button the feature will be created.



Create via clickmode

By activating the create tool, an edit toolbar will appear in the WebOffice map widget. By clicking to a new position in the map and using the Plus button, base points for the features can be set. By using the check button the feature will be created. This option is optimized for creating features on mobile devices via a stylus.



Input parameter

Description

use Snapping-Tool

By checking this parameter, snapping functionality will be available if configured.

set as startmode

By checking this parameter the tool will initially be activated after refreshing the map widget.

set as clickmode

By checking this parameter the tool's mode will change to create via clickmode (instead of create via cross hair).

Edit Layer ID

External layer ID on the WebOffice 10.9 R4 edit layer.

Edit Key Name

Identifies the key attribute of the feature to be created.

Note: The key name is the technical field name (not the alias name) and must be configured as Edit Field.

Edit Key Value

Identifies the key value of the feature to be created.

Note: The value must be escaped correctly.

Edit Return Keys

Identifies the field of the field assignment returned in the response, which was configured in the list of object assignment layers (topological).

Note: It is possible to select more return keys by using the Ctrl key on the keyboard. Make sure that the return key has been configured within the list of object assignment layers (topological).

Callback

Specifies a JavaScript callback function.

Input parameter - Create in WebOffice map widget testcontainer

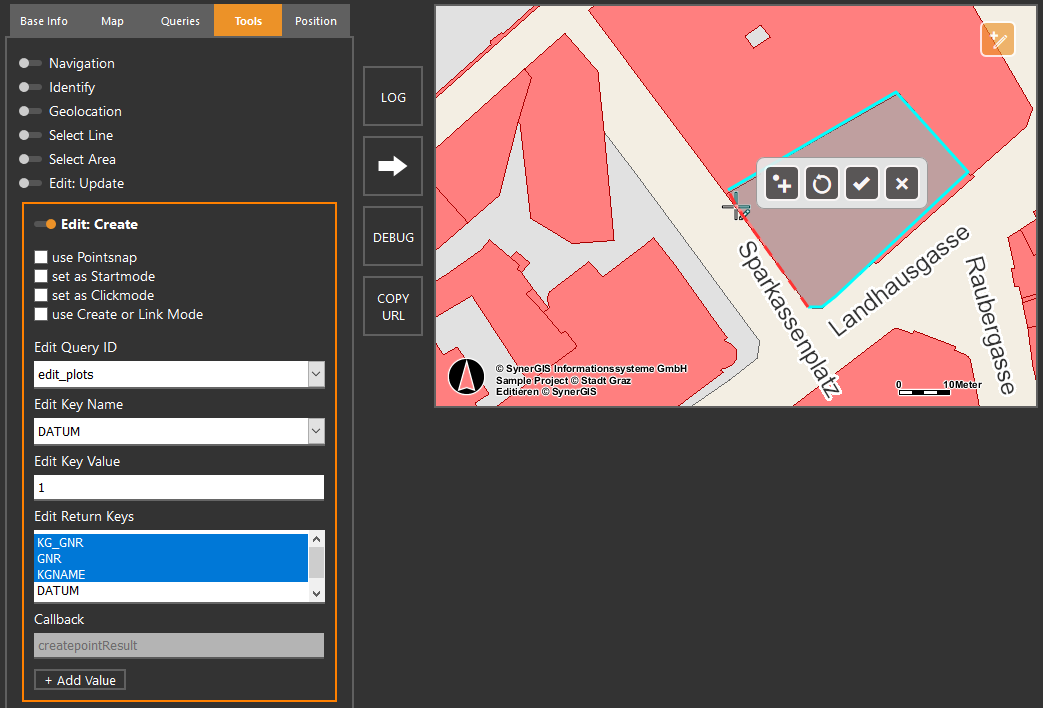

WebOffice map widget testcontainer - Create

WebOffice map widget testcontainer - Create





Note: When pressing the buttons Add Value"/"Remove Value the create action is extended/reduced with additional edit fields. By using this option also attributes of features can be edited.

Note: Please use the value nullvallue or syndbvoid when creating empty values, further details see Editing in Service API.

Note: Please find more details about the configuration of editing in WebOffice author in the chapters Editing and Edit Layers.

Note: Please find more details about the configuration of snapping in WebOffice author in the chapter Snap Layers.
