The parameter activetools=IDENTIFY_CLICK shows the Identify tool (via freely selectable click point).



icon_comment

The pixel tolerance for the IDENTIFY_CLICK tool can be configured in the WebOffice default values.

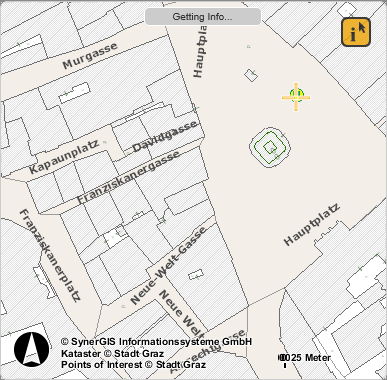

Identify in WebOffice map widget

Identify in WebOffice map widget



By clicking a feature on the map it can be selected for identify. If a feature is found, in the upper part of the WebOffice map widget the text Getting Info... appears and the response of the selected feature is passed to the callback function. This option is optimized for identifying features on mobile devices via a stylus.



The following parameters are needed in order to identify features in WebOffice map widget:



Input parameters

Description

query_identify_mw

External layer ID on the WebOffice 10.9 R3 query layer.

icon_comment

The layer must be identifiable/selectable.

returnkey_identify_mw

Specifies the field to be returned in the response.

icon_comment

It is possible to use several returnkeys separated by semicolon ;. Please ensure to configure the returnkey as Result Field of the Geolocator query.

callback_identify_sl

Specifies the JavaScript callback function.

startmode=IDENTIFY (optional)

By activating the parameter, the tool will be activated initially after the Map Widget update.

icon_comment

The parameter startmode can only be used with one single tool.

show_querylist_identify=true

Activating the parameter displays a layer selection of all available searches in spatial selection tools (IDENTIFY, SELCT AREA, SELECT LINE).



Example:

http://w-ws-schmoelz/WebOfficeLatest/client_mapwidget/default.jsp?baseURL=http://w-ws-schmoelz/WebOfficeLatest&project=WebOffice_SampleProject&width=385&height=377&view=poi_cadaster&combined_req=true&map_adv=true&activetools=IDENTIFY_CLICK&query_identify_mw=transport&returnkey_identify_mw=E_KAT1&callback_identify_sl=parent.identifyResult
