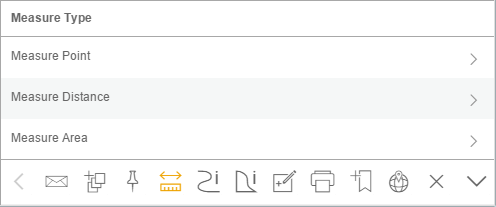

With the WebOffice mobile client it is possible to measure points, distances and areas. If the tool is configured in the WebOffice 10.9 SP1 project configuration the respective button will appear in the lower segment of the toolbar. By pressing the Measure button a new dialog provides the option to choose the measure type, which is measuring either a point, a distance or an area. As soon as markup styles are configured, they are accessible in the measure type dialog and can be distinguished via their description inside the brackets.



Measure in the WebOffice mobile client - tablet mode

Measure in the WebOffice mobile client - tablet mode



After selecting one of the available measure types, a tool bar with measure functions (incl. cross hairs) appears in the center of the map.



Measure context menu

Measure context menu



Icon

Menu Item

Description

Adds a base point

Adds a base point

Add Vertex

Add a vertex to the specified location

Activates a snap

Activates a snap

Toggle Snapping

Snapping function allows accurate measuring

One step back

One step back

Undo

Remove the last base point

Cancels the measuring

Cancels the measuring

Cancel Measure

Cancel the whole measuring process

Finishes the measuring

Finishes the measuring

Finish Measure

Finish the measure

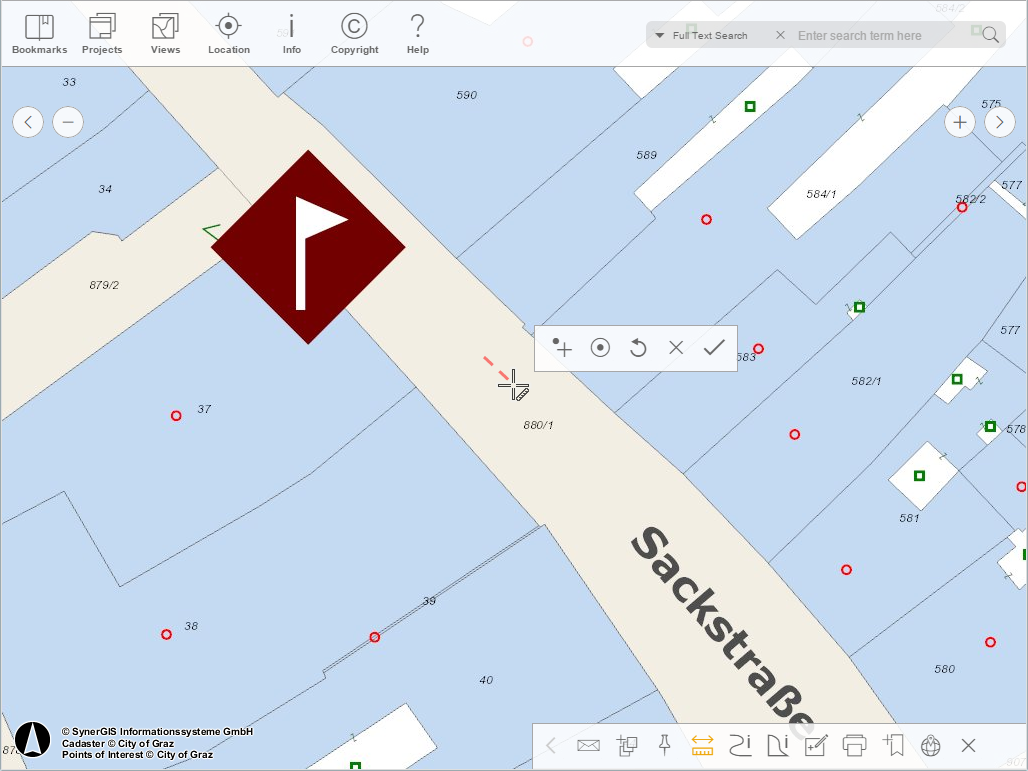

Move the map under the cross hair to set the first base point.



Activated measure tool in the WebOffice mobile client - tablet mode

Activated measure tool in the WebOffice mobile client - tablet mode

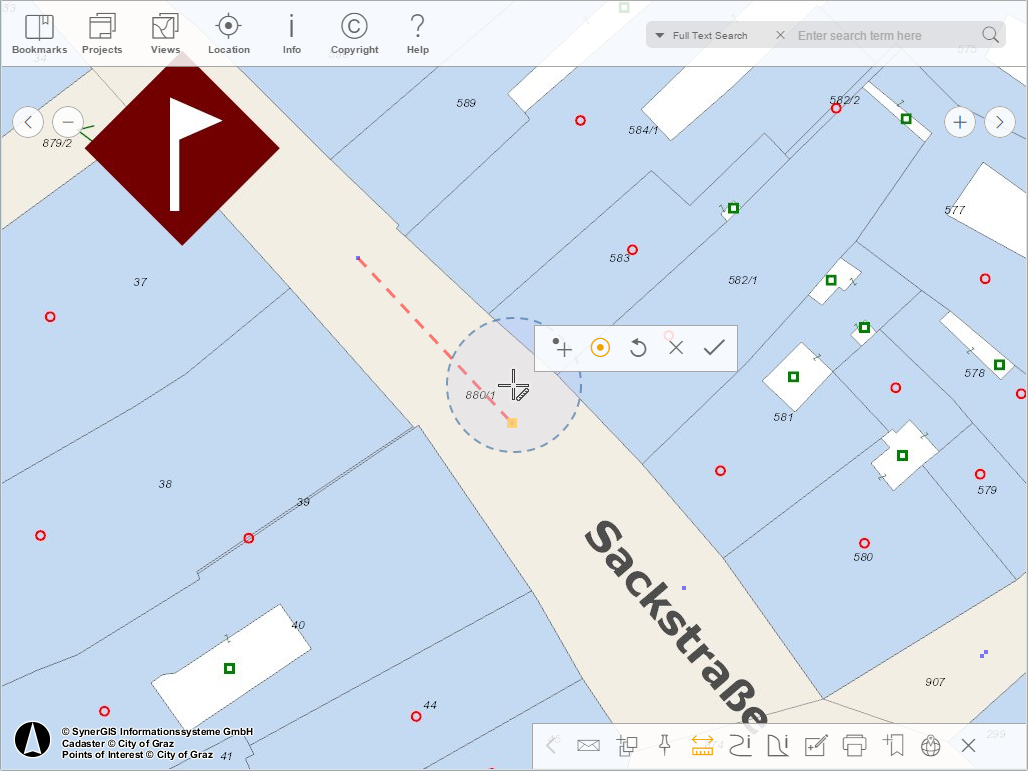

Activated snapping in the WebOffice mobile client - tablet mode

Activated snapping in the WebOffice mobile client - tablet mode

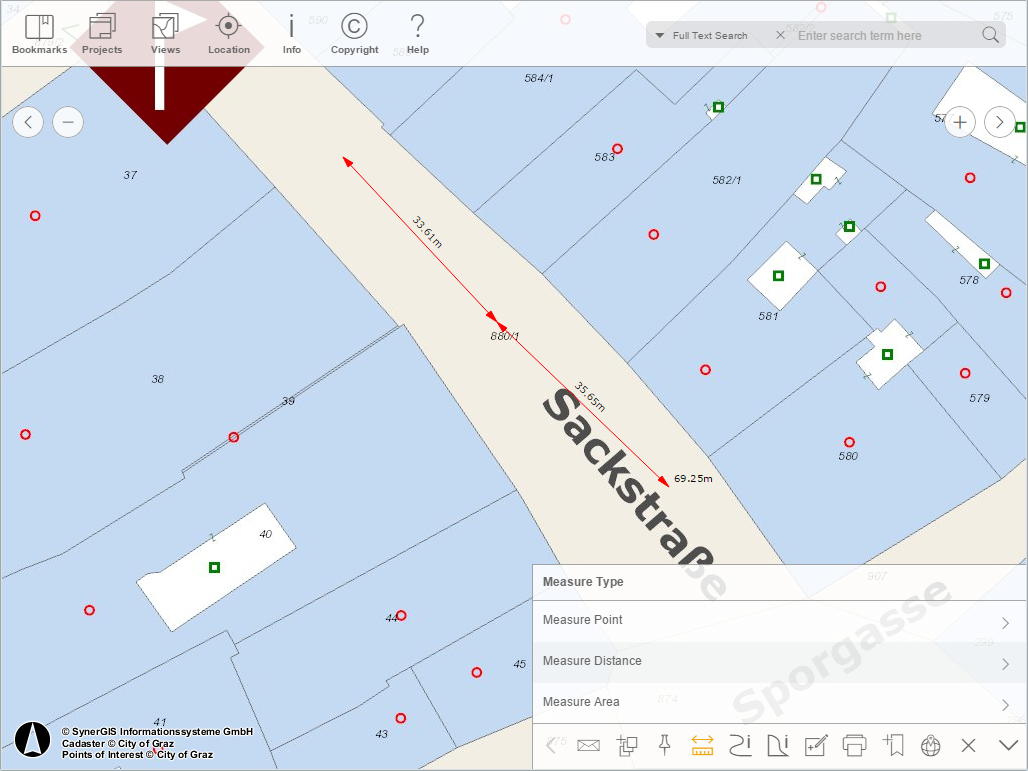

Finished measure in the WebOffice mobile client - tablet mode

Finished measure in the WebOffice mobile client - tablet mode



Note: For details regarding the configuration of the Measure tool components, please go to chapters Measure Point, Measure Distance or Measure Area.

Note: For details regarding the configuration of markup styles, consider chapter Markup Style.

Note: WebOffice mobile client will automatically display the default units. They can be configured in Measure Units.
