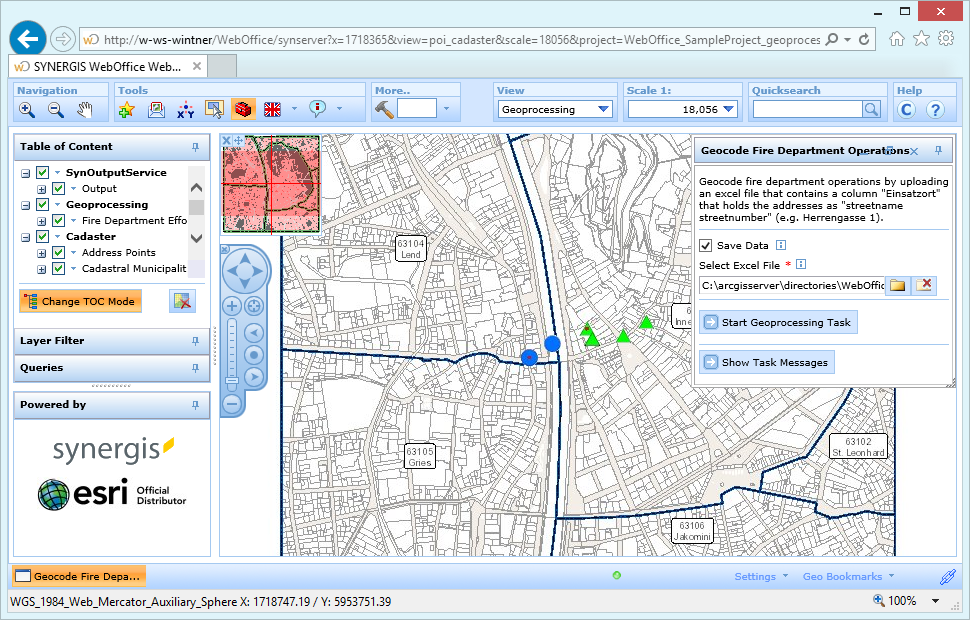

Using the Geoprocessing tool it is possible to utilize spatial analysis in the WebOffice html client. Depending on the prepared geoprocessing tool one or more input parameters can be defined before the button Start Geoprocessing Task executes the geoprocessing task. Supported input types are

•text input field

•checkbox

•value list

•date field

•file upload

Note: For details about the various input types, please see HowTo chapter Prepare a Geoprocessing Service.

Note: Wheter ann input parameter is visible/changeable for the user depends on the configuration of the Geoprocessing Input Parameter in WebOffice author.



The parameter description that has been defined during the geoprocessing service publishing process can be accessed by moving the mouse on the button. A * marks a mandatory parameter that has to be filled before being able to start the geoprocessing task.

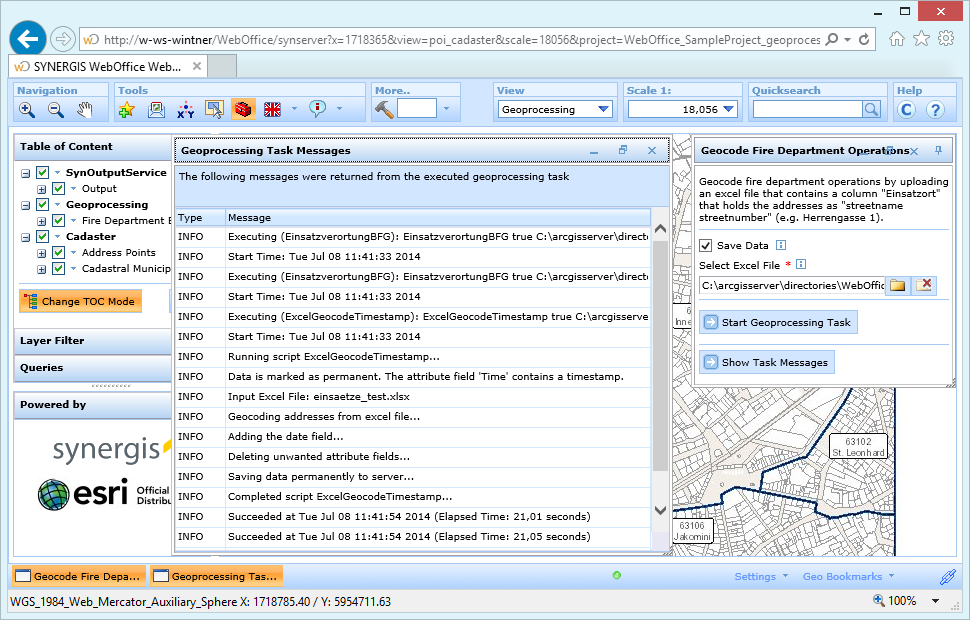

After the geoprocessing task has been successfully executed, a temporary layer will be added to the table of content that is available until the session end. Depending on the Message Level of the Geoprocessing Service, the button Show Task Messages provides all messages that were returned to the WebOffice html client.







Note: See chapter Geoprocessing for details about the tool configuration in WebOffice author.

Note: See chapter ArcGIS Server Geoprocessing Service for details about the configuration of the geoprocessing service in WebOffice author.

Note: See chapter Geoprocessing Input Parameter for controlling input parameters.

Note: See HowTo chapter Prepare a Geoprocessing Service for information about preparatory steps to use geoprocessing in WebOffice 10.9 R4.

Note: See HowTo chapter Integrate Geoprocessing for information about passing parameters from selected features to a geoprocessing tool.
