Geoprocessing Input Parameter

Define a Geoprocessing Input Parameter to provide a default value for a specific geoprocessing parameter.



icon_cross-reference

This chapter only refers to the configuration of the Geoprocessing tool in WebOffice author standalone. See HowTo chapter Prepare a Geoprocessing Service for information about the parameters supported by WebOffice 10.9 SP1.

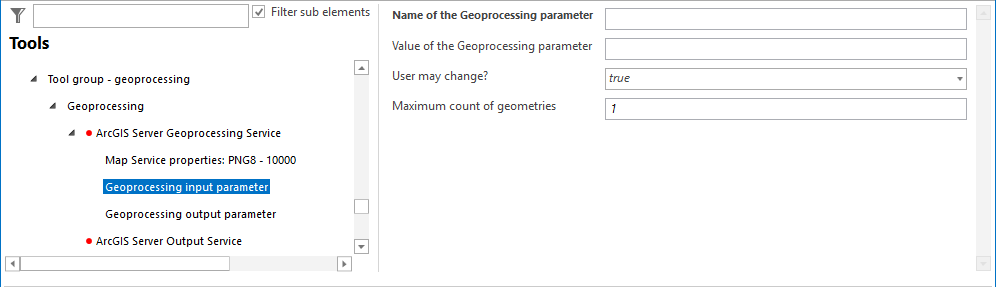

Geoprocessing input parameter configuration

Geoprocessing input parameter configuration



Property

Description

Name of the Geoprocessing parameter

Name of the Geoprocessing input parameter which should be pre-initialized with a given value.

icon_comment

Open the geoprocessing task REST URL in a browser in order to identify available geoprocessing parameters easily. Example: http://<myserver>/ArcGIS/rest/services/<my Service>/GPServer/<geoprocessing task>

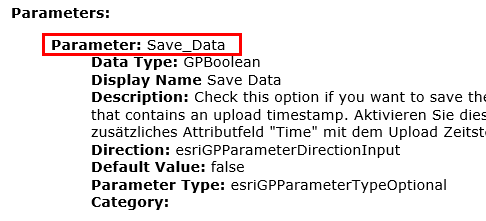

Identify geoprocessing parameter name in the ArcGIS REST services directory

Identify geoprocessing parameter name in the ArcGIS REST services directory

Value of the Geoprocessing parameter

Value of the Geoprocessing input parameter which should be pre-initialized.

icon_comment

If the WebOffice usermanagement is used, the user can specify the logged in user of the Geoprocessing Tool. Use the entry <%user%> to specify the setting. In this case the recommended settings should contain to set the parameter user may change? of false. With this settings the user will be hided transferred to the Geoprocessing Tool.

User may change?

Specifies whether the user may change or set the input parameter value.

Maximum count of geometries

If this is a geometry input parameter, this value defines the maximum count of input geometries.

Geoprocessing input parameter properties



icon_comment

A Geoprocessing Service can also contain multiple input fields of type geometry. If configured in WebOffice author standalone, the available input fields can be chosen from a drop-down-list in the WebOffice core client.

icon_cross-reference

See chapter ArcGIS Server Geoprocessing Service for details about the configuration of the ArcGIS Server Geoprocessing Service in WebOffice author standalone.

See chapter Geoprocessing for details about the tool configuration in WebOffice author standalone.

With WebOffice 10.9 SP1 it is possible to pass parameters dynamically to the geoprocessing tool. See HowTo chapter Integrate Geoprocessing for details.
