xPlanung is the name of an (german) e-government project that created a object-oriented data exchange format. It is used to retrieve and display information provided by this data in a user-friendly user interface. Follow the steps of this chapter to see how to configure the XPlanung in WebOffice 10.9 SP1.



icon_comment

This functionality is only supported in the WebOffice core client.



Prerequisites

All features of the geodatabase possess the following attribute fields

oGMLID (ID of the feature)

oPLANID (ID of the plan that is linked with the feature)

oFEATURETYPE (object type)

The XML file has to be named [PLANID].xml

For every plan there exists an XML file with the attribute information of all features

By using the field PLANID and the name of the XML file, the appropriate XML file can be found

The XML file has the following style

<Features>

 <PlanName>

 <Plantype>

 <Feature>

         <OID>

         <GMLID>                                » This is the reference to the feature in the feature class

         <PlanId>                                » Together with the GMLID the feature in the feature class can be identified

         <SimpleClassData>

                 Describes the data, with different types of display

                 Data can be extremley nested, it always ends with a name/value pair

                 <SimpleData>                » contains name/value; basic attribute in textbox style

                 <ArrayData>                        » can itself contain several types; enclosed data has to be indented

                 <ExtraSimpleClass>        » can itself contain several types; enclosed data has to be indented

                 <EnumLookupData>                » contains name/value; value lists; important for editing

                 <CodelistLookupData>        » like <EnumLookupData>; contains name/value

                 <FakeClassData>                » can itself contain several types; enclosed data has to be indented

                 <SimpleDataBoolean>        » contains name/value; checkbox



Configuration in WebOffice 10.9 SP1

1.Check whether the file xPlanung.jsp exists in C:\Tomcat\webapps\<WebOffice application>\pub\custom_pages\. If it does not exist, copy the file from WebOffice10.9-DVD.

2.The XML files have to be accessible via web server. Create a virtual directory that points to the folder where the data is saved.

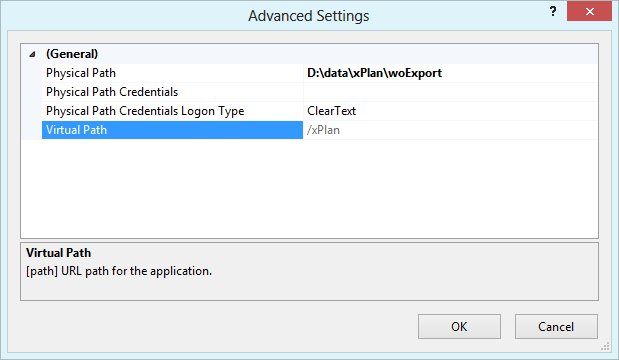

Virtual directory in IIS that points to xPlan data

Virtual directory in IIS that points to xPlan data



3.Publish the xPlanung data in a map service and add it into your WebOffice 10.9 SP1 project.

4.Configure a Search Result View for the respective layer(s) that contains the three result fields GMLID, FEATURETYPE, PLANID



Search result view with the three important xPlanung fields

Search result view with the three important xPlanung fields



5.Configure an Integration (Call FROM WebOffice) with the correct base URL and a key set of separated parameters

Base URL: pub/custom_pages/xPlanung.jsp?path=http://<myserver>/<xPlanung virtual directory>

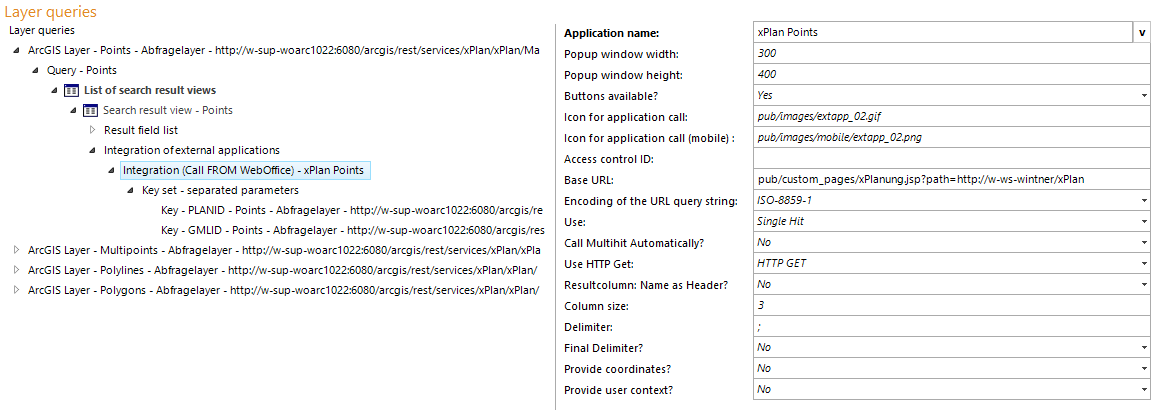

Integration (call from WebOffice) used to retrieve and display the xPlanung data

Integration (call from WebOffice) used to retrieve and display the xPlanung data



1.Key: PLANID (HTTP parameter name: PlanId)

2.Key: GMLID (HTTP parameter name: GmlId)



Key of separated parameters - PLANID, GMLID

Key of separated parameters - PLANID, GMLID



Now it is possible to select features of the xPlanung layers and open hyperlinks that show the xPlanung data in the standardized form



WebOffice - xPlanung Auskunft in the WebOffice core client

WebOffice - xPlanung Auskunft in the WebOffice core client
