This Custom Tool allows users to create addresses to GWR (register of buildings and residence). By clicking in the map a property will be identified and the key (KG_GNR) and coordinates of the main map service (rounded to metres) will be applied to the Syn URL Integrator in the following format:

<GSTNR>|X|Y



icon_comment

By using the parameter projectionid, the click coordinates can be reprojected.



The tool's parameters have to be configured on the one hand in the form of the custom tool and on the other hand in the WebOffice 10.9 SP1 project configuration. The Custom Tool is located in C:\Tomcat\webapps\<WebOffice application>\pub\custom_tools\GWR.



(1) Configuration in the form

The following variables can be adapted in the form (gwr_integrator.jsp):

integratorUrl: synintegrator:target=KIMVerfahren&GSTNR= … URL to the custom tool's parameters in

projectionParam: this parameter holds the internal projection id (can be found in the xml file)

cordsAsInteger: false … if true, the coordinates will be applied as integer

paramSplitter: | … delimiter for the parameters

msgHelp: Bitte klicken Sie in die Karte, um eine Adresse zu verorten. … Help text when opening the custom tool

msgFound: Die Adresse und Position wurde übermittelt. … Info message, if one object has been found and applied to the URL

msgNotFound: Achtung: An dieser Position wurde kein Grundstück gefunden! … Info message, if no object has been found

msgTooManyFound: Achtung: An dieser Position wurden mehrere Grundstück gefunden! … Info message, if more than one objects have been found

msgPojectionError: Beim Umprojizieren der Koordinate ist ein Fehler aufgetreten ... Info message, if coordinates could not be reprojected

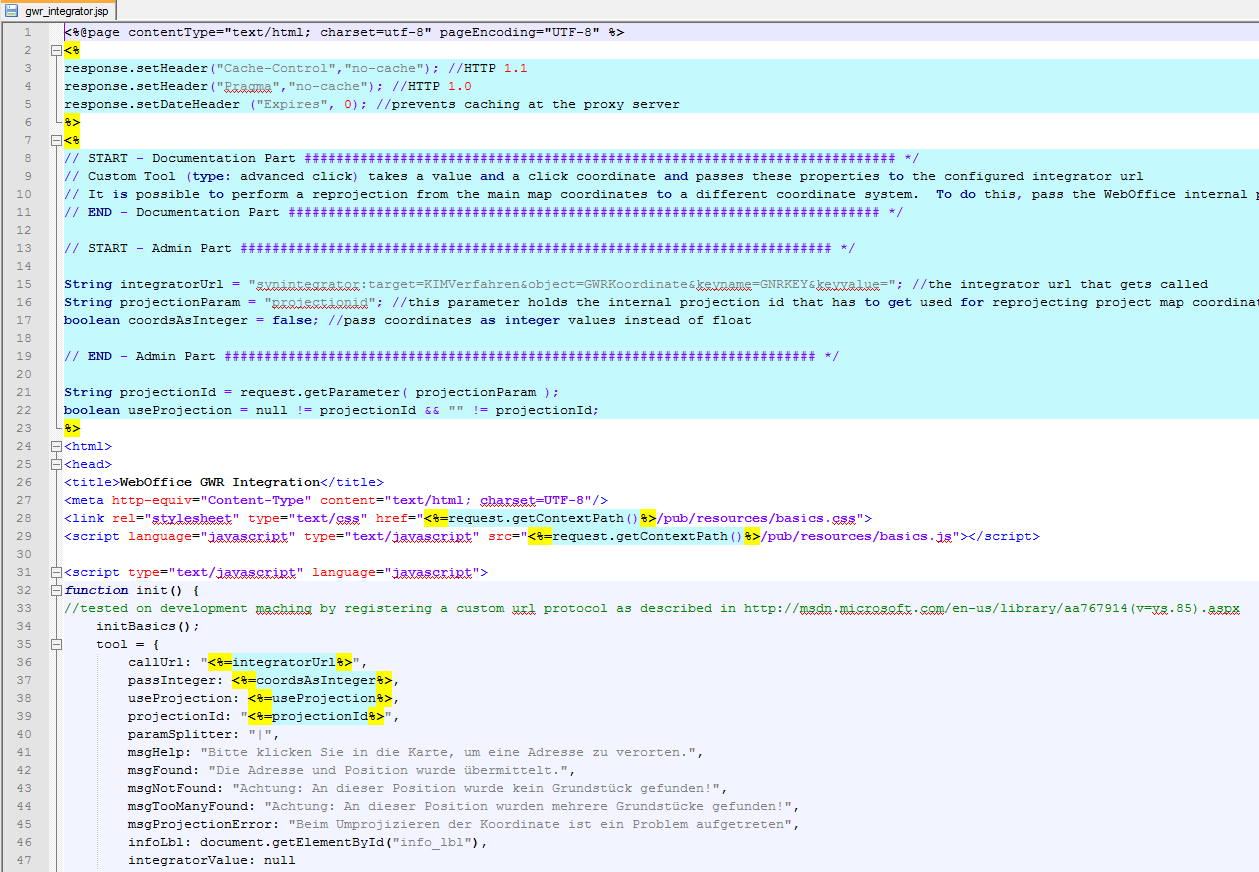

Tool form gwr_intergrator.htm

Tool form gwr_intergrator.htm



(2) Configuration in WebOffice 10.9 SP1 project

The custom tool is configured as generic tool (with click point) in the WebOffice 10.9 SP1 project.



Web-Integration - generisches Werkzeug

URL of external page: pub/custom_tools/GWR/gwr_integrator.jsp
the internal projection id from the XML can be applied via the parameter projectid

Tool tip: GWR integrator

Pass mode: JavaScript

Pass user context: No

Provide snap functionality: No

JavaScript function: callFromWO

Tool icon: pub/custom_tools/GWR/customtool_gwr.png

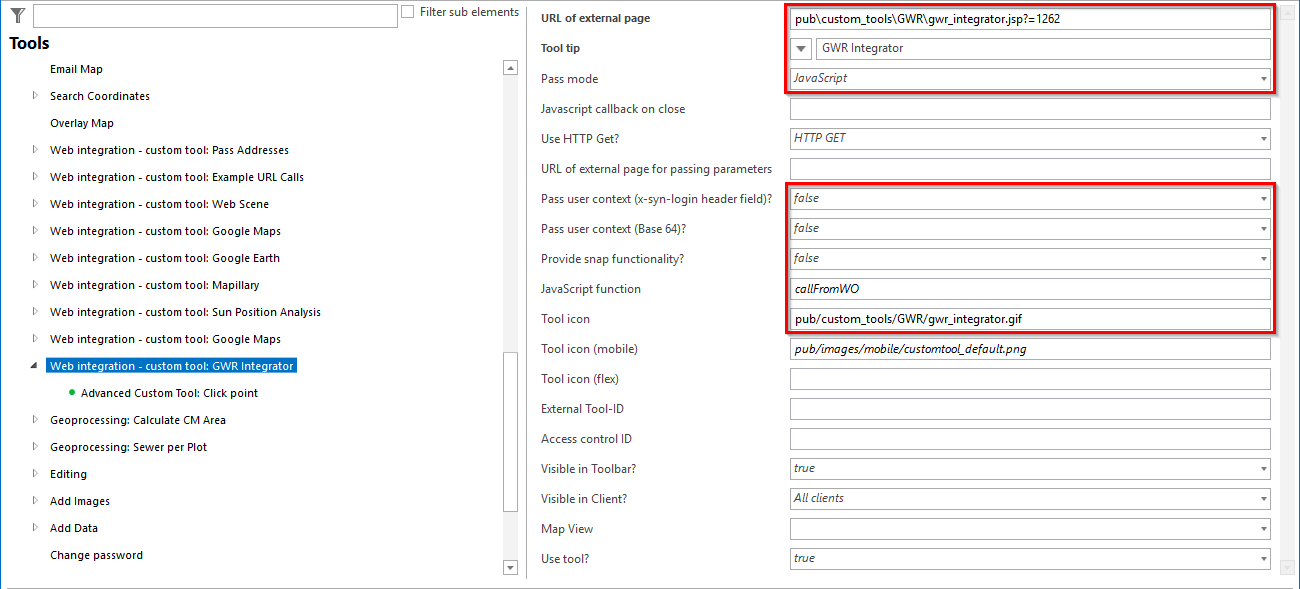

GWR integrator Web integration

GWR integrator Web integration

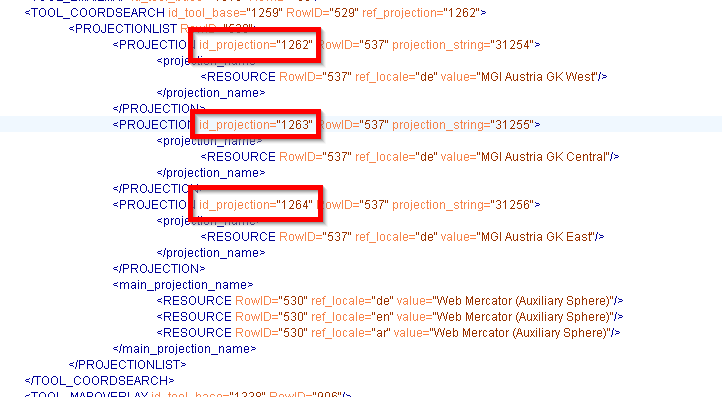

projectionParam from the project XML

projectionParam from the project XML





icon_comment

When deleting the node List of Projections or single projections in the configuration of the tool Search Coordinates, the internal ID of the projection can change from the XML file and must be adjusted accordingly under the option URL of external page.



Advanced Custom Tool

Layer: Reference to the properties layer

Key field: Reference to the key field

Tool mode: Click point

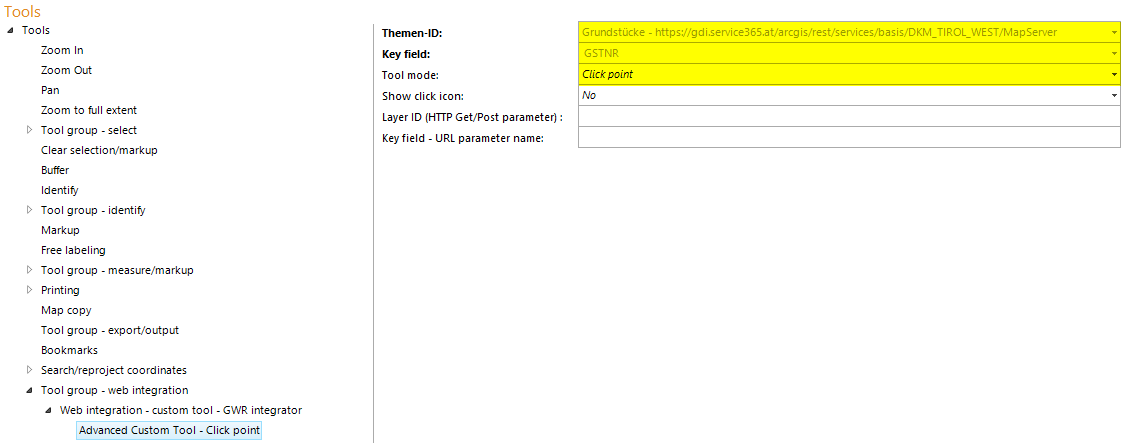

GWR integrator Advanced Custom Tool

GWR integrator Advanced Custom Tool



(3) GWR integrator in the client

GWR integrator needs a click in the map:

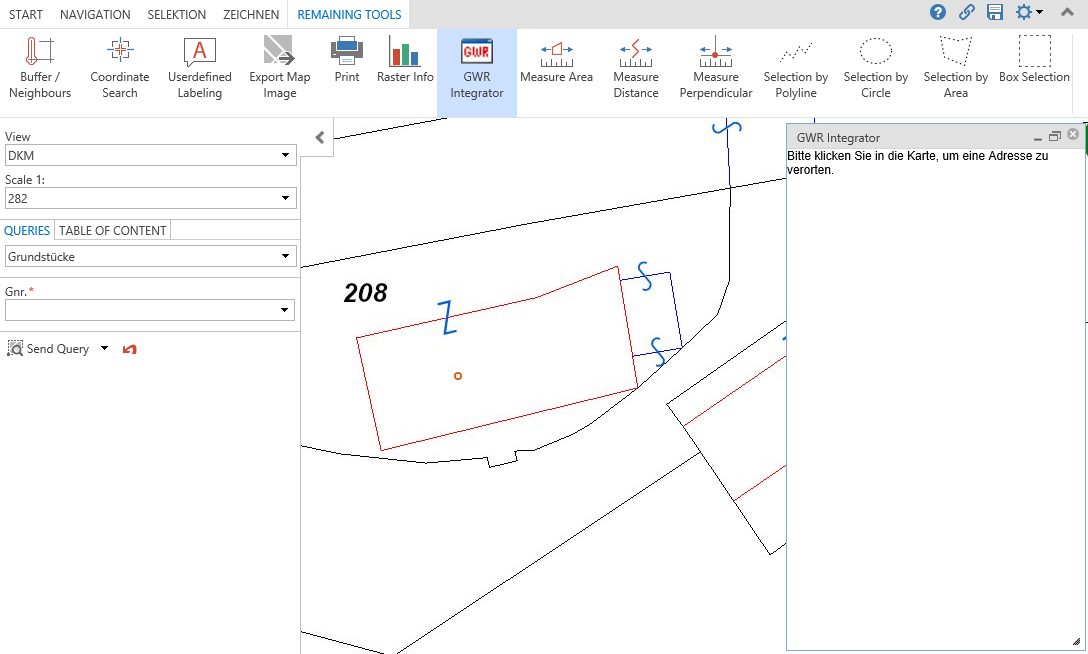

GWR integrator Custom Tool

GWR integrator Custom Tool



If more properties have been found, the integrator will not be called:

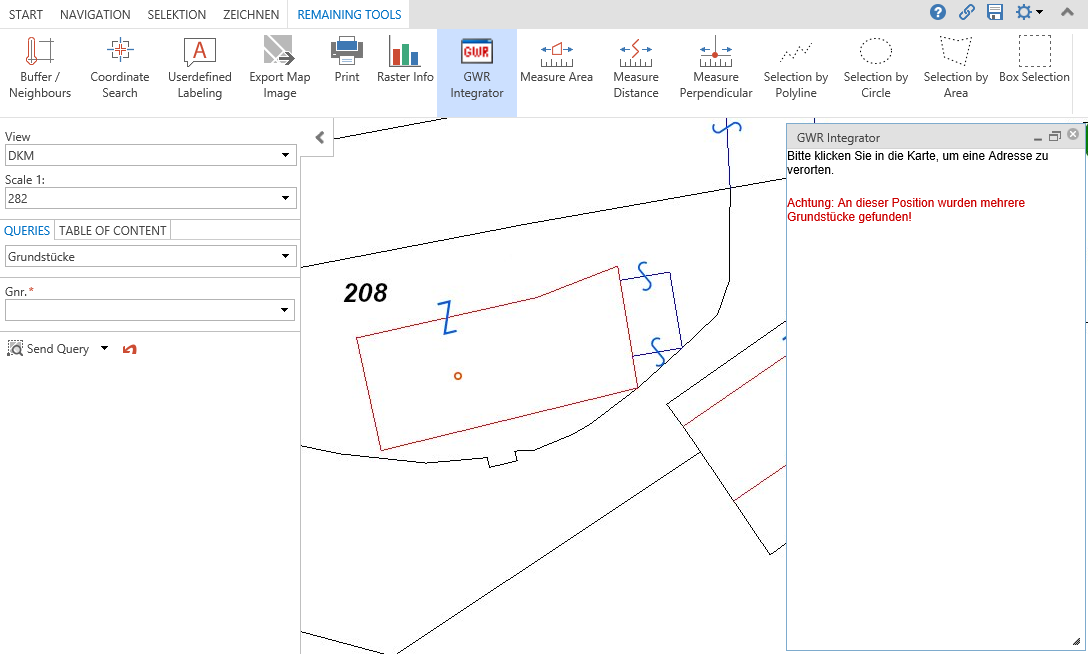

GWR integrator with more properties

GWR integrator with more properties



If one object has been found, the address and the position will be applied to the integrator:

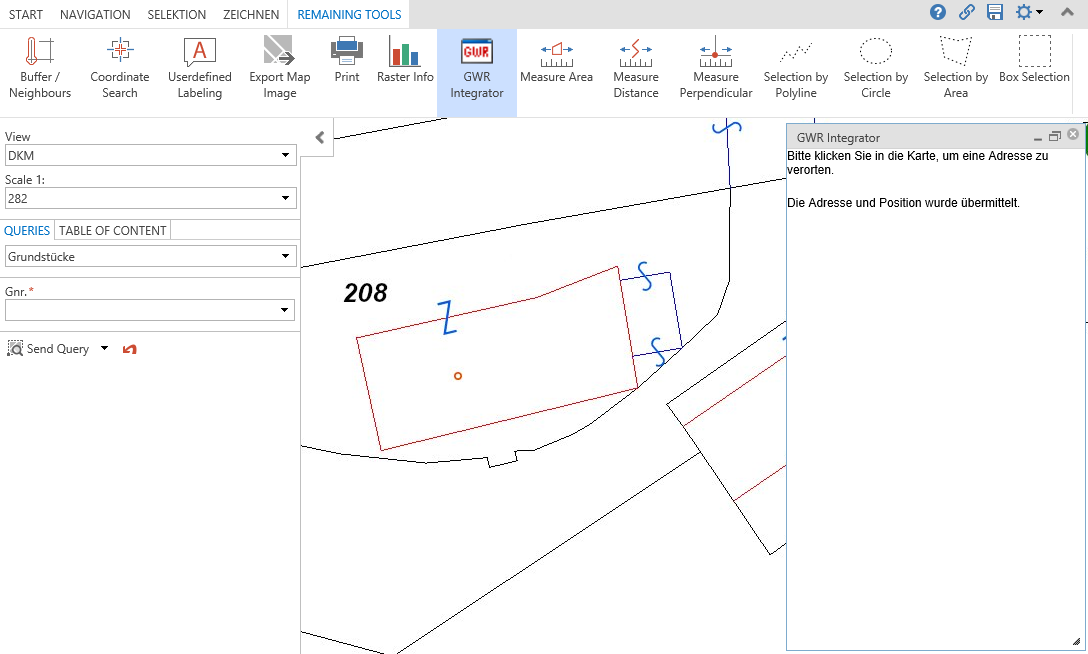

GWR integrator with one object

GWR integrator with one object



icon_cross-reference

See chapter Web Integration - Custom Tool for details about the configuration of custom tools in WebOffice author standalone.
